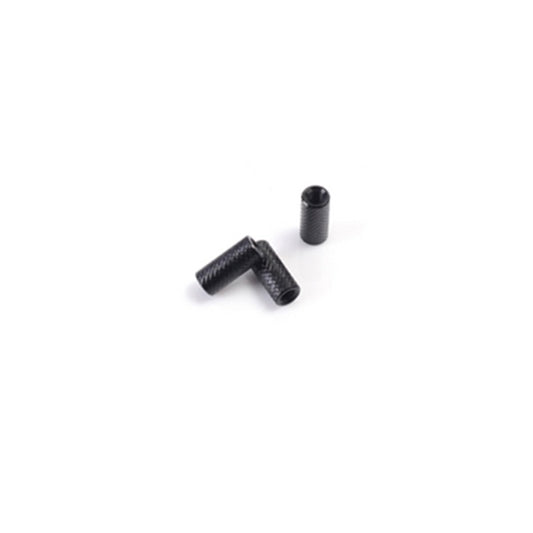

Description: Brand: Diatone  Item name: M2*8mm Two-way Knurled Aluminum Standoff Color: black Quantity: 10pcs / bag Usage: for Diatone 2018 GT-R90 FPV Racing Drone   Package included: 10 x M2*8mm Two-way Knurled Aluminum Standoff

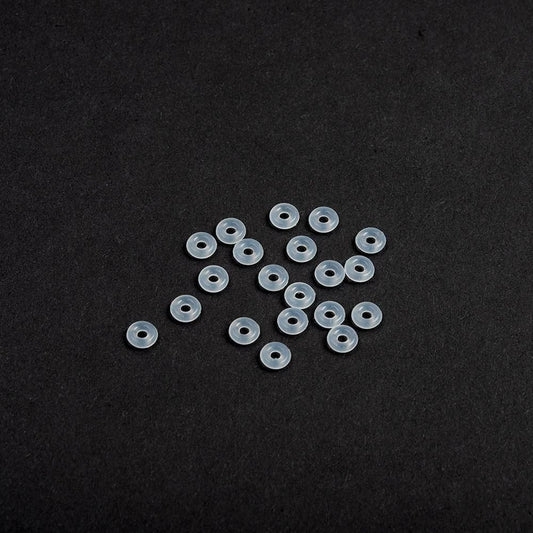

Name M3 Silicone White Ring   20 pcs/pack Compatible Part   30*30 MAMBA Stack Describe Suitable for isolation and fixed  30*30mminclude：M3 white silicone ring *20

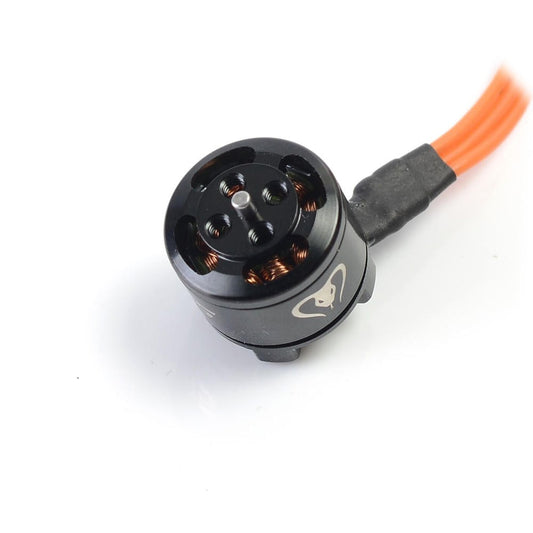

MAMBA 1105 5500KV 2-4S Brushless Motor For Diatone GT R239 R249 R249+ FPV Racing RC Drone  Description:Brand name: MAMBA Item name: 1105 5500KV brushless motorVoltage: 2-4S (8.4V-16.8V)                                       ...

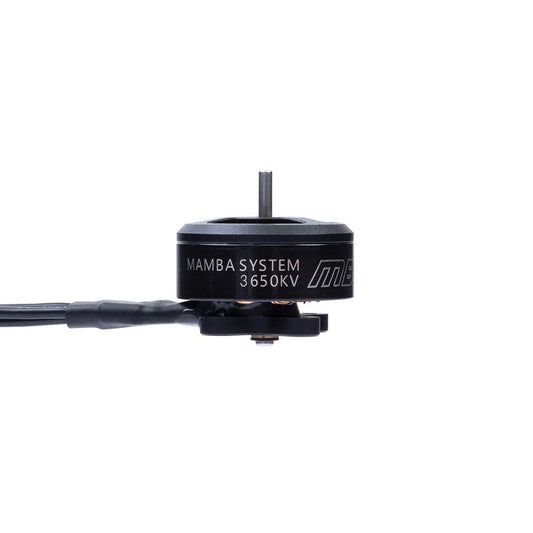

SPECIFICATION： MAMBA 1404 3650KV BRUSHLESS MOTOR Overall Dimension: Φ19×12.5mmShaft Diameter:1.5mmInstallation hole position:12×12mm，M2Prop: 2.5inch~3inchBearing： 5*2*2.5Shaft Diameter:2mmLead Wire Size：24AWG ×150mmConfiguration:9N12PMagnet Wire: Class H，180℃ Enameled WireStator Diamter：14mmStator Height:4mmRated Voltage: 3~6S (12.6V~25.2V)Peak Current: 17.6AMaximum Power: 443.4W

MAMBA 1404 5000KV BRUSHLESS MOTOR Overall Dimension: Φ19×12.5mmShaft Diameter:1.5mmInstallation hole position:12mm x 12mm M2Prop: 2.5inch~3inchBearing： 5*2*2.5Shaft Diameter:2mmLead Wire Size：24AWG ×150mmConfiguration:9N12PMagnet Wire: Class H，180℃ Enameled WireStator Diamter：14mmStator Height:4mmRated Voltage: 3~4S (12.6V~16.8V)Peak Current: 19.4AMaximum Power: 323.7W

Description:Brand name: DIATONEItem name: Mamba 1408 4000 / 2800  KV brushless motorStator diameter: 14mmStator thickness: 8mmNo.of stator arms: 9No.of stator poles: 12Motor KV: 2800KVVoltage：2800KV 6SWeight: 18gOutside diameter: 18mmBody length: 29.7mm Package included:1 x Mamba 1408 2800KV brushless motor

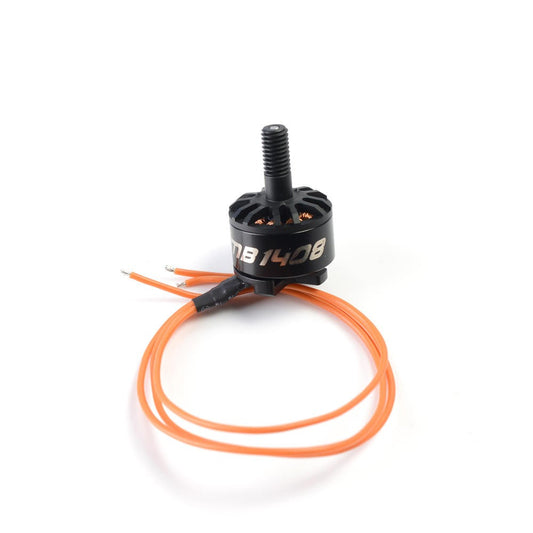

MAMBA 1408 4000KV 3-4S Brushless Motor For Diatone GT R349 FPV Racing RC Drone  Description:Brand name: MAMBA Item name: 1408 4000KV brushless motorVoltage: 3-4S                                             ...

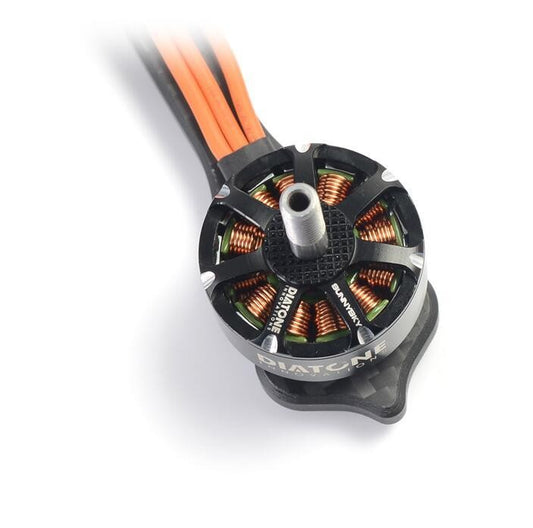

MAMBA 2308 1950KV 4-6S CW Thread FPV Racing Brushless Motor for RC DroneSpecification:Brand name: MAMBAItem name: Edge 2308 1950KV Brushless MotorKV: 1950 (rpm/V)ESC: 30-50ACW screw threadsRecommended prop (inch): 5x4x3 / 5x4.5x3  /6x4.2x3Package Included:1 x 2308 1950KV Brushless Motor

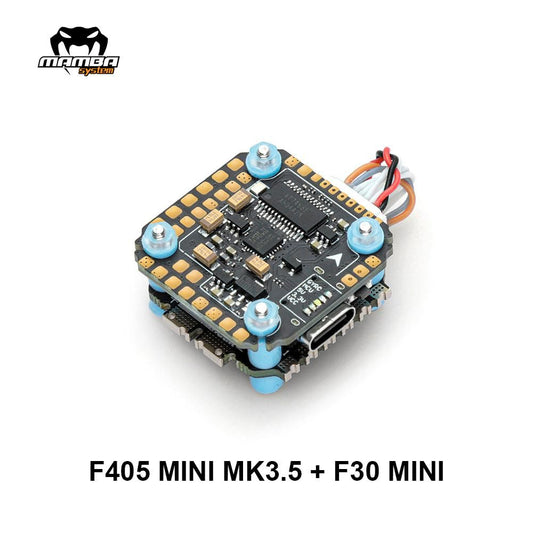

MAMBA Stack Basic F405 Mini MK3.5 30A 5S 8bitDiagram Link From Help Centre LinkFixed Add I2C function When you connect the USB, the receiver and OSD settings can be saved Increase the pad area LED signal selection （when Mamba Led sys available） BEC short circuit...

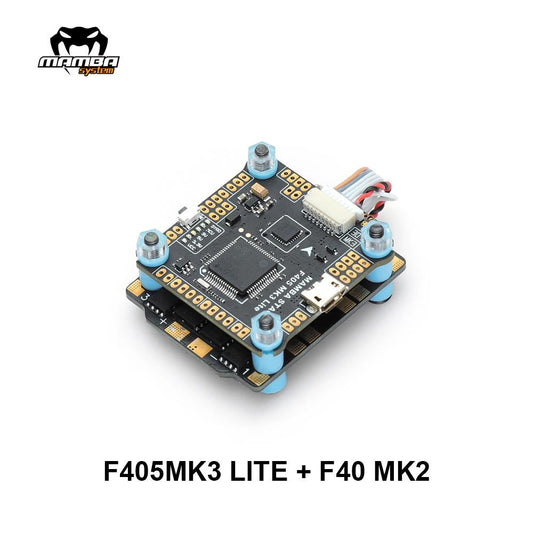

MAMBA Basic F405 MK3 LITE FC& 40AMK2 8bit ESC 6S StackDiagram Link From Help Centre LinkFixed Add I2C function When you connect the USB, the receiver and OSD settings can be saved Increase the pad area LED signal selection （when Mamba Led sys available）...

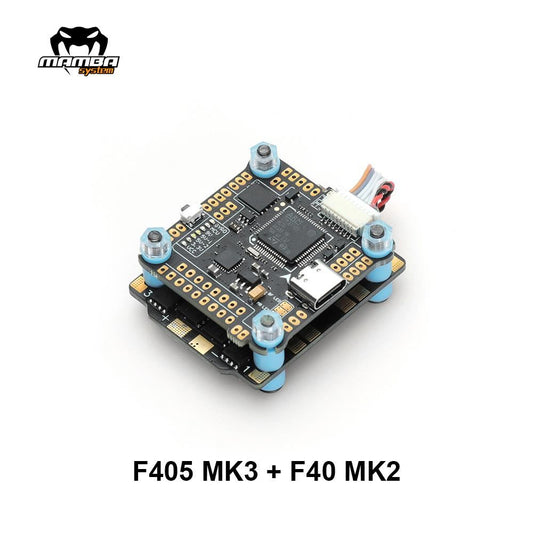

MAMBA Basic F405 MK3 FC& 40A MK2 ESC 6S StackDiagram Link From Help Centre LinkFixed Add I2C function When you connect the USB, the receiver and OSD settings can be saved Increase the pad area LED signal selection （when Mamba Led sys available） BEC short...

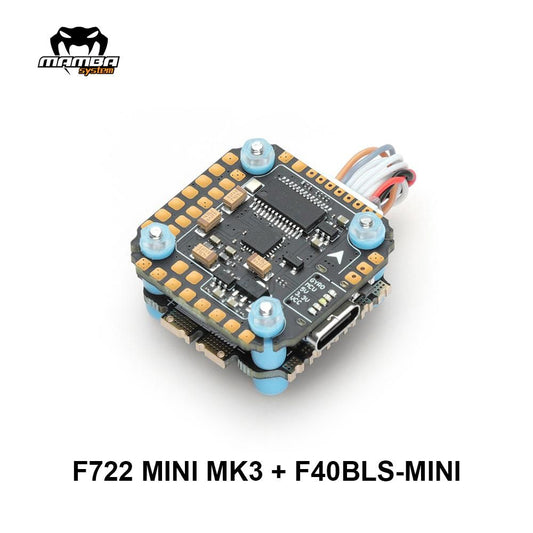

MAMBA Stack Basic F722 Mini MK3 40A 6S 8bitDiagram Link From Help Centre LinkFixed Add I2C function When you connect the USB, the receiver and OSD settings can be saved Increase the pad area LED signal selection （when Mamba Led sys avaiable） BEC short...

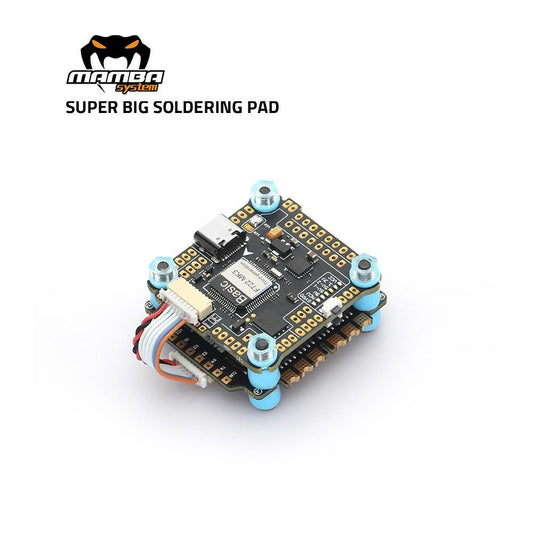

Description MAMBA Stack F722 MK3 50A 6S 32bit （NO WIFI） Diagram Link From Help Centre Link Fixed Add I2C function When you connect the USB, the receiver and OSD settings can be saved Increase the pad area LED signal selection （when Mamba Led sys...

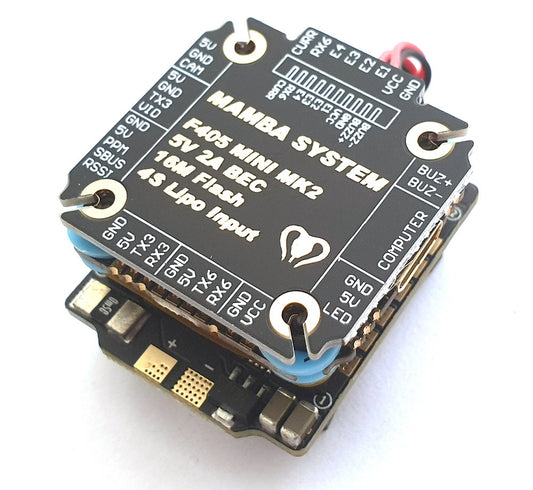

MAMBA F405 MK2 Mini Betaflight Flight Controller & F25 25A 2-4S DSHOT600 FPV Racing Brushless ESC  Diagram Link From Help Centre Link Latest Version with the Stacking / info plate and the EMF Shielding layer between esc and Flight controller  Specification:Mamba F405 Mini FC...

MAMBA F405 Betaflight Flight Controller & F40 40A 3-6S DSHOT600 FPV Racing Brushless ESCManual linkSpecification:Mamba F405 FCItem name: F405 Betaflight Flight ControllerInput power: 12.6-25V (3-6S)BEC: 5V/1.5AMCU: STM32F405Gyro: MPU6000Flash: 16MBOSD: AT7456Mounting hole: M3  Weight: 6g Description:INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)CONTINUE CURRENT: 40A×4 BURSTCURRENT: 50A (10S)BEC: NOMOUNTING: 30.5mm/M3CURR: 169ACapacitance:...

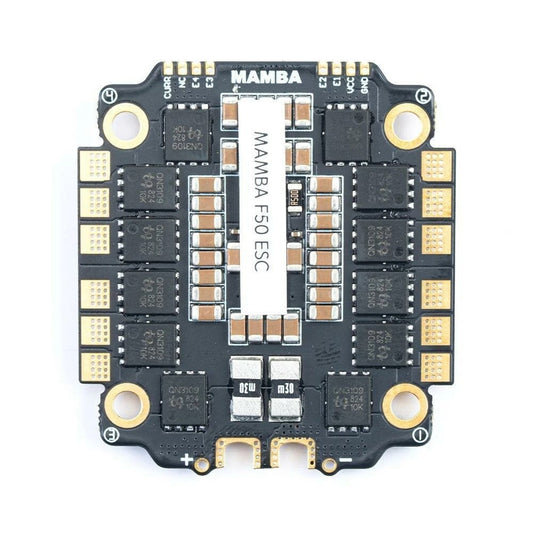

MAMBA F50 50A 3-6S Blheli_S DSHOT600 Brushless ESC 30.5*30.5mm with Metal Case for RC DroneSpecification:Item name: F50 50A 3-6S Blheli_S DSHOT600 Brushless ESCCURR: YESTelemetery: NOBEC: NOOutput current: 50APeak current(5 Seconds): 55AInput: 6SDshot: Dshot 300/600Target: CH40Mounting: 30.5×30.5mm,⌀ 3Size: 45.0×41.0×6.5mmWeight: 15gPackage Included:1 x F50 50A 3-6S...

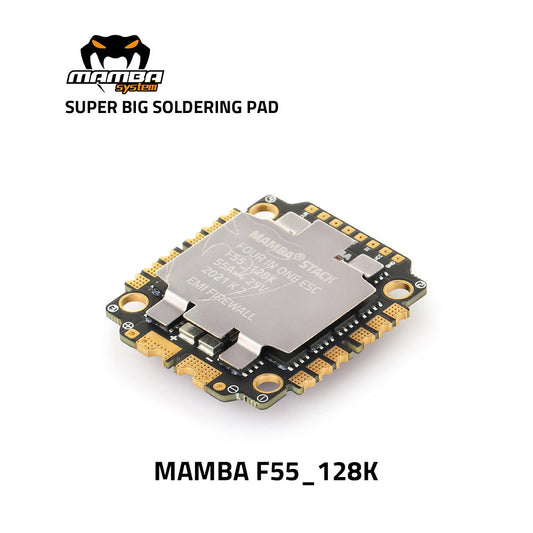

ESC Specification：INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)CONTINUE CURRENT:55A×4BURST CURRENT:65A (10S)BEC: NoTarget：BLHeli_32 MAMBA F55_128KSOFT: Dshot300/600/1200PWM:24~128KTVS Protection: Yes MOUNTING: 30.5mm/M3Supply : 8pin sh1.0 ×2AMASS Original XT60High-Frequency 470uF/35V

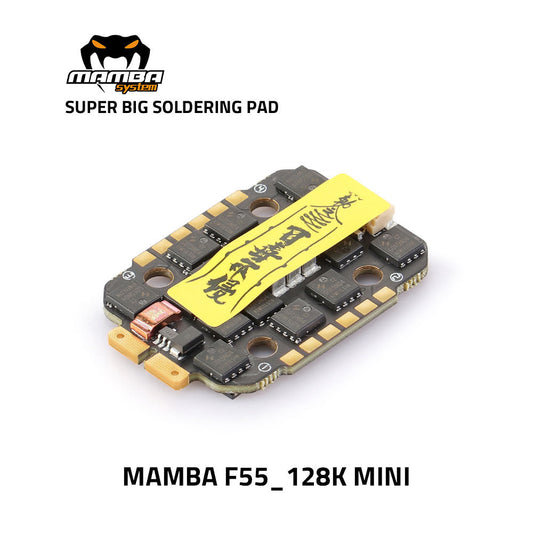

 MAMBA F55 128K MINIInput voltage: 3~6S Lipo (12.6V~25.2V)Continue current:55A×4Burst current:65A (10S)BEC: NoTarget：BLHeli_32 MAMBA F55_128K MINISOFT: Dshot300/600/1200PWM:24~128KTVS Protection: YesMounting size: 20mm,M2/M3Supply :8pin sh1.0 ×2AMASS Original XT60 ×1High Frequency 1000uF/35V ×1

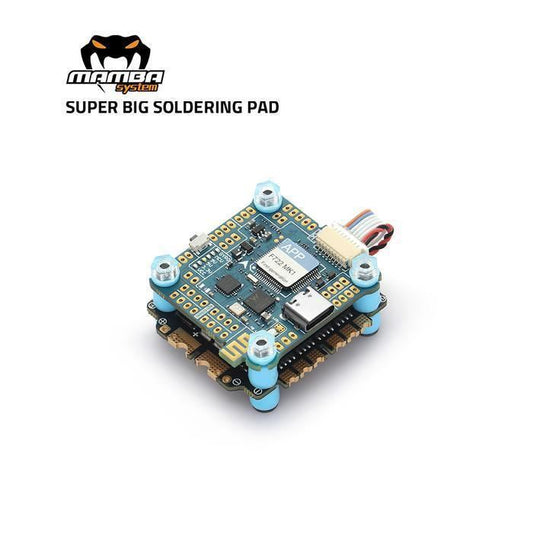

MAMBA F722S APP  I2C WIFI  F50PRO 3-6S Flight Controller StackFIRMWARE TARGET /CONFIG： MAMBA F722 I2C About WIFI APPDiagram Link From Help Centre LinkNote：Since STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a...

Note：Because STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation. Diagram Link From Help Centre LinkFIRMWARE TARGET ： MAMBA F722 The Stack can fit both M2/M3 Mounting hole Framekit （Adaptor...
