F722 2-6S AIO 35A FC is a very reliable FC that is made to meet your advanced FPV needs. Comes with an F722 chip and BLHELI_32 ESC firmware, this board provides a better performance capability and higher calculation speed, which brings pilots a more stable and smoother flight. What's more, F722 AIO 35A FC has specially added a 6-pin connector for DJI Digital VTX, just plug & play, less solder work needed, super easy to install. It also can handle up to 6S of input voltage and push your FPV racer to the max. We highly recommend it for 4-5'' Toothpick quad, such as X-Knight 5'' Toothpick Quad.
- Compared with F4 AIO 35A FC, F722 FC's firmware is upgraded from F411 to F722, providing a better performance capability and higher calculation speed, which brings pilots a more stable and smoother flight.
- F722 AIO 35A FC has specially added 6-pin connector for DJI Digital VTX, just plug & play, less solder work needed, perfect for the pilots who enjoy the DJI Digital VTX system.
- 6 full UARTs are available on this board. With plenty of UARTS, Pilots could have more options for external parts like VTX, GPS, Receiver and other components.
- Come with a built-in 10V BEC circuit, this board can offer the external components a more stable voltage and current, which brings pilots a better flight experience.
- It can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.
- With the 6S battery and this F722 35A AIO toothpick FC, the drone will break through the limit of the power of toothpick drone, exploring more possibilities in 4-5'' drones.
Specification of FC
- Item: F722 35A AIO FC(BLHeli_32)
- Weight: 7.89g
- CPU: STM32F722RET6
- Six-Axis: MPU6000 (SPI connection)
- Mounting hole size: 26mm * 26mm
- Firmware version: betaflight_4.2.x_BETAFPVF722
- OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
- Support programmable LED like WS2812 etc
- Built-in current sensor
Specification of ESC
- Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
- Input voltage: 2S-6S Lipo
- Continuous current: 35A
- Peak current: 40A
- ESC firmware: BLHELI_S 32
- Indicators: 2 indicators: receiver indicator (green)/Flight control power indicator (red)
- Capacitance: CS|5*10*13mm|470μF|35V
- Connecter: 80mm 14AWG silicone cable with XT60
- Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series
Diagram for F722 35A AIO FC
How to Connect the External RX to the FC

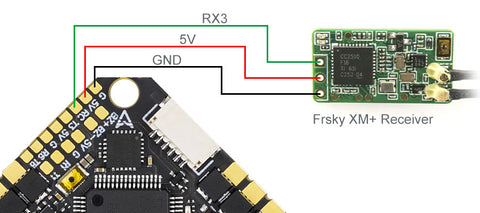

Here is the connection diagram with the Frsky XM+ receiver.

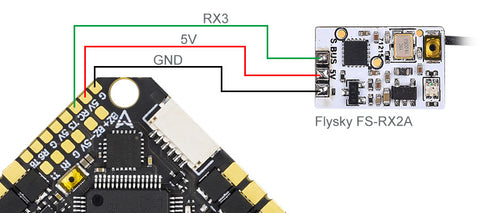

Here is the connection diagram with the FS-RX2A receiver.

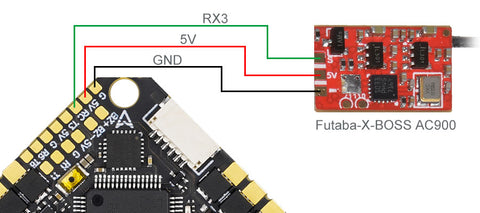

Here is the connection diagram with the Futaba-X-BOSS AC900 receiver.

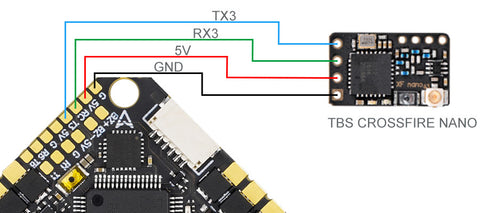

Here is the connection diagram with the TBS Crossfire receiver.

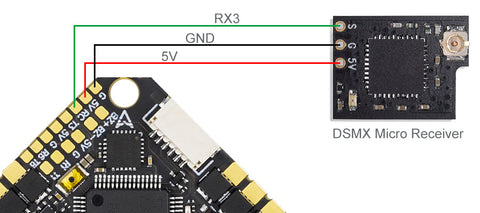

Here is the connection diagram with DSMX FullSpeed receiver.
There are 2 LEDs on the bottom of the board to indicate the status, including the Receiver LED ( Green) and FC Power LED ( Red ).
|Mode LED (Green)||Solid||Horizon Mode/ Angle Mode|
|Mode LED (Green)||Extinguished||Acro Mode|
|Power LED (Red)||Solid||Power on|
- BNF: highly recommend for TWIG ET5 and X-Knight 5'' Toothpick Quad
- Battery: 550mAh 6S 75C battery, 450mAh 4S battery, 4S 1000mAh Battery
- VTX: M02 25-350mW 5.8G VTX, A02 25-800mW 5.8G VTX
- Motor: 1805 1550KV brushless motor, 2004 Brushless Motors, 1606 Brushless Motor, 1506 Brushless Motor
- Compatible Propellers: Gemfan 5125 3-Blade props and Gemfan 5020 props
- Frame: 4-5 inch Frame, highly recommend for TWIG ET5 5'' Toothpick Frame, X-Knight Carbon Fiber 5'' V2 Frame Kit and X-knight 5'' frame
- 1 * Toothpick F722 35A AIO 2-6S brushless flight controller
- 1 * Cable Pigtail (XT60U)
- 1 * Capacitance
- 1 * 6-Pin Connector for DJI Digital VTX
- 4 * M2x10mm Screws
- 8 * M2 Nuts
