Out Of Stock




RunCam Micro Swift 3
- Stock: Out Of Stock
- Model: RunCam Micro Swift 3
- SKU: 6338
AUD $49.50
More from this brand
AUD $2.22
Ex Tax:AUD $2.02
AUD $7.28
Ex Tax:AUD $6.62
AUD $1.67
Ex Tax:AUD $1.52


THROW AWAY
YOUR MENU CABLE
CONTROL YOUR MICRO SWIFT 3 REMOTELY

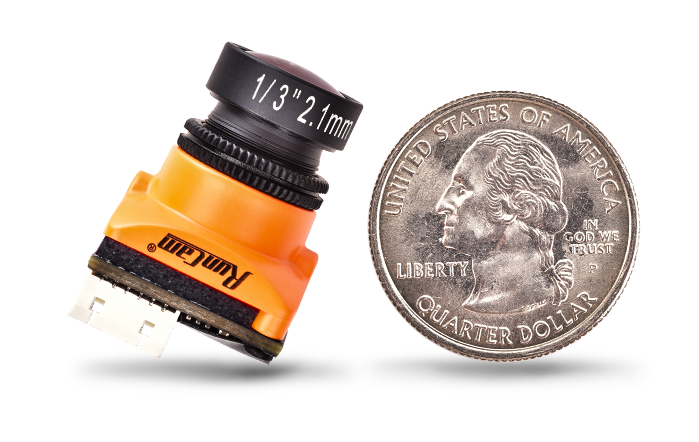

MICRO SIZE BODY
REGULAR SIZE LENS

Dimensions
Package
- 1x Camera
- 1x Aluminum bracket1x 6pin FPV silicone cable
- 1x Set of screws1x Manual
1. Flight controller wiring
Note: Take UART3 for example
2. Betaflight 3.3 or above setting

3. Remote control
Note: Take Mode-2 for example
Parameters
Model | Micro Swift 3 |
Image Sensor | 1/3" SONY Super HAD II CCD |
Horizontal Resolution | 600TVL |
Lens | 2.1mm ​(M12)​ FOV165° / 2.3mm(M12) FOV 150° |
Signal System | PAL / NTSC |
Integrated OSD | Yes |
One Key Scene | Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight |
S/N Ratio | >60dB (AGC OFF) |
Electronic Shutter Speed | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
Auto Gain Control (AGC) | Yes |
Min. Illumination | 0.01Lux@1.2F |
WDR | D-WDR |
DNR | 2DNR |
Day/Night | Color/Auto/B&W |
Remote Control | Flight Controllers : BetaFlight 3.3 / ButterFlight 3.4 / Cleanflight 2.2 |
Power | DC 5-36V |
Current | 60mA@12V / 120mA@5V |
Net Weight | 9g(2.3mm) / 11g(2.1mm) |
Dimensions | L19mm*W19mm*H25mm |
