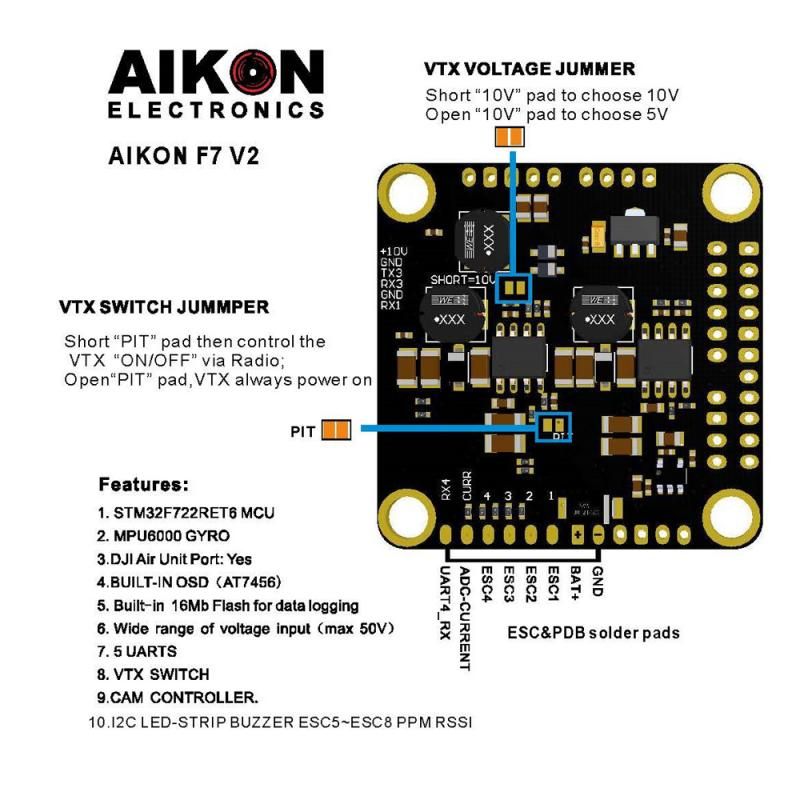

What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 7 Software invertable hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch
- LED and buzzer outputs (LED input doubles as PPM)
- Quick connection cable for 4-in-1 ESCs
- Quick connection cable for DJI HD system
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- 10v 1.5A voltage regulator for DJI HD system
- USB Type C connector for easy programming.
SPECIFICATIONS
- Battery 2-6s
- Mount Holes 30.5*30.5mm
- Firmware Betaflight AIKONF7 Target
- MCU STM32F722
- IMU MPU6000 (interrupt pin connected)
- Blackbox SPI 16MB
- Weight 12g
