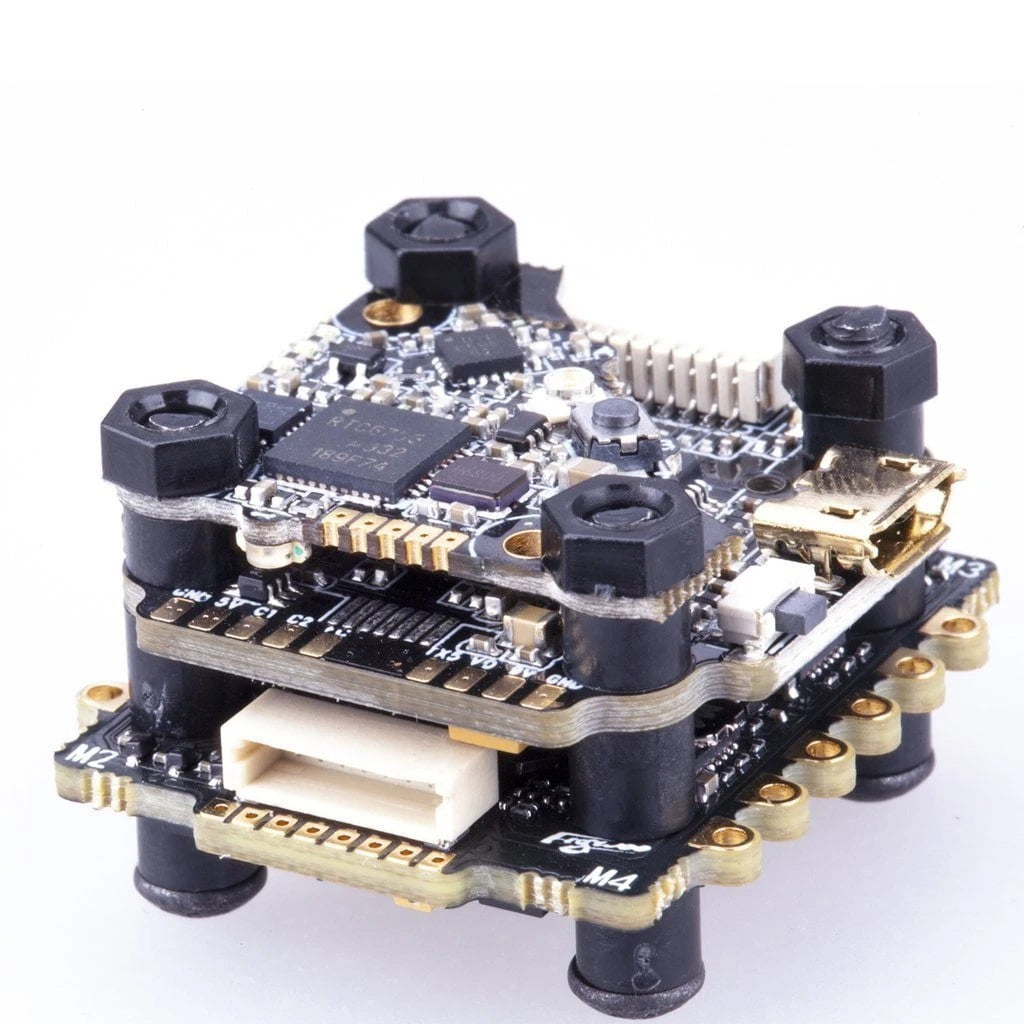

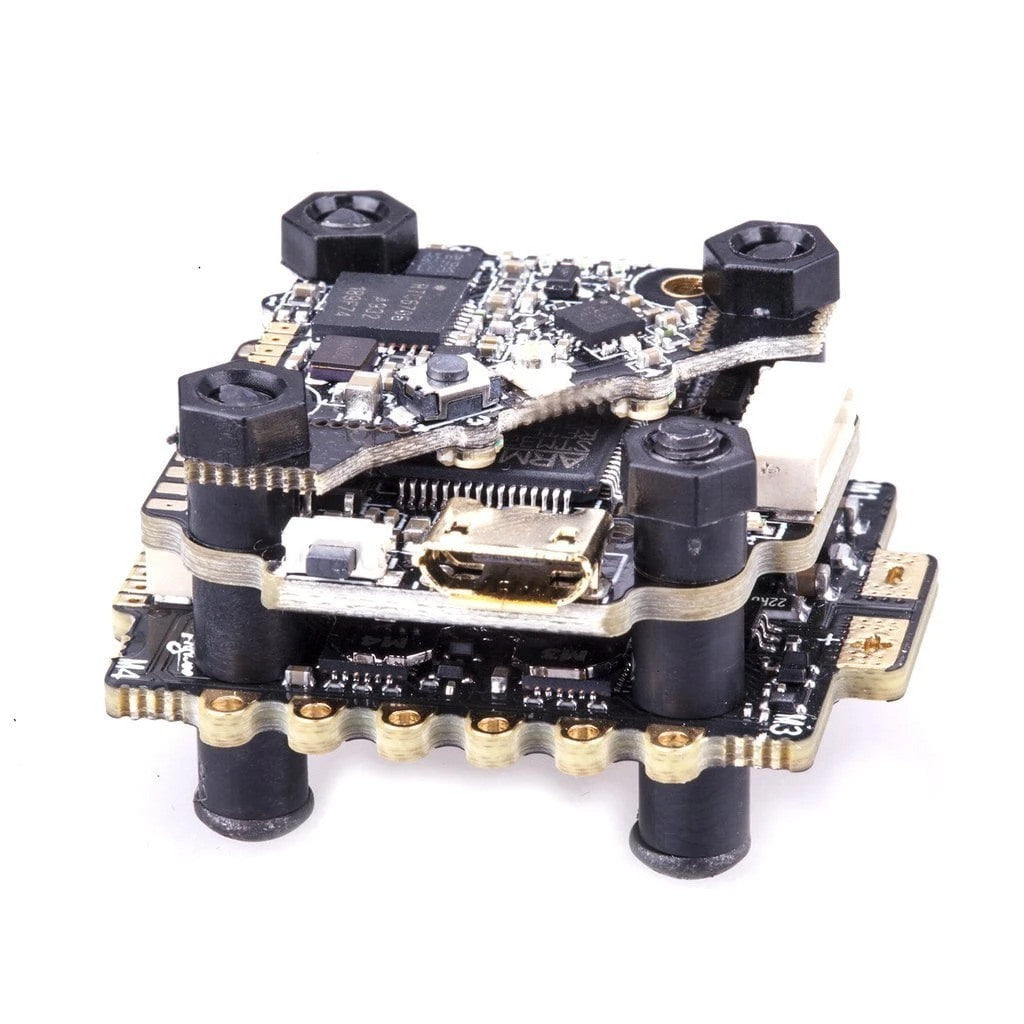

A complete Flywoo F7 stack with feature packed F7 FC, 32Bit ESC, and powerful VTX perfect for your next 3-6S 20x20 build!
The F722Mini alone is a fantastic FC, with features like 6 motor outs, 6 UARTs, Dual Camera switch, 16MB flash and barometer!
The 4in1 is no slouch either, featuring 40A (50A peak) BLHeli_32 performance with current sensor and telemetry support and a low profile heatsink.
Add the HM600 to this for ample RF power and RGB LEDs, and you've got a killer 20x20 stack!
Specifications
FC
MCU: STM32F722RET6 216MHz
GYRO: MPU6000
BARO: BMP280/FLASH: 16M
Input Voltage: 3-8s/BEC: 5V 2A/9V 2A
Dual camera switch&Support Camera Menu Settings
Max voltage 50V input
6 Functional UARTS (UART1,2,3,4,5,6)
Max 6 motor output
Firmware: FLYWOOF722DUAL
ESC
Peak Current: 50A
Input Voltage: 2-6S
Firmware: BLheli_32
BEC: NO
Weight: 7.2g (including heatsink)
Mounting Hole: 20x20mm ( M3)
Support Telemetry/Current Meter
Support Oneshot, Multishot, DShot150/300/600 and DShot1200
VTX
Frequency: 5.8GHz 5 bands 37 channels
Power: switchable
Control Mode:IRC(RX)/Button
BAT: +7-28V Input
Video System: NTSC/PAL
Antenna: IPX
Includes
- 1x Flywoo Goku F722 Mini 20x20 Stack/Combo
