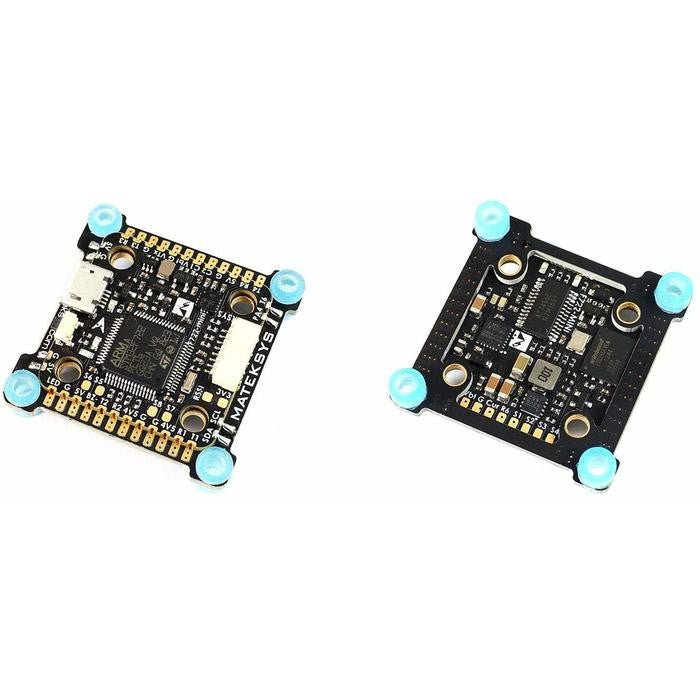

Immense power in a small package! Matek has added another member to their line of mini 20x20mm flight controllers; the F722-Mini with dual gyros, VTX power switch, and on board blackbox. This will fit great in your micro sized 2" and 3" builds or any ultralight 5" and 6" builds.
Specifications:
- MCU: 216MHz STM32F722RET6
- IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
- OSD: AT7456E (SPI)
- Blackbox: 32M-byte Flash memory (SPI)
- Baro: No barometer built-in. support external barometer module (I2C)
- 5x Uarts (1,2,3,4,6) with build-in inversion
- 1x Softserial supported
- 8x Dshot/Proshot/oneshot outputs
- 1x I2C
- 1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
- Dual Camera image switchable via AUX (modes tab-user2)
- Convertible 20mm to 30.5mm mounting
- Camera control: Yes
- Smartaudio & Tramp VTX protocol: Yes
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- Additional ADC for INAV analog airspeed
Power
- Input: 6~36V (2~8S LiPo)
- BEC: 5V 2A cont. (Max.3A)
- LDO 3.3V: Max.200mA
- Battery Voltage Sensor: 1:10 (Scale 110)
- No Current Sensor built-in, supports external current sensor of PDB/4in1
FC Firmware
- BetaFlight / INAV
- Target: MATEKF722SE
Physical
- Mounting
- 20 x 20mm/Φ3mm with Silicon Grommets
- 20 x 20mm/Φ2mm with Silicon & Brass Grommets
- 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
- Dimensions: 28 x 28 mm
- Weight: 5g

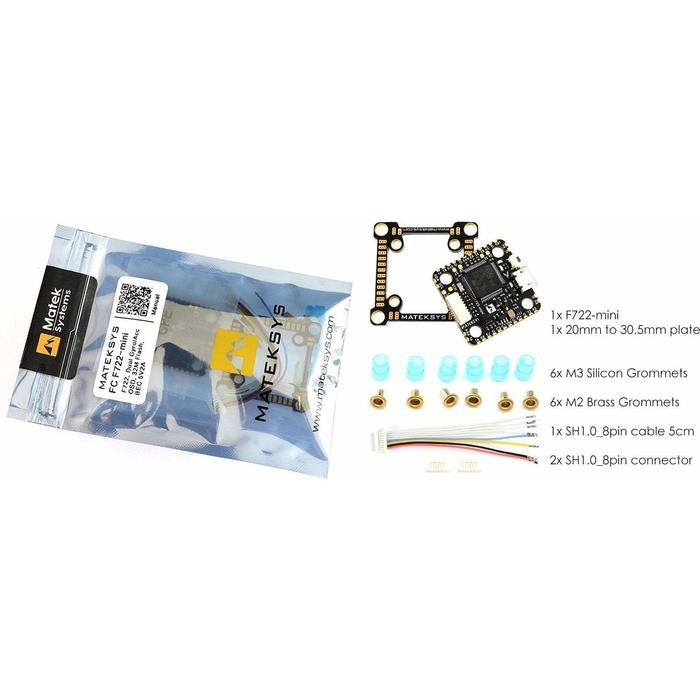

Including
- 1x FC F722-mini
- 1x 20mm to 30.5mm conversion plate
- 6x Silicon grommets M4 to M3
- 6x Brass grommets M3 to M2
- 1x SH1.0_8pin cable 5cm
- 2x SH1.0_8pin connectors
