Matek Voltage Spikes Filter XT60-TVS (Pack of 5)

Matek Voltage Spikes Filter XT60-TVS (Pack of 5)What is a TVS Diode and How Does it Work?...
Vendor: MATEK
Availability: In Stock
$13.95
$13.95
Subtotal: $13.95
matek-voltage-spikes-filter-xt60-tvs-pack-of-5-australia-mantisfpv-product-1

Matek Voltage Spikes Filter XT60-TVS (Pack of 5)

$13.95

Matek Voltage Spikes Filter XT60-TVS (Pack of 5)

$13.95

Matek Voltage Spikes Filter XT60-TVS (Pack of 5)


Matek RGB LED BOARD 5050/12V


What is a TVS Diode and How Does it Work?

  • The Transient Voltage Suppression diode (TVS) is a component that is commonly used for transient protection. It consists of a p-n semiconductor junction that becomes conductive during a transient voltage spike. In normal circumstances, it appears as an open circuit despite a small leakage current.
  • When the voltage on the transient voltage suppressor rises across its threshold voltage (Breakdown Voltage), the avalanche effect of the semiconductor causes the p-n junction to become a low-impedance path that channels away from the excessive current. The response time of the TVS diode is extremely fast, often expressed in picoseconds.
  • The placement of the TVS diode is also important. It is a good practice to place TVS diodes as close to the power source as possible.

matek voltage spikes filter xt60 tvs pack of 5 australia graph mantisfpvSpecifications

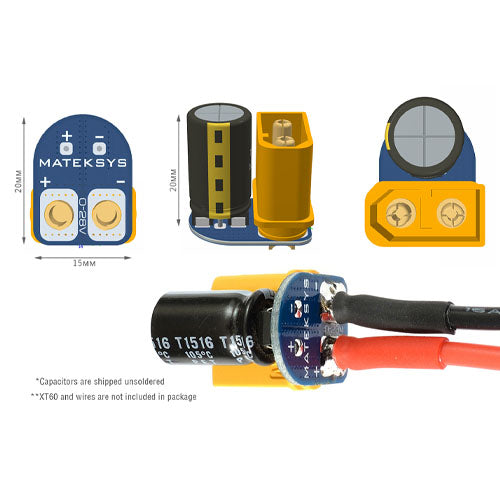

  • 2x high-power TVS diodes and 1x 470uF low ESR capacitor on board
  • TVS can absorb a huge voltage surge at the moment of plugging the battery to protect the connected components.
  • Low ESR capacitors will reduce the voltage spikes and ripple caused by ESC.
  • Maximum Operating Voltage: 28V (6S LiPo)

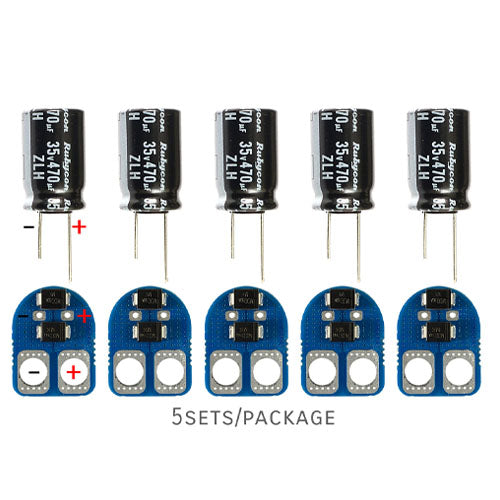

  • Packing: 5x PCB w/TVS,  5x 470uF Rubycon ZLH series electrolytic capacitor.

Includes

  • 1x Matek Voltage Spikes Filter XT60-TVS (Pack of 5)
