Product Description
 |
 |
 |
|---|---|---|
Power meteringShelly 1PM has two integrated precise power meters that allow you to measure the consumption for each channel separately. Based on your monthly limit, it can execute different actions. |
Overconsumption and overheating protectionShelly 1PM has а built-in temperature sensor for overheating protection. If the PCB temperature goes above a danger level, the device will turn off. In case you want to control your consumption and spending, set your preferred daily/monthly energy use, and Shelly 2.5 will turn off the circuit immediately if it detects a higher value. |
Wide range of voltage supportShelly 1PM supports up to 110-240v AC or 24-60v DC, making it suitable for most types of Smart Home projects! Additionally, Shelly 1PM has an optional add-on for temperature, humidity, reed switch and other sensors. Hook your lights, washing machine, dryer, refrigerator, or any other old appliance that you want to control and measure remotely. |
Device identification
- Device name: Shelly 1PM
- Device model: SHSW-PM
- Device SSID: shelly1pm-XXXXXX
Short description

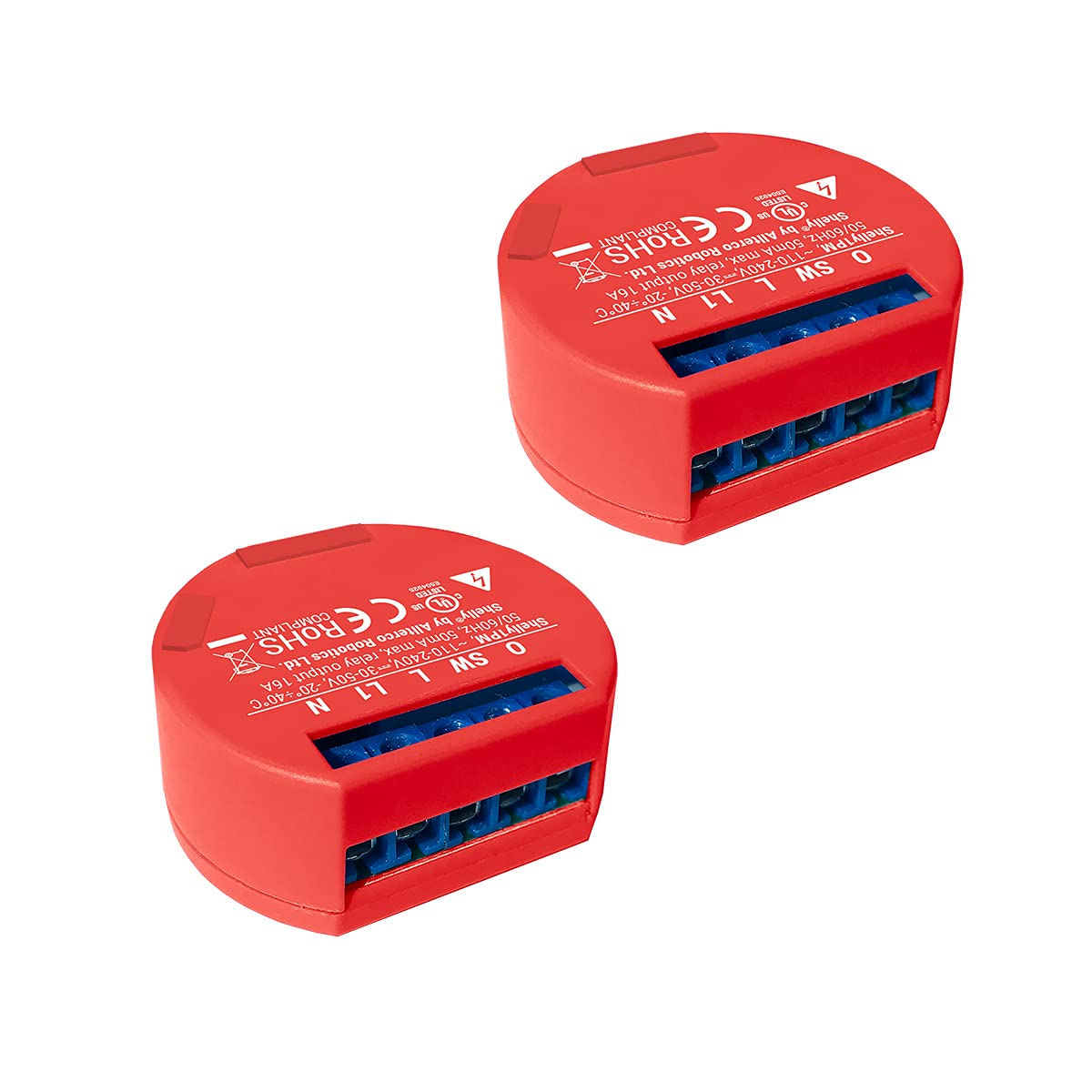

Shelly 1PM is a small form factor smart switch with power measurement, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly 1PM can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.
Shelly 1PM has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Main applications
- Residential
- MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
- Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
- Government/municipal
- University/college
Integrations
- Samsung SmartThings
- Alexa
Simplified internal schematics
Opens image in full screen
Device electrical interfaces
Inputs
- 1 switch/button input on screw terminal
- 3 power supply inputs on screw terminals: N (+), L, L1
Outputs
- 1 relay outputs with power measurement on screw terminal
Addon interface
- Shelly proprietary serial interface
Opens image in full screen
⚠CAUTION! High voltage on the add-on interface when the Device is powered!
Connectivity
- Wi-Fi
Safety features
- Overheating protection
- Overpower protection
Supported load types
- Resistive (incandescent bulbs, heating devices)
- Capacitive (capacitor banks, electronic equipment, motor start capacitors)
- Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)
User interface
User interface
Inputs
- One (Reset) button
- Press and hold for 5 seconds to enable Device access point.
- Press and hold for 10 seconds to factory reset the Device.
Outputs
- LED (Red) indication
- AP (Access Point) enabled and Wi-Fi disabled:
1 secondON/ ¼ secondOFF - Wi-Fi enabled, but not connected to a Wi-Fi network:
2 secondON/ ¼ secondsOFF - Connected to a Wi-Fi network:
ConstantlyON - Cloud enabled, but not connected:
1 secondON/5 secondsOFF - Connected to Shelly Cloud:
ConstantlyON - OTA (Over the Air Update):
½ secON/ ½ secondOFF - Button pressed and held for 5 seconds:
¼ secondON/ ¼ secondOFF - Button presses and held for 510 seconds:
⅛ secondON/ ⅛ secondOFF
- AP (Access Point) enabled and Wi-Fi disabled:
Specifications
Enlarges the table by opening it in a full screen dialog
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 36x41x17 mm / 1.42x1.61x0.67 in |
| Weight: | |
| Mounting: | Wall console |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Red |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 - 240 VAC / 24 - 60 VDC |
| Power consumption: | < 1 W |
| Output circuits ratings | |
| Max switching voltage AC: | 250 V |
| Max switching voltage DC: | 60 V |
| Max switching current AC: | 16 A |
| Max switching current DC: | 10 A |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Wattmeter (AC) | Yes |
| Radio | |
| RF band: | 2401 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP8266 |
| Flash: | 2 MB |
| Firmware capabilities | |
| Schedules: | 18 |
| Webhooks (URL actions): | 6 with 5 URLs per hook |
| Scripting: | No |
| MQTT: | Yes |
| CoAP: | Yes |
Basic wiring diagrams
Enlarges the table by opening it in a full screen dialog
| Opens image in full screen
|
Opens image in full screen
|
