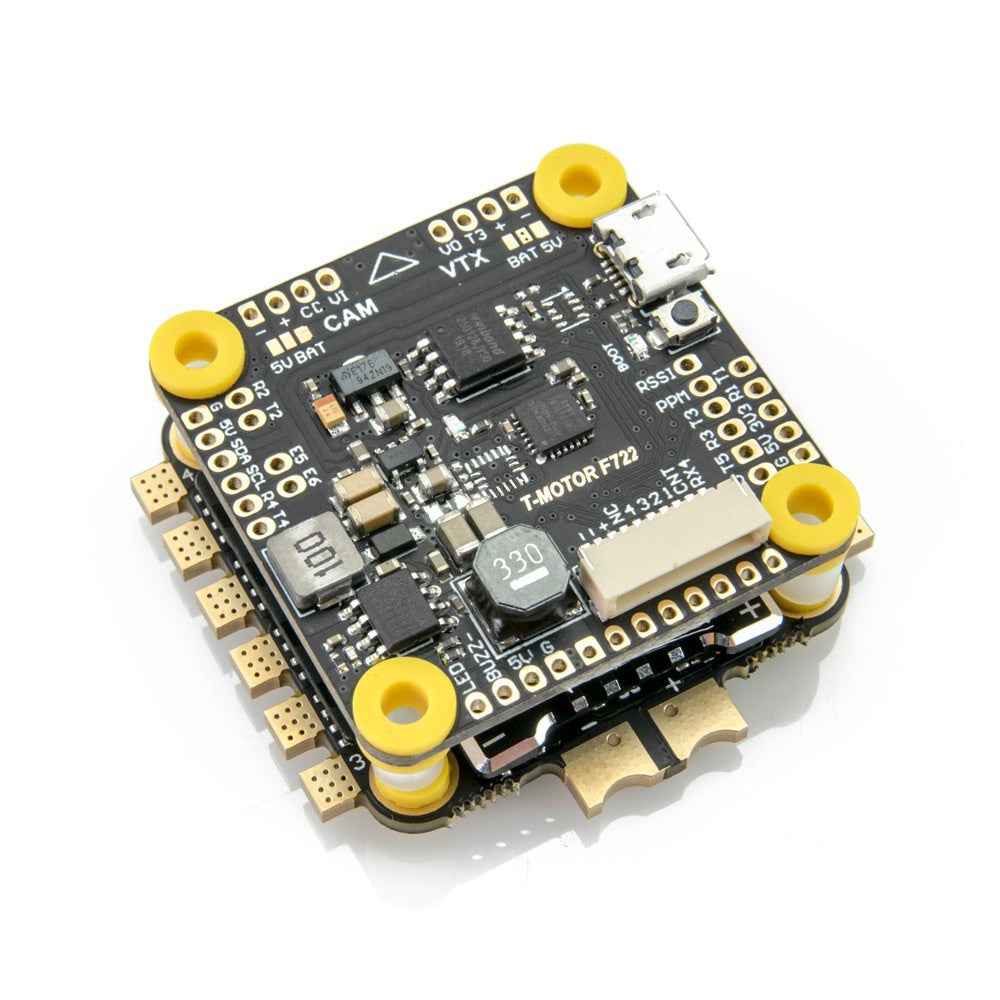

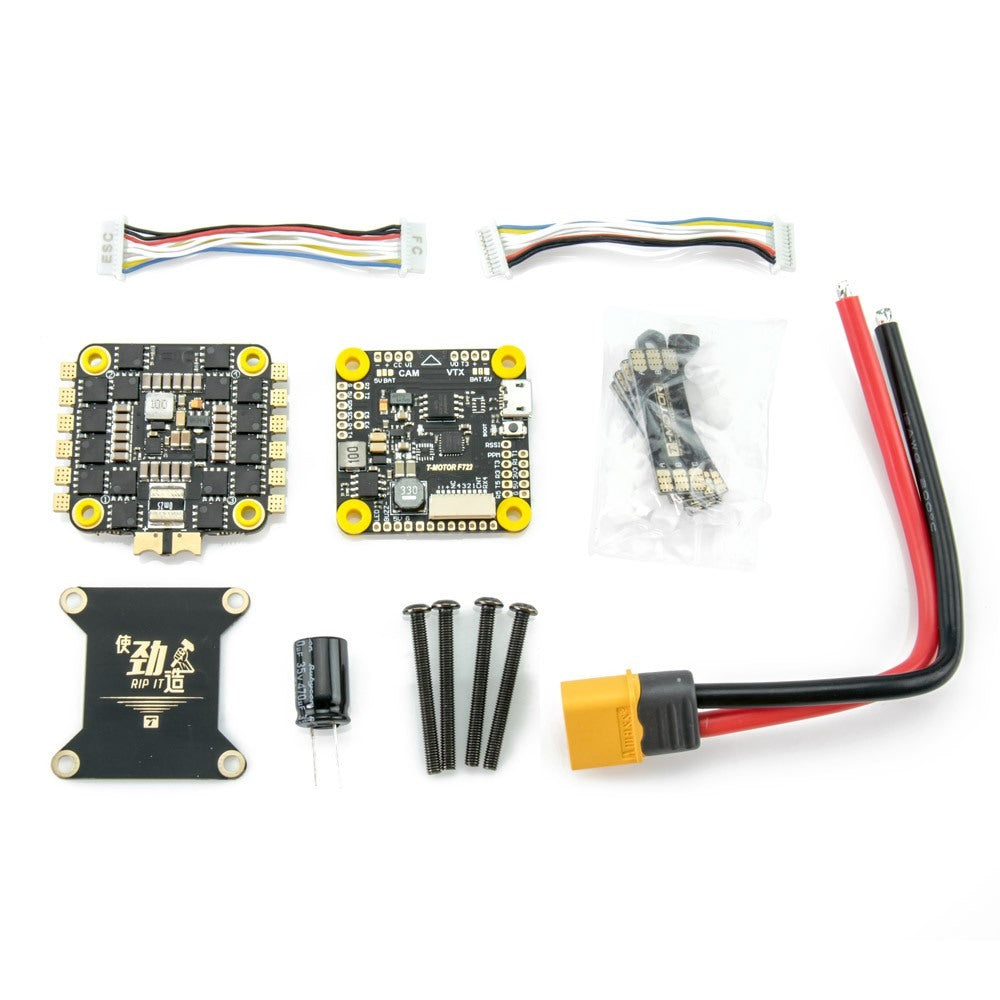

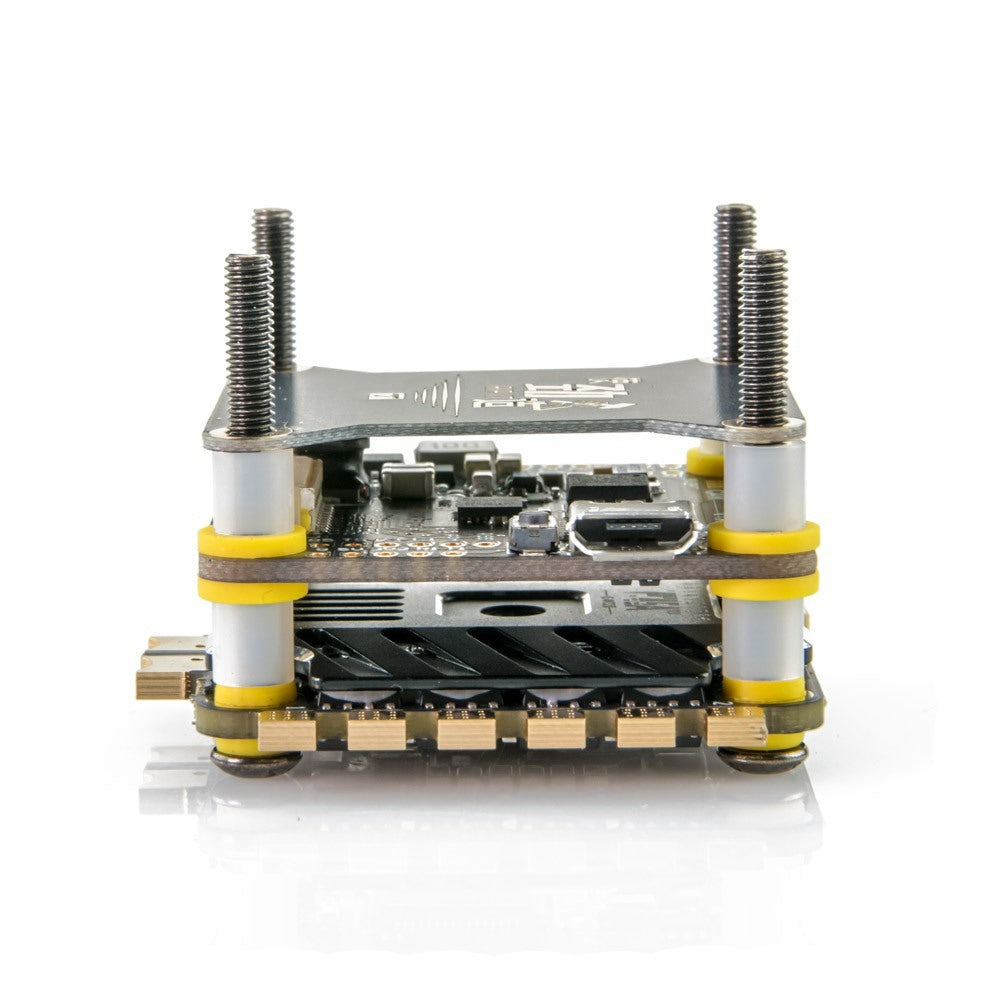

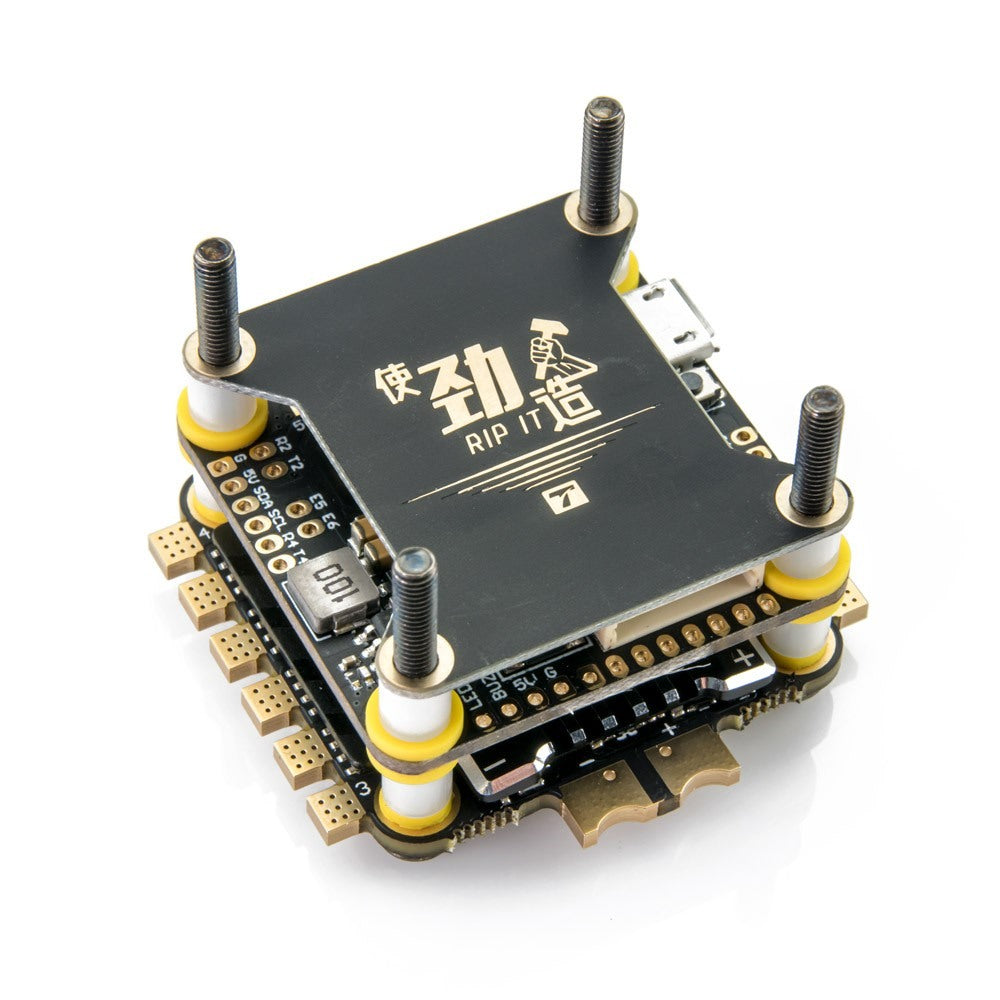

T-Motor's powerful F7 Flight Controller combined with the T-Motor F55A Pro II ESC will give you optimized performance and seamless integration in your electronics stack.

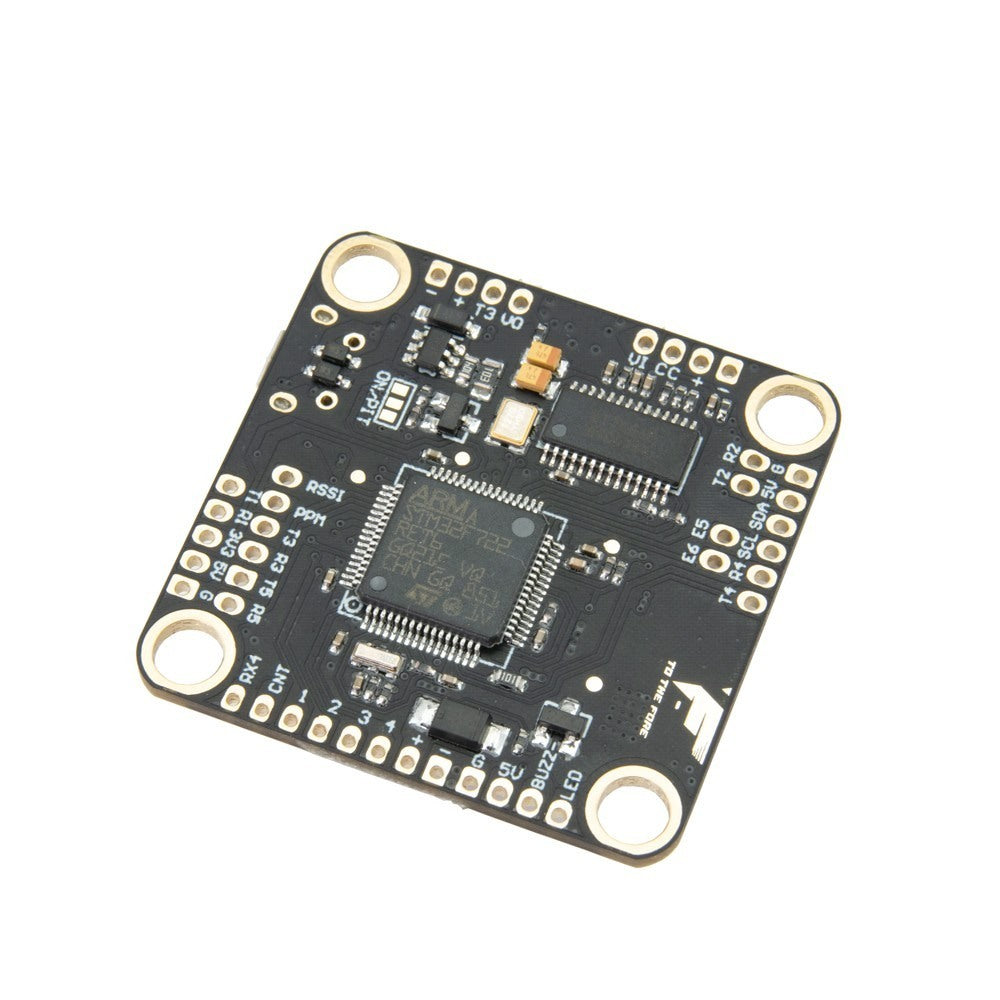

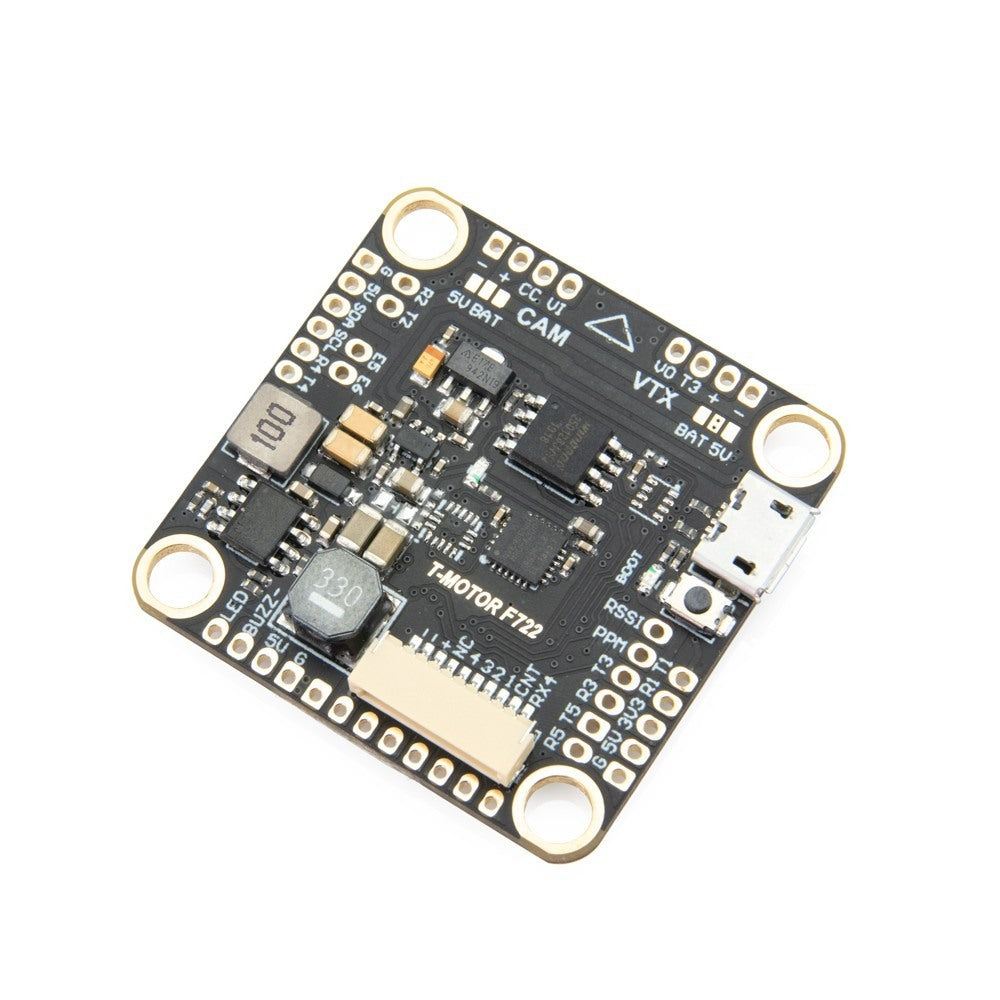

T-Motor F7 Flight Controller
T-Motor's first F7 Flight Controller has arrived! Logical layout, designed to work seamlessly with the T-Motor F45 and F55 ESC.
Specifications
- MCU: STMF722RET6
- Gyro: MPU6000
- Memory: 16M
- Input Voltage: 12v-25-2v (3-6S)
- BEC: 5V/2A
- Dimensions: 37mm x 37mm
- Mounting Holes: 30.5mm x 30.5mm
- Weight: 7.4g
- Firmware Target: TMOTORF7 (Betaflight)
T-Motor F55A Pro II 55A 3-6s BLHeli32 4-in-1 ESC w/ BEC
The F55 Pro II updates the original F55 with a new heatsink design, LED, and increased the BEC current to 10V@2A.
Fully capable of pushing 6s with 75A burst and a sustained 55A current draw. Equipped with the latest in ESC technology such as 32-bit capability and BLHeli32 firmware.
Specifications
- Continuous current: 4*55A
- BLHeli_32 32bit
- Burst current: 4*75A
- BEC Output: 10V @2.0A
- Size: 45x41x7.3mm
- Weight: 17.5g (Including Heatsink)
- Support DSHOT150/300/600/1200
