Looking to buy a MATEK DIGITAL AIRSPEED SENSOR ASPD-4525 in Australia? You've come to the right place. Any questions? please live chat us, we're here to help!
Check out all our Flight Controllers and the rest of our Matek Products!
Specifications
- Board Supply voltage: 4~6V DC
- Sensor: MS4525DO
- Working current: 5mA
- Output: I2C (SCL & SDA)
- Pressure Ranges: 1 PSI (6.89kPa)
- Maximum Pressure: 20 PSI (137.9kPa)
- Operating Temperature: -40°C ~ 125°C
- Accuracy: ±0.25% SPAN
- Red LED: power indicator
- JST-GH sequence: 5V, SCL, SDA, GND
- Weight: 3.5g (sensor board)

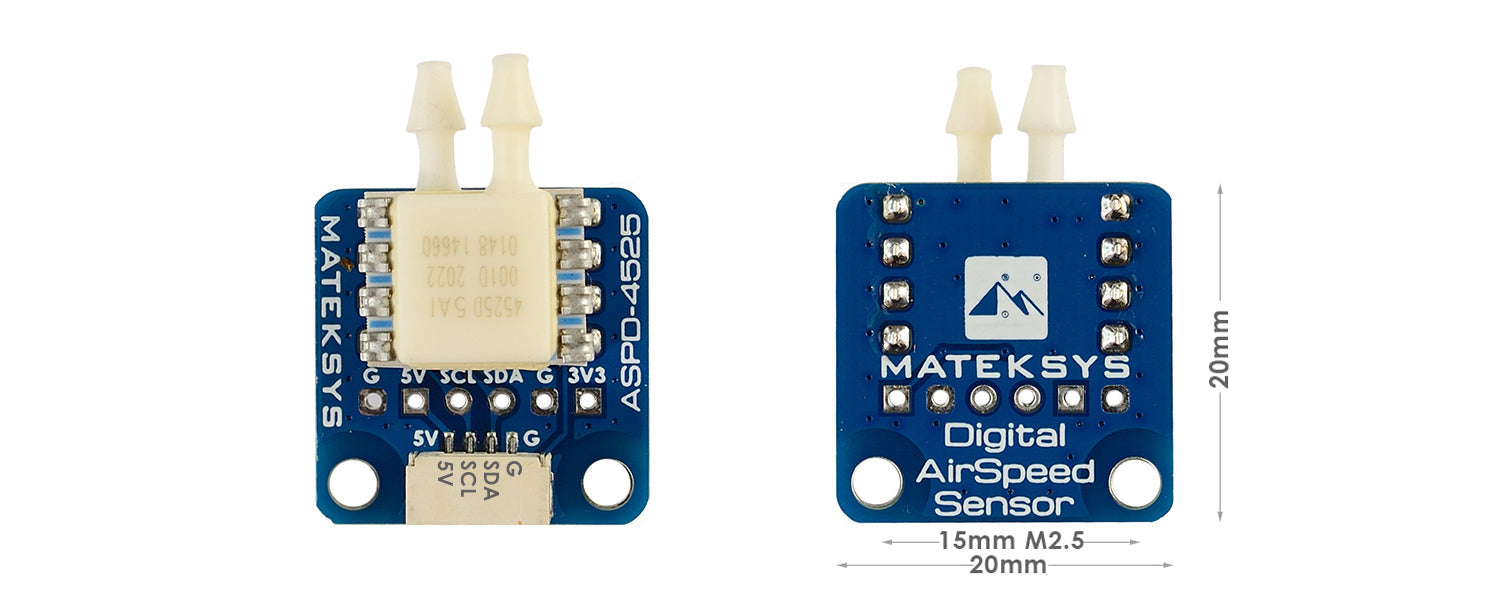

- ASPD-4525 Sensor Board.
- JST-GH to JST-GH 20cm silicon cable.
- Pitot Tube.
- Clear silicon tubing 40cm
- Wiring
- 5V to FC 4~6V
- SCL to FC I2C_SCL
- SDA to FC I2C_SDA
- G to FC GND
