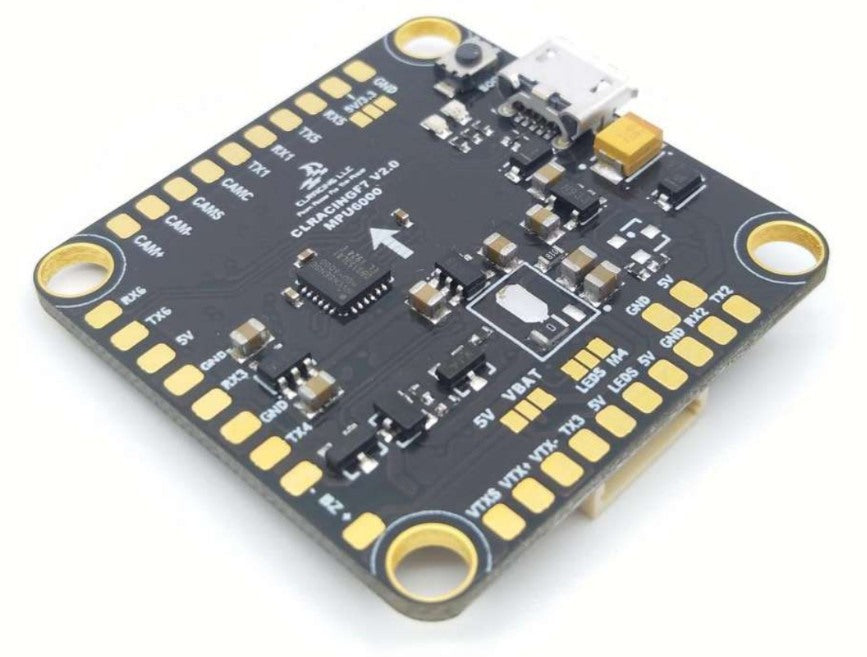

CLRACINGF7 MPU V2 Flight Controller
CLRACINGF7 MPU V2 Flight Controller

CLRACINGF7 MPU V2 Flight Controller

Cl Racing have done it again with a very clean well laid out board, by a racer...
Vendor: CL-RACING
Availability: Out Of Stock
$48.61
$48.61
Subtotal: $48.61
CLRACINGF7 MPU V2 Flight Controller

CLRACINGF7 MPU V2 Flight Controller

$48.61
CLRACINGF7 MPU V2 Flight Controller

CLRACINGF7 MPU V2 Flight Controller

$48.61
Description

Cl Racing have done it again with a very clean well laid out board, by a racer for the racer.


Main Features

1. MCU: STM32F722RET6216MHz

2. 6-Axis MPU6000 Separated Interrupts

3. Build in Beta flight OSD

4. Up to 8S(36V) direct battery power

5. Built in Voltage monitoring resistor

6. Built in 5V/3A BEC and 3.3V/250mA for system

7. Led strip share 5V with 5V/3.0A BEC

8. 5V OR VBAT, camera and VTX POWER VIA Pit Switch

9. 6 Full UARTS: UART1, UART2, UART3, UART4, UART5, UART6

10. Built In Camera Control pin with necessary resistor and capacitor near

camera connection

11. Buzzer Pads for external buzzer

12. Build in 32MB Blackbox flash chip

13. M4 Can be selected either led strip signal or M4 signal for RPM filtering

14. 30.5 x 30.5 Mounting with gummies
