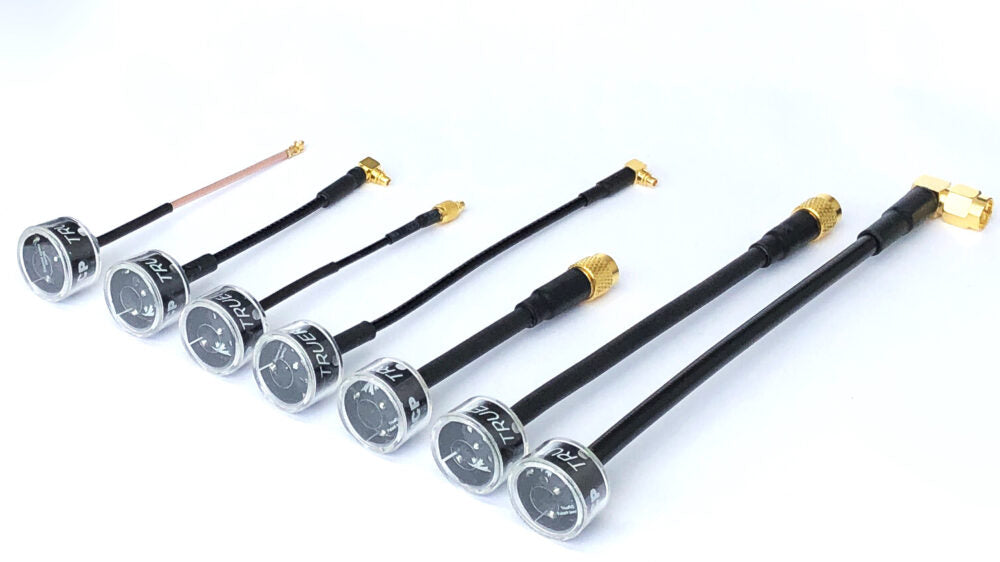

OCP 5.8 LHCP MMCX90 long 110mm

Description:

The OCP 5.8 is our new everyday omni antenna. Proven design, great signal, durable and look amazing. Available in all popular connector configurations.

Features

• Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
• Clear indication of polarization direction
• Excellent axial ratio and efficiency
• Flexible coax cable option that deflect impacts
• Knurled True-SMA for easy tightening
• Quality MMCX/90 that snap on DJI fpv securely



Specs:

• Gain: 1.6dBic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: -10 to -20dB, (3.2%)
• Bandwidth: 5.6GHz-6.0GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Weight: Vary with connector/cable option
• Dimensions(head): 16.5mm dia. x 10.7mm height.
• Length: Vary with cable option
• Cable: TrueRC RG316S/RG402/RG178 coax
• Connector: Reinforced True-SMA/90 male, U.FL, MMCX/90



Useful print!

• AFW Rapid mount
• Carnage/Venom mount


US. Pat. 10,804,618
Can. Pat. 2968566
