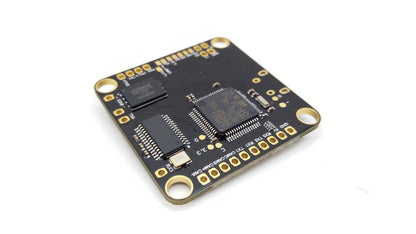

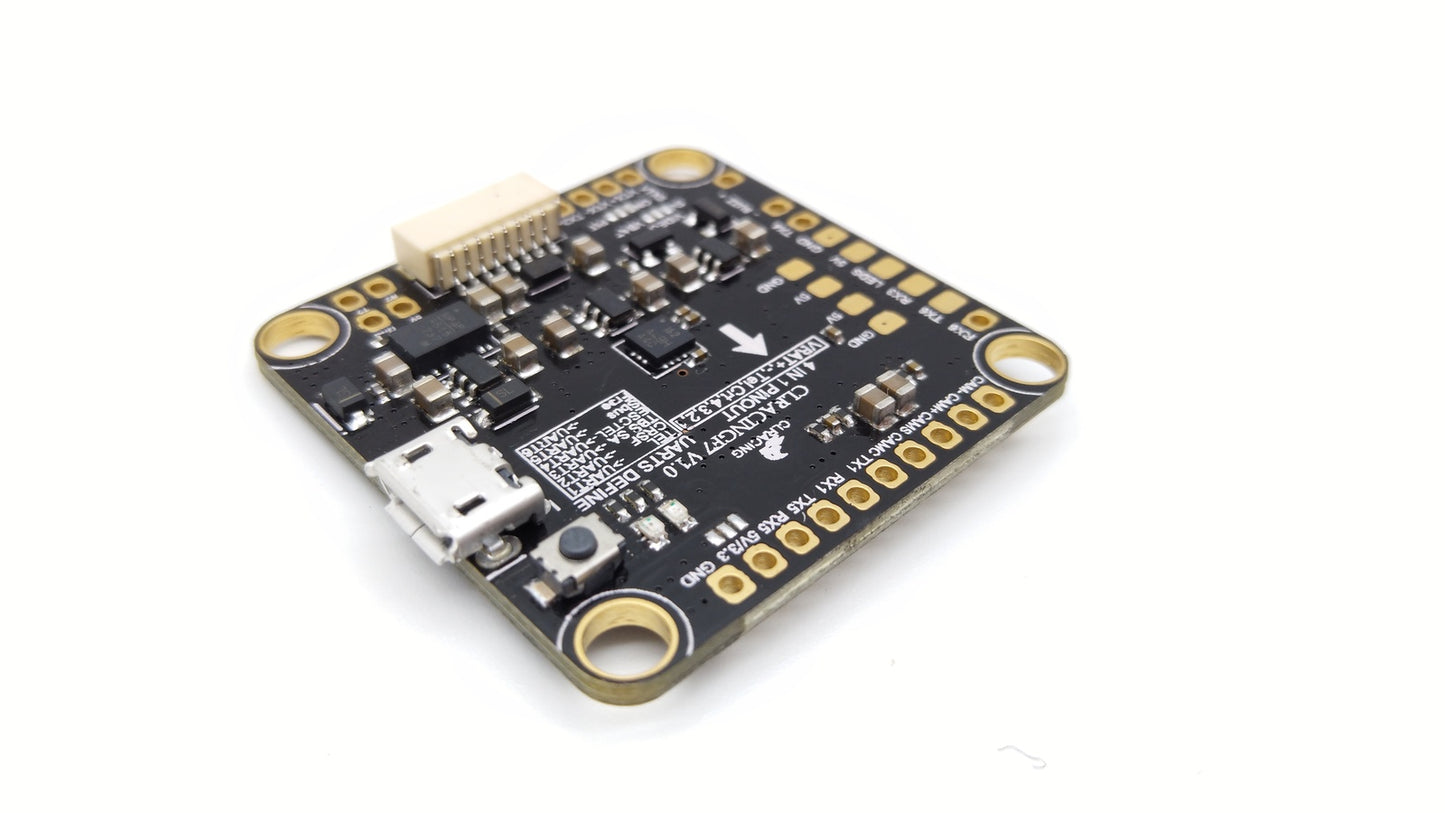

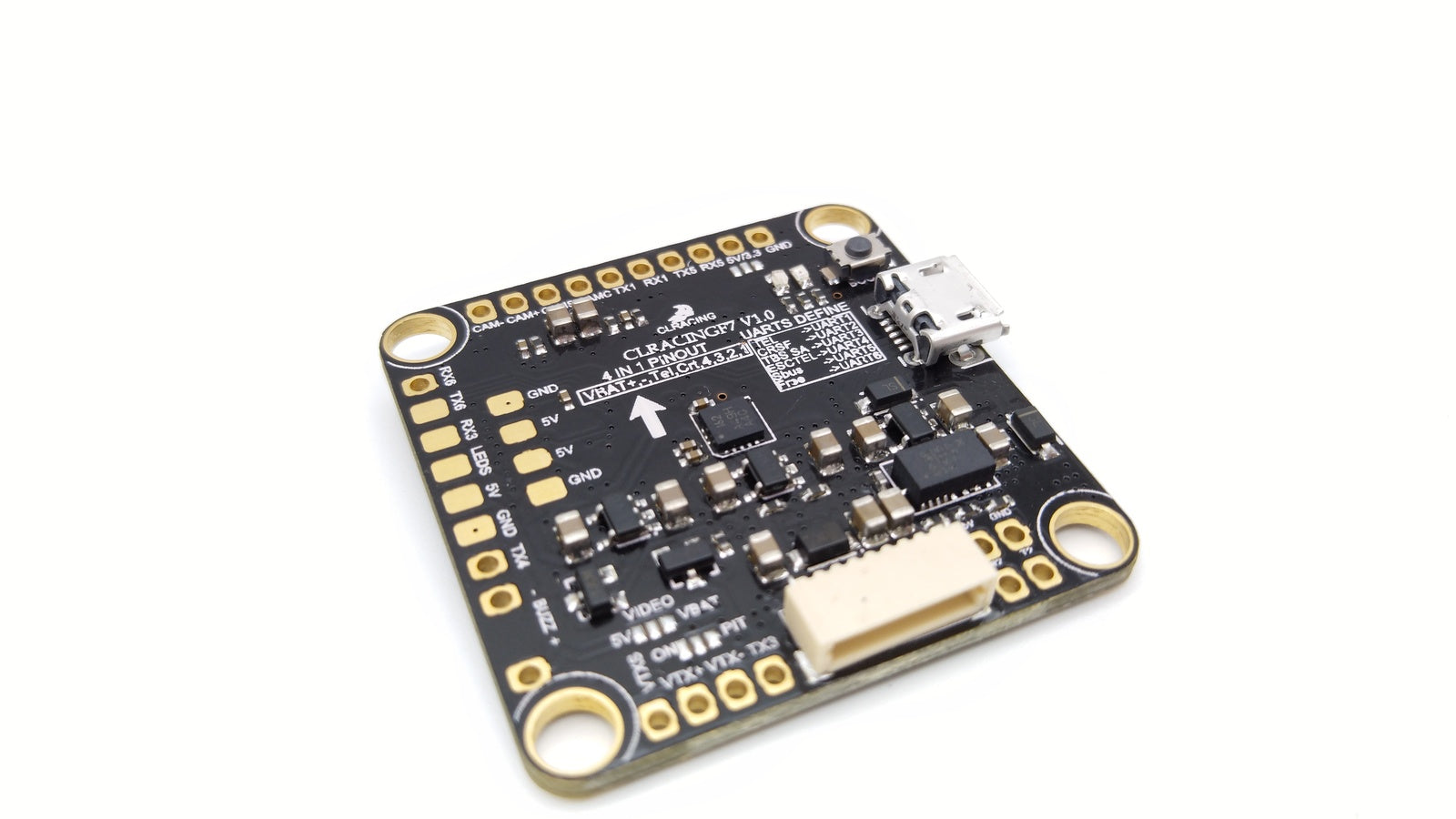

The latest release from CL Racing - CLF7

Features:

  • MCU: STM32F722RET6 216MHz
  • 6-Axis ICM20602 32K
  • Built-in Beta flight OSD
  • Up to 8S (36V) direct battery power
  • Built-in Voltage monitoring resistor
  • Build in 5V/1.5A BEC and 3.3V/250mA for system
  • Led strip shares 5V with 5V/1.5A BEC
  • 6 UARTS
  • Build in Camera Control pin with necessary resistor and capacitor near camera connection
  • Buzzer pads for external buzzer
  • VBAT Polarity protection
  • Built-in True PIT mode (turns off ppower to the VTX)
  • 128Mb Flash chip for blackbox data

Perfect for a 4 in 1 esc or seperate pdb as the FC does not have a Power distribution feature for esc's

Manual here
