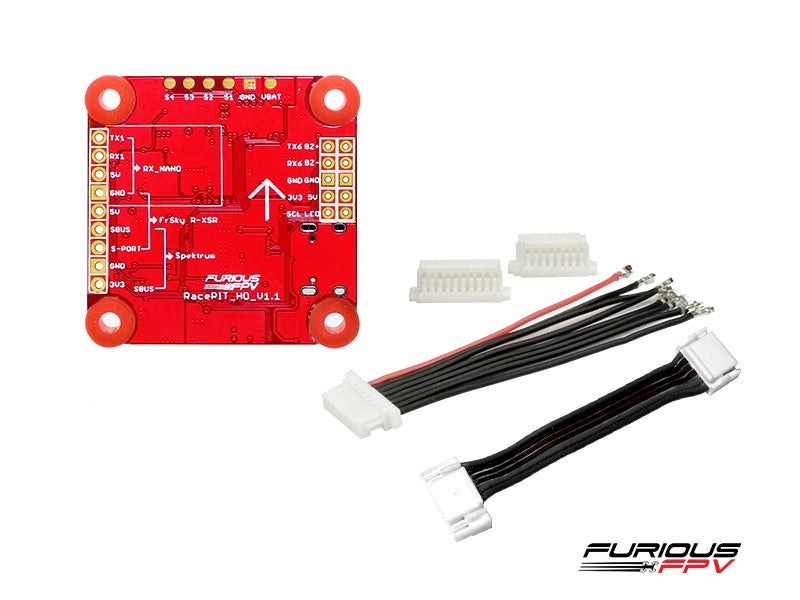

FuriousFPV - RACEPIT HD Flight Controller

The FuriousFPV RacePit HD F4 Flight Controller is a powerful FC that comes that is made to fit the DJI Digital HD FPV System. Comes with 6 UARTS, like connections of VTx, DJI, GPS, Crossfire, Bluetooth, and many others! Also includes high-quality 5V 2A BEC w/ 2S - 6S voltage input range.

Features

• STM32F405 main chip
• MPU6000 Gyroscope instead
• Built-in connector for 4-in-1 ESC as well as solder pads
• Built-in power switch for VTx DJI
• Built-in USB Type C
• Built-in 8V 2A for VTx DJI
• Full 6 Uarts for Simultaneous Connections of VTx DJI, GPS, CRSF Rx, Bluetooth, and others
• High-Quality 5V 2A BEC w/ 2S - 6S Voltage Input Range
• Built-in Inverter for S.BUS & S.PORT
• Integrated Silicone Dampers for Maximum FC Functionality

Specifications

• Item Name: F4 Flight Controller HD
• Input Voltage: 2-6S Lipo
• CPU: STM32F405
• Gyro: MPU6000
• Built-in 5V 2A BEC Output
