2022 New Happymodel Mobula7 1S Micro FPV Drone with RS0802 KV20000 Motors Runcam Nano3 Camera
[embed]https://youtu.be/yOOf0X8AdmU[/embed]
We’re glad to launch our new Mobula7 drone, this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.
The world's first 5-IN-1 AIO flight controller with ExpressLRS 2.0, OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC, and Betaflight OSD coming out recently. This is an amazing flight controller for Brushless whoop. You could get an unbelievable RX and VTX range by using this flight controller.
The new RS0802 motors come with a new unibell design, use a 1.5mm shaft, and include a PCB bottom plate, high efficiency, and much more reliability.
New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for a race event.
Features:
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah battery(Not include)
Lipo Battery：(not included)
Recommend battery:
650mAh 1S Battery 4.35V HV LiPo Battery
Specifications:
Brand Name: Happymodel
Item Name: Mobula7 1S 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm

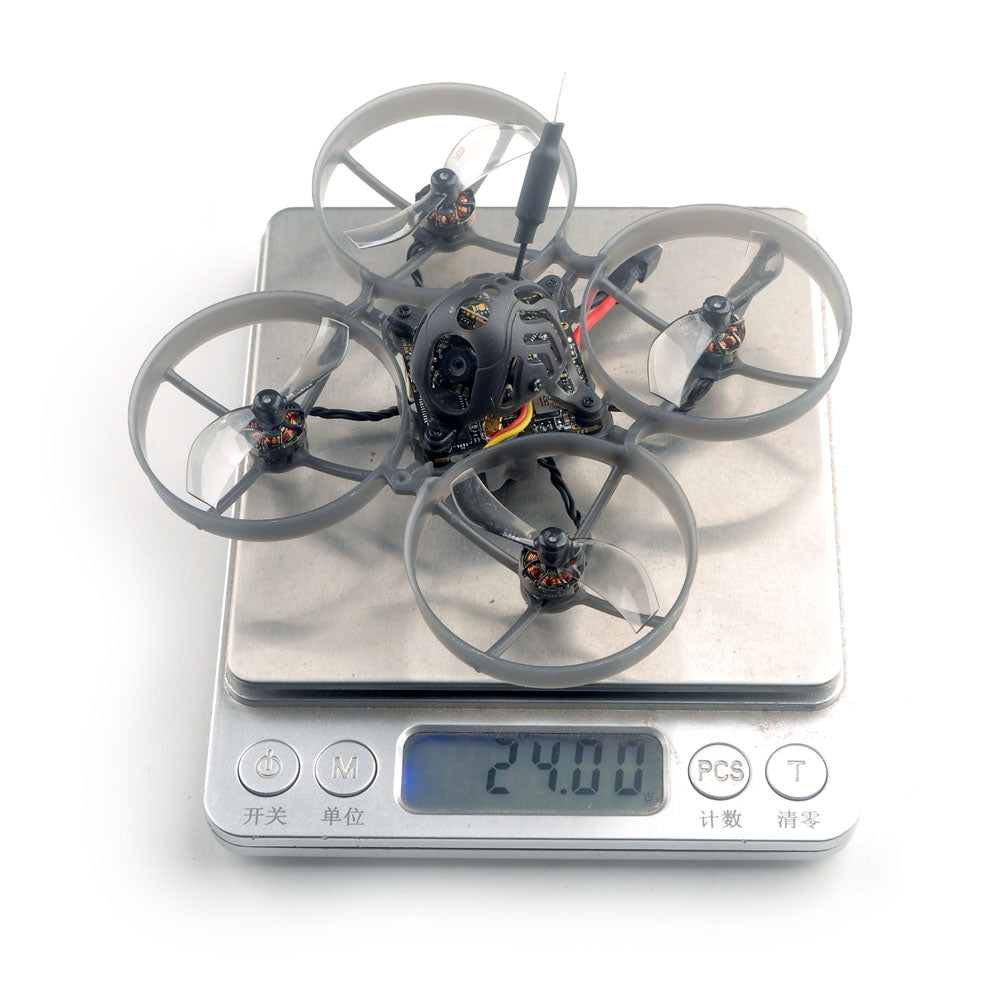

Weight: 24g
Receiver option:
2.4G ELRS SPI
Spare parts specifications:
Motor：
Mode: RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only
Propellers：
Weight:0.24g
Material:PC
Pitch:1 inch
Props Dia:40mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller：
X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor
Onboard 4in1 ESC：
Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver：
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna: SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Onboard 5.8g OPENVTX :
Firmware version: OPENVTX
Smart audio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Runcam Nano3:
Model: RunCam Nano 3
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 150°
Signal System: NTSC
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
Package Included:
Item Name
1*Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)
1*Option1: X12 ELRS V2.0 flight controller built-in SPI ELRS 2.4G receiver
4*RS0802 KV20000 brushless motor
1*Gemfan 1610-2 bi-blade propellers(4cw+4ccw)
1*Runcam Nano3 1/3 CMOS 800TVL camera
1*Onboard 5.8G Openvtx
1*1S parallel charging board
1*Propeller disassemble tool
1*Extra camera canopy
