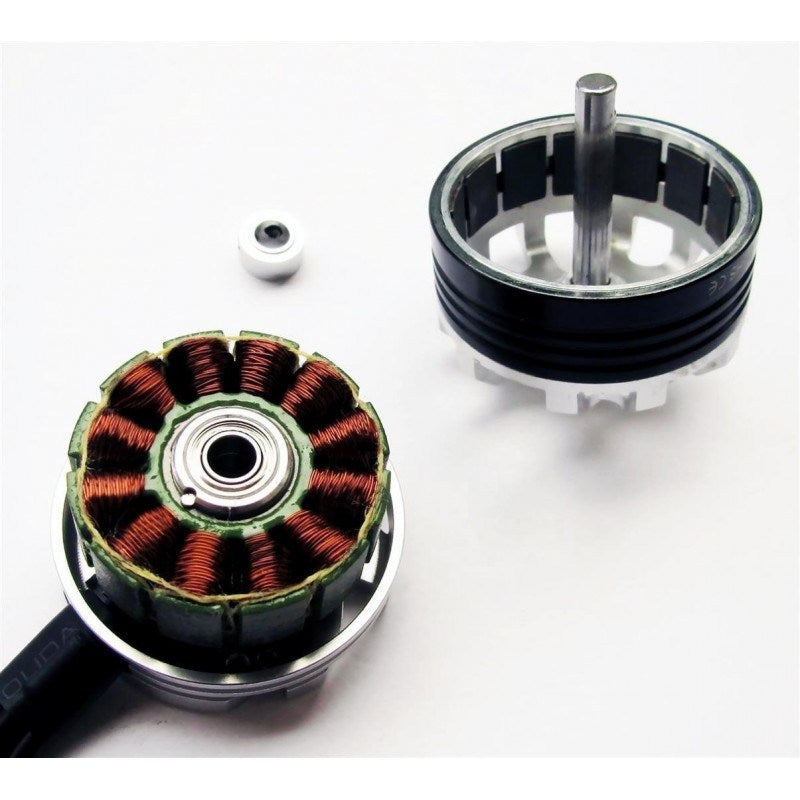

The new KDE Direct 3510XF-715 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and sUAS applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market:
(1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates.
(2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance.
(3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.
Motor includes 200°C, 15 AWG, 760mm silicone-wire leads and ф3.5mm 24K Bullet Connectors (pre-soldered to the motor leads and ESC female bullets included).
Specifications:
| Kv | 715 RPM/V |
| Maximum Continuous Current* | 30+ A (180 s) |
| Maximum Continuous Power* | 665+ W (180 s) |
| Maximum Efficiency | > 91% |
| Voltage Range | 14.8 V (4S LiPo) - 26.1 V (6S LiHV) |
| Io (@10V) | 0.2 A |
| Rm (Wind Resistance) | 0.105 Ω |
| Stator Poles | 12 (12S14P) |
| Magnetic Poles | 14 (12S14P) |
| Bearings | Triple, MR105ZZ, 625ZZ |
| Mount Pattern | M4/3 x ф25 mm, M3/2.5 x ф32 mm |
| Stator Class | 3510, 0.2 mm Japanese |
| Shaft Diameter | ф4 mm (ф5 mm Internal) |
| Shaft Length | 5.5 mm |
| Motor Diameter | ф42.2 mm |
| Motor Length | 35 mm |
| Motor Weight | 120 g (175 g with Wires/Bullets) |
| Propeller Blade Size | Up to 15.5"-TP (15.5"-DP Maximum on 6S) |
| Motor Timing | 22° - 30° |
| ESC PWM Rate | 16 - 32 kHz (600 Hz) |
