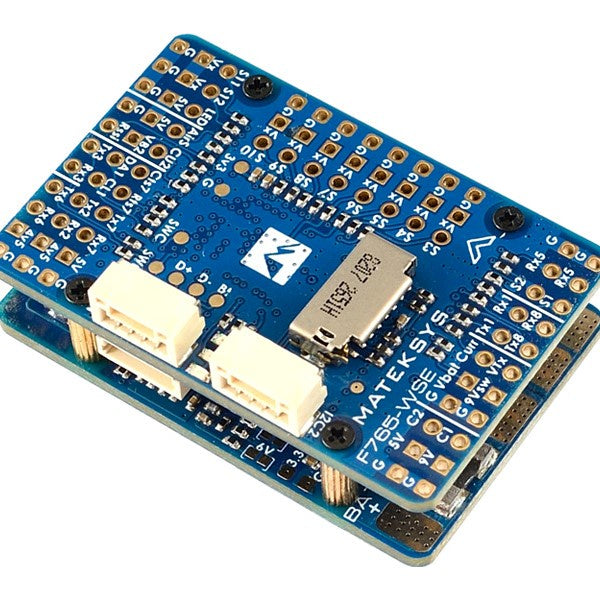

The Matek Flight Controller F765-WSE is one of the best flight controllers on the fpv wing market. Loaded with an array of features and tons of room for peripherals, this board lets you choose how you want to fly
FC Specifications
- MCU: STM32F765VIH6, 216MHz , 512KB RAM, 2MB Flash
- IMU: ICM42688-P (SPI4)
- Baro: DPS310 (I2C2)
- OSD: AT7456E (SPI2)
- Blackbox: MicroSD card slot (SDIO)
- 6.5x Uarts (1,2,3,Rx5,6,7,8) with built-in inversion.
- 1x Softserial1_Tx (INAV)
- 12x PWM outputs (S1~S10 support Dshot)
- 6x ADC (VBAT, Current, RSSI, Analog Airspeed, VB2, CU2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 2x I2C
- 1x CAN
- USB/Beep Extender with Type-C(USB2.0)
- Dual Camera Inputs switch
- 9V(12V) for VTX power switch
- High-precision Current Sense, 220A range
- ADC VB2 voltage divider: 1K:20K
- ADC AirSpeed voltage divider: 20K:20K
- Static power 160mA@5V
FC Firmware
- INAV: MATEKF765SE
- ArduPilot: MATEKF765SE
PDB
- Input voltage range: 6.8~30V (2~6S LiPo)
- 1x ESC power pads
- Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
- Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
- Sense resistor: 90A continuous, 220A peak
BEC 5V output
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED Strip, Buzzer, GPS module, Airspeed
- Continuous current: 2 Amps, Max.3A
BEC 9V /12V output
- Designed for Video Transmitter, Camera, Gimbal etc.
- Continuous current: 2 Amps, Max.3A
- 12V option with Jumper pad
- for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
- Designed for Servos
- Voltage adjustable, 5V Default, 6V or 7.2V via jumper
- Continuous current: 8 Amps, Max.10A
- for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
- Designed for Baro / Compass module and external 3.3V peripherals
- Linear Regulator
- Continuous current: 200mA
Physical

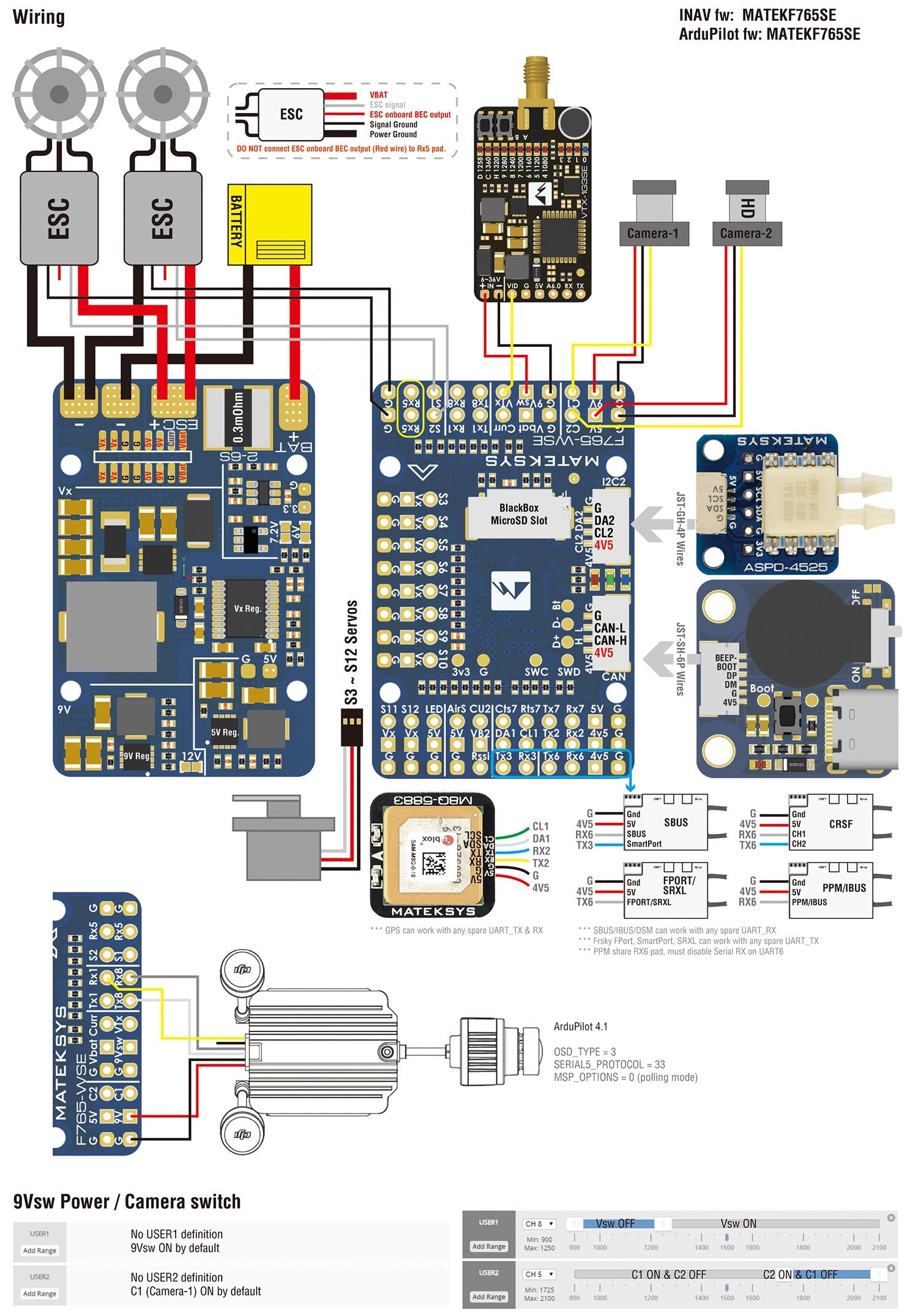

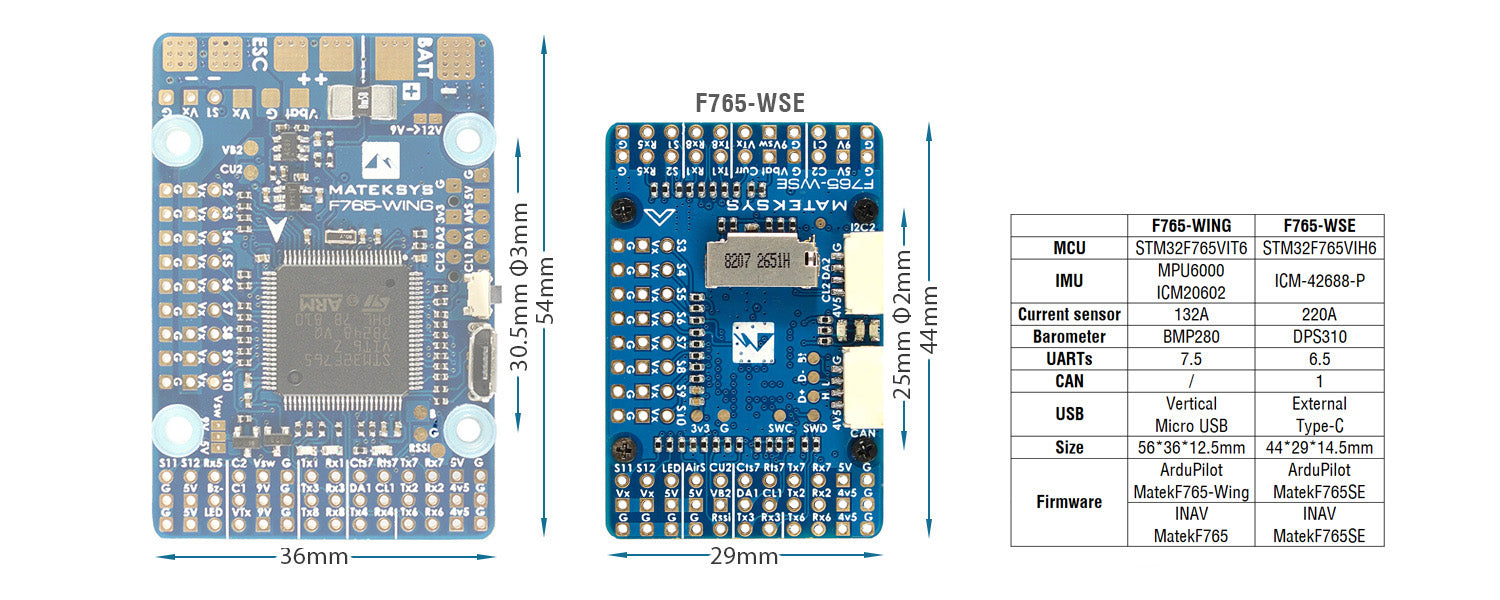

- Mounting: 25 x 25mm, Φ2mm

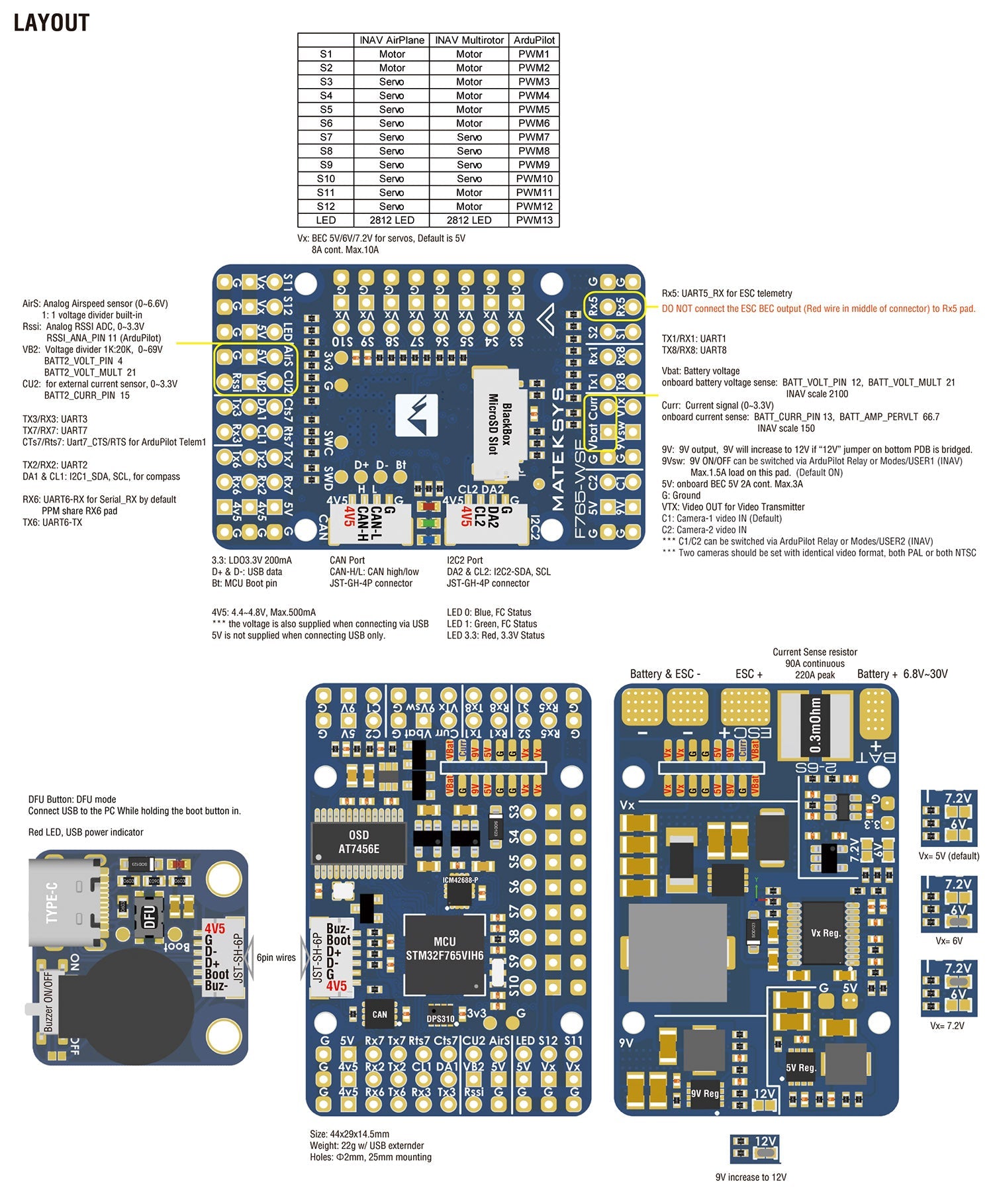

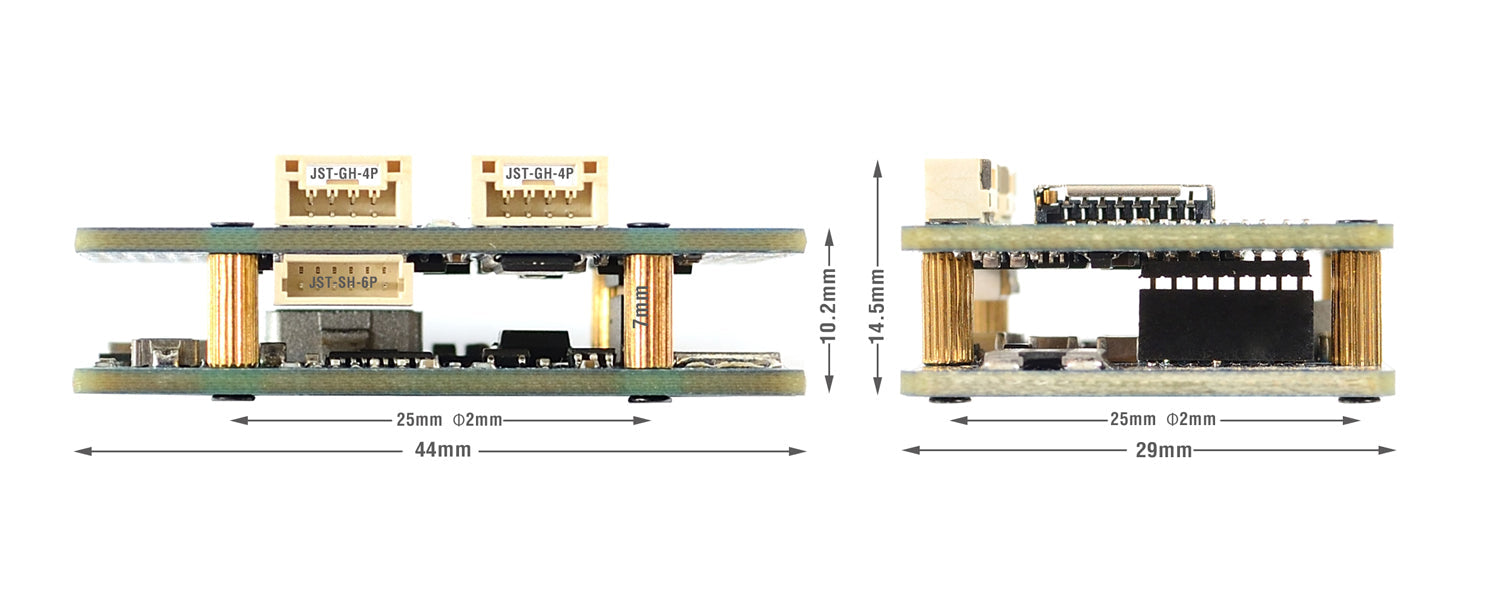

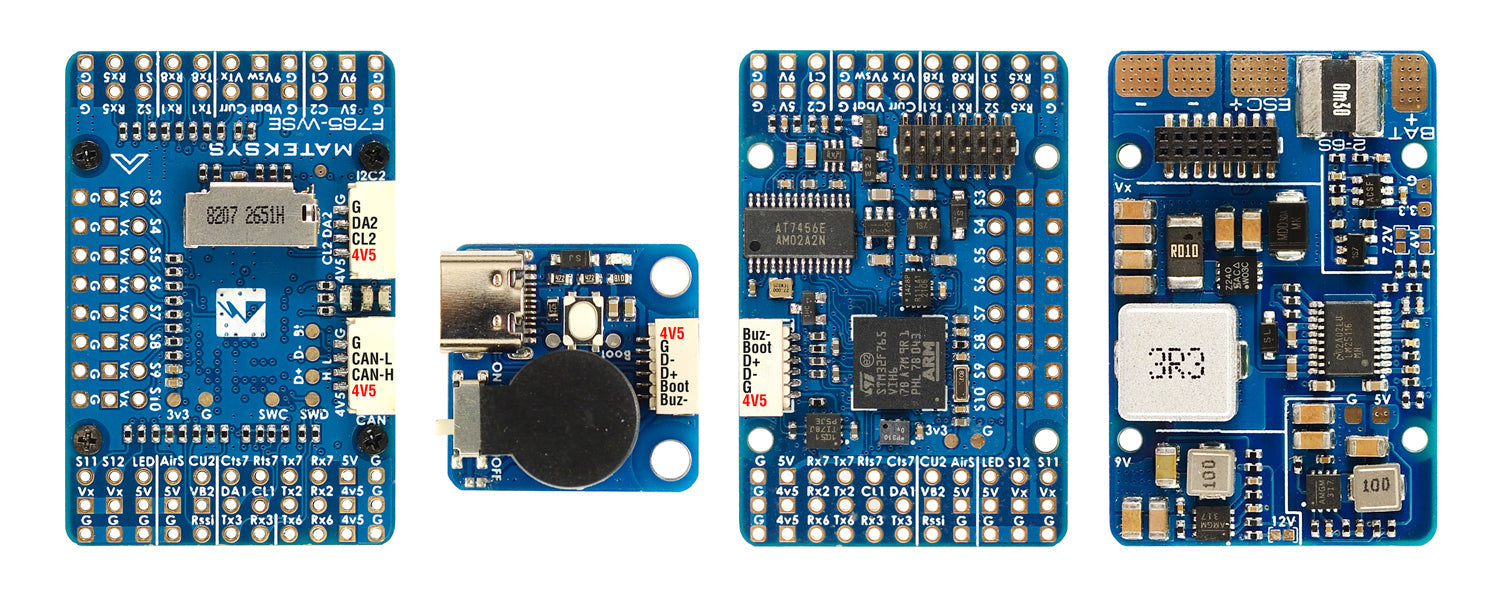

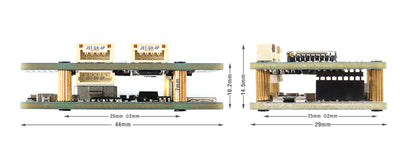

- Dimensions: 44 x 29 x 14.5 mm
- Weight: 22g w/ USB/buzzer adapter
Including
- 1x F765-WSE
- 1x USB(Type-C)/Beep (Passive buzzer) Extender
- 2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
- 1x 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
- 1x Rubycon ZLH 35V 470uF capacitor

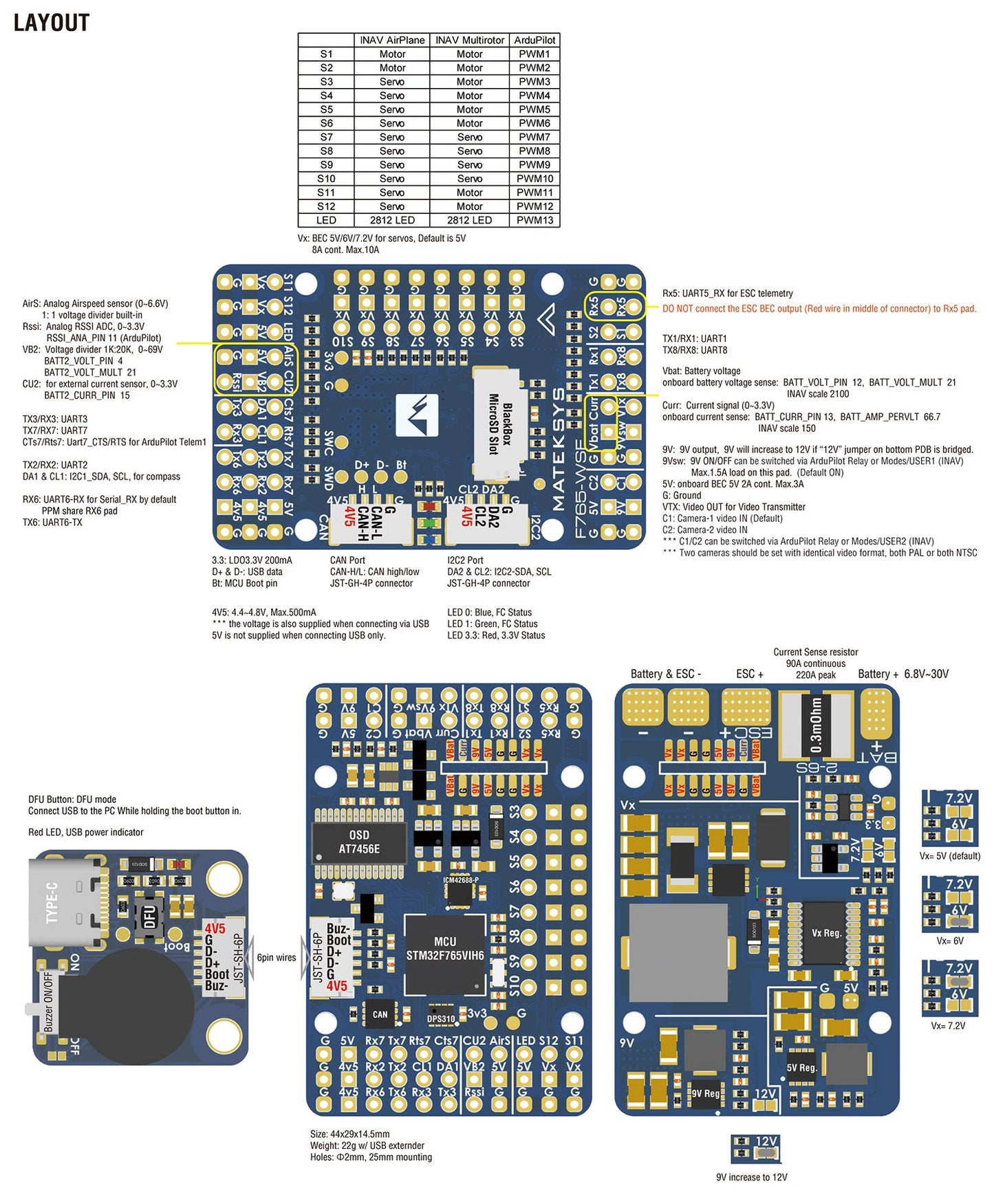

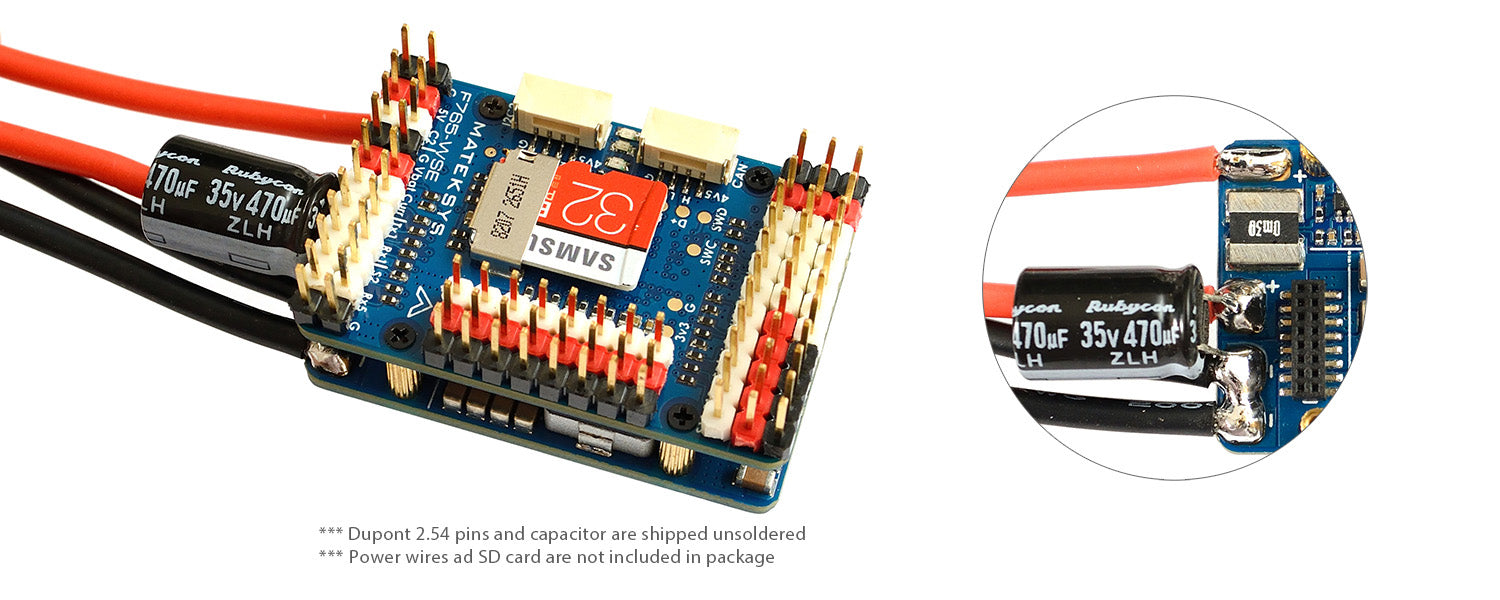

- Dupont 2.54 pins (Board is shipped unsoldered)
