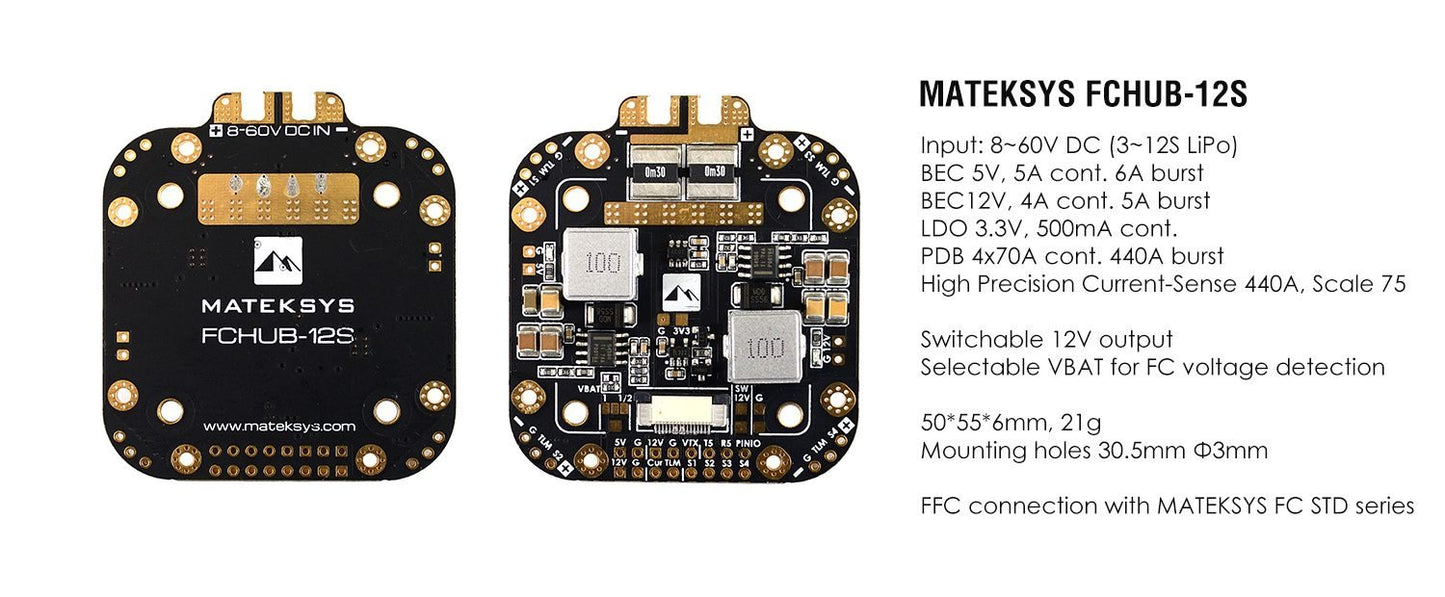

Matek XCLASS PDB 8-60v FCHUB-12S

PDB

• Input voltage range: 8~60V (3~12S LiPo)
• 4x70A cont, 4x110A burst
• 4x ESC power /signal/ telemetry pads
• Current Senor: 440A,  3.3V ADC,  Scale 75
• 2x LED indicators for 5V, 12V

FFC connection

• Compatible with MATEKSYS FC F405-STD, F722-STD
• VTX: Video Transmitter signal
• T5 & R5: TX5 and RX5 of F405-STD/F722-STD

BEC 5V output (5V pad)

• Voltage: 5.0 +/- 0.1VDC
• Continuous current 5 Amps,  Max.6A
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

BEC 12V output (12V pad)

• Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
• Continuous current 4 Amps,  Max.5A
• Input voltage<12V,  Output voltage = Input voltage
• Probably there is audible sound in the BEC12V inductor when Input voltage<12V
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

Switchable 12V output (SW12V pad)

• 12V ON/OFF can be switched via PINIO
• can be use for powering VTX,LED etc.

BEC 3.3V output

• Linear Regulator
• Continuous current: 500mA

Physical

• Mounting: 30.5 x 30.5mm, Φ3mm
• Dimensions: 55 x 50 x 6 mm
• Weight: 21g
