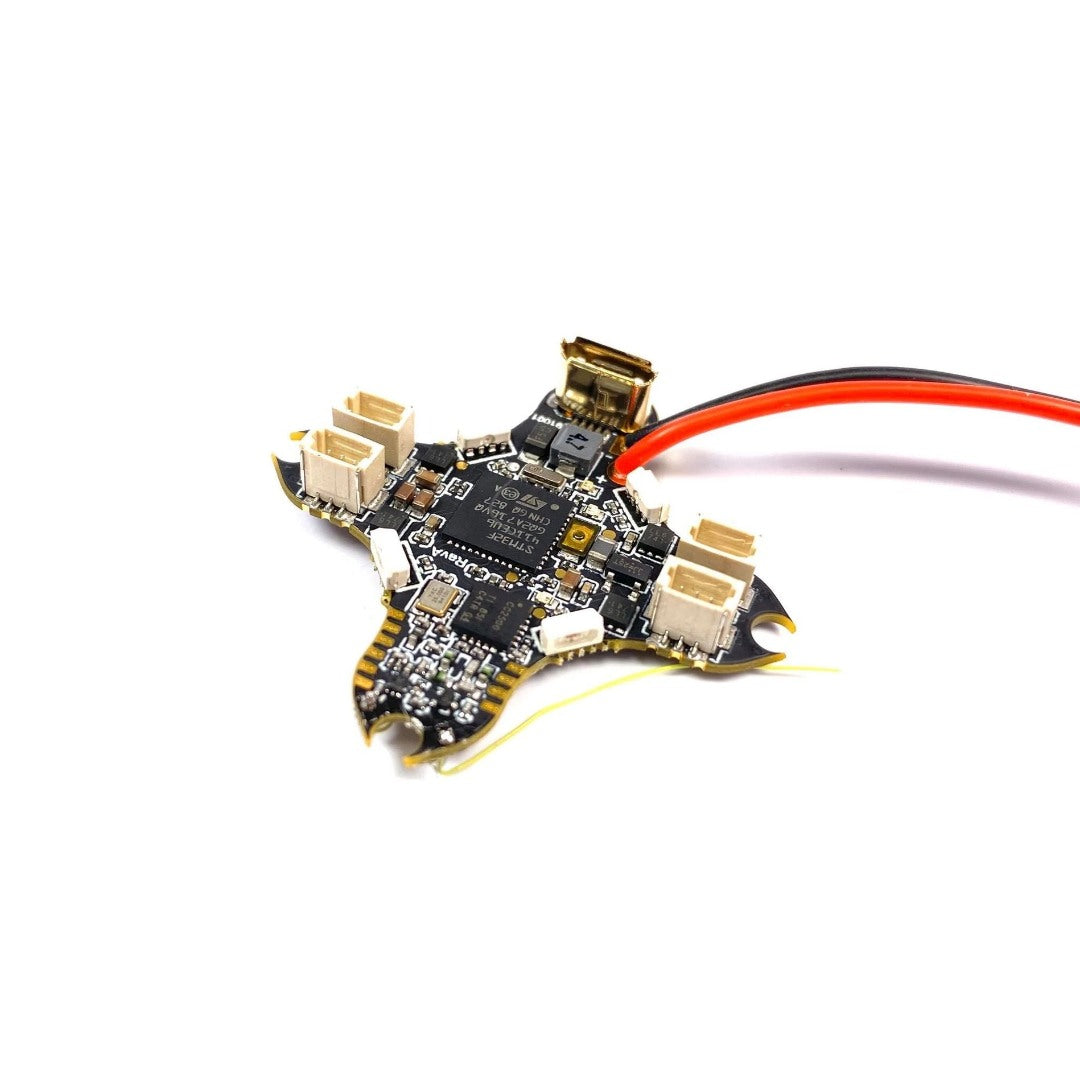

NewBeeDrone HummingBird F4 Pro Flight Controller

Specification:

• STM-F411 MCU for the main controller (Preloaded with Betaflight)
• Support 1S battery ONLY
• Current sensor onboard
• ESC-12A Per Motor Channel BB21 MCU
• BlHeliS Support DShot(150 300 600) Multishot
• Gyro- IMU6000
• Onboard Sideway RGB LED controlled by Betaflight
• Support BeeSign signal compatible with NBD VTX-Camera System
• Onboard Diversity SPI CC2500 Receiver(Frsky D8 D16, Futaba S-FHSS)
• MotorPlug JST1.0
• NBD OSD(Betaflight OSD Compatible)
• 5V 1A Power support for external VTX Camera Or Receiver.
• Weight: 3.77g include power cable and PH2.0 Plug

BeeSign:
BeeSign is a protocol created by the NewBeeDrone engineering team. It is used to communicate between the flight controller and the onboard VTX OSD (NewBeeDrone Mark1,2,3 Series Video Transmitter)

Downloads:

• ESC flashing guide
• Firmwares

Wire Diagram:
