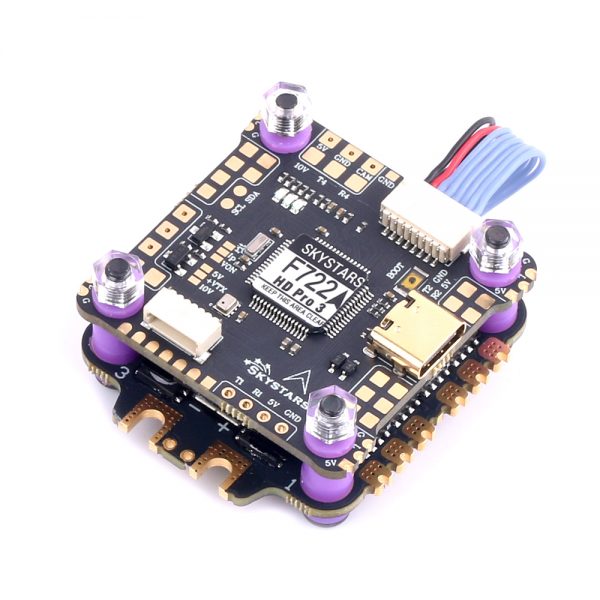

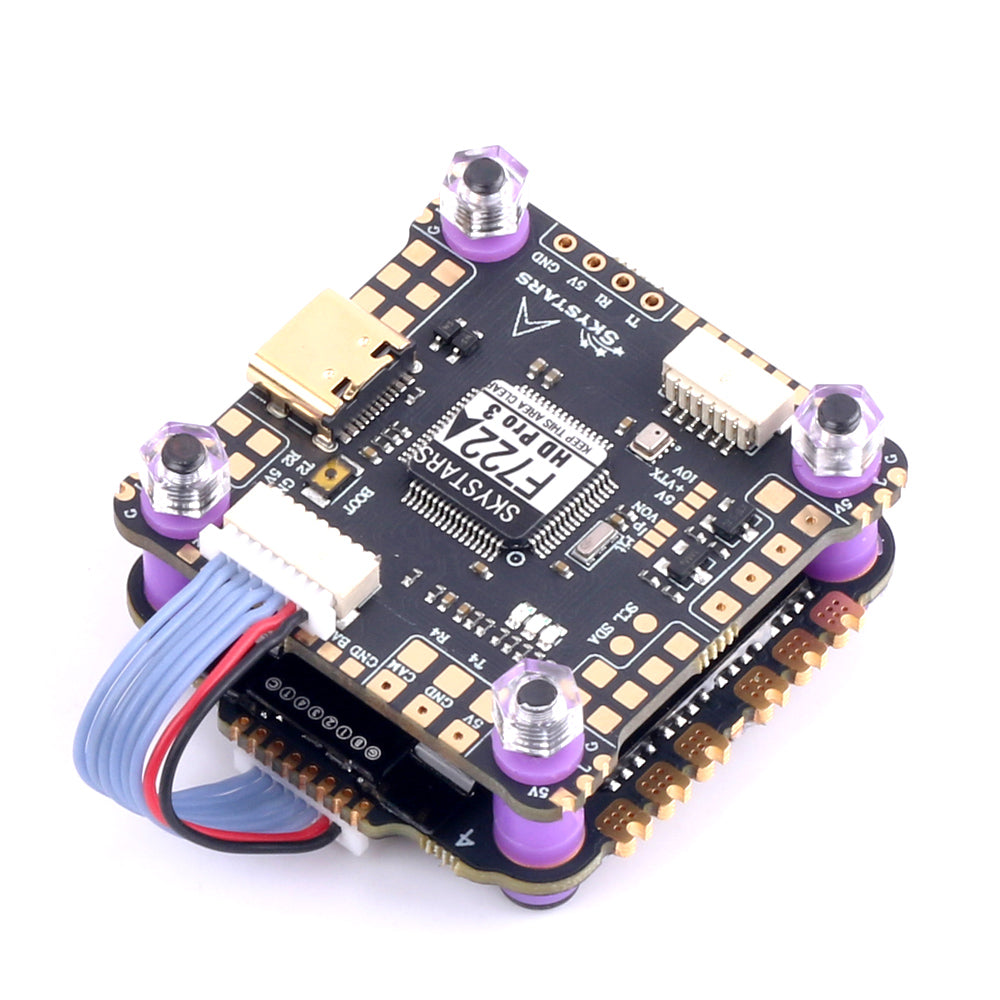

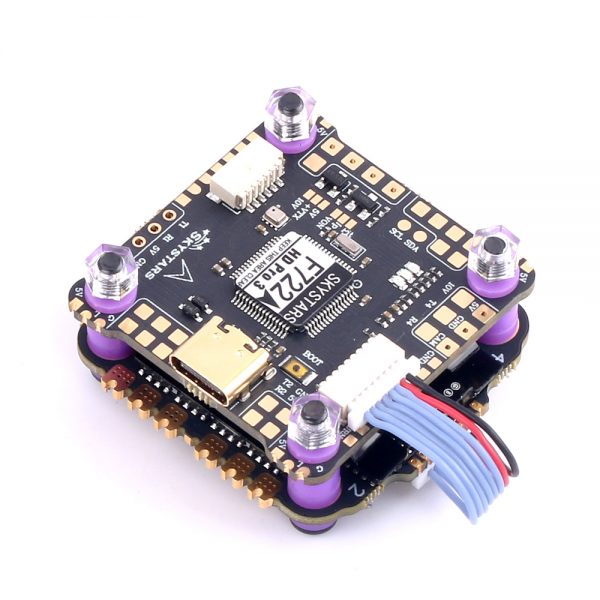

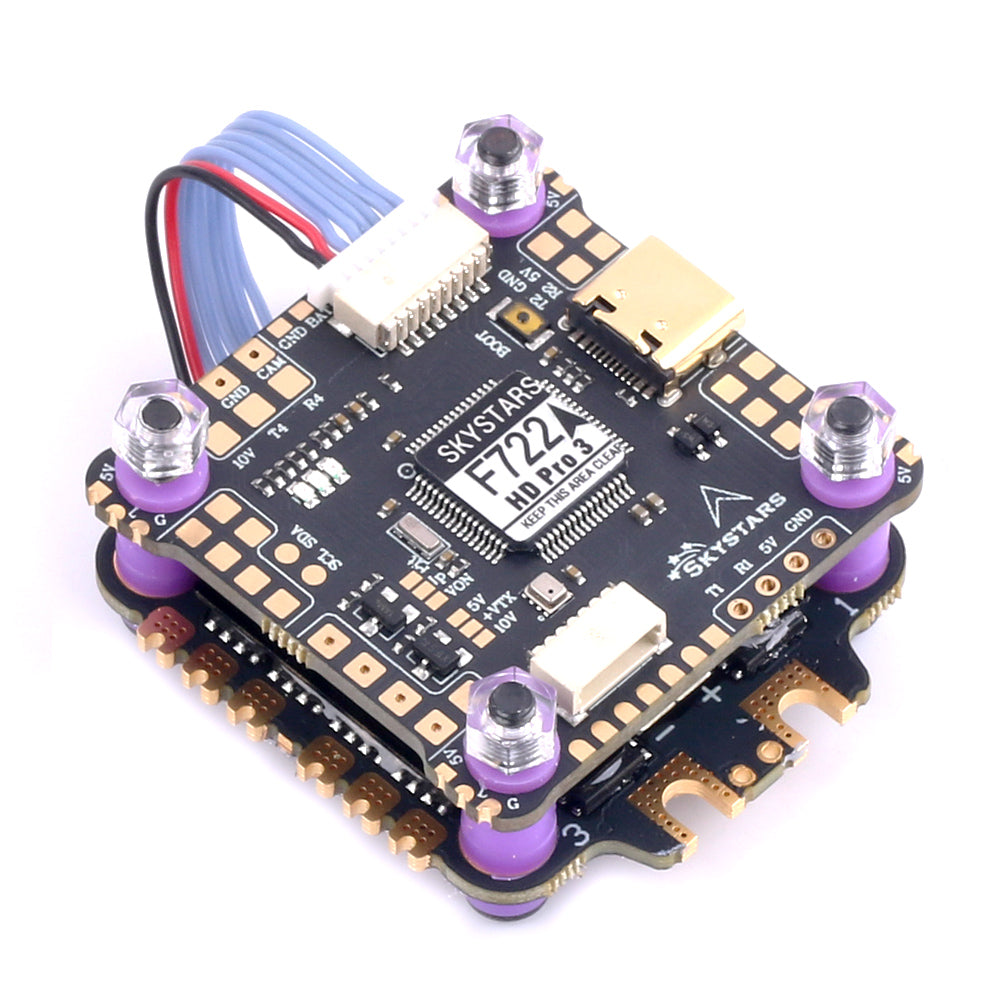

Skystars F7HD PRO3 Flight Controller OSD KO60 60A 128K Blheli_32 3-6S ESC Stack 30.5mm

SKYSTARS F7HD Pro3 Flight controller and KO60A Blheli-32 32bit 128K 4IN1 ESC fly tower stack
FC Specifications:
MCU: STM32F722RGT6 216MHz
Gyroscope: MPU6000
Baro:Bmp280
OSD: Betaflight SPI OSD DJI HD OSD(UART6)
Black box: 16MB
6x Uarts: UART 1/2/3/4/5/6
4x PWM outputs
1x I2C
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
USB Type-C(USB2.0)
1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
VTX 10V/Vbat filtered power ON/OFF switch
DJI FPV OSD is supported by any spare UART
LED: 4 LED independent pads, support WS2812 programming lamp output.
Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
Power:
Input voltage: 3-6S
BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
LDO 3.3V: Max.250mA
FC Firmware:
BetaFlight firmware: SKYSTARSF722Pro
INAV firmware:SKYSTARSF722HD
Mounting:
Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
External size 39mm × 39mm
Flight control weight: 6.9g
Flight control onboard voltage sensor.

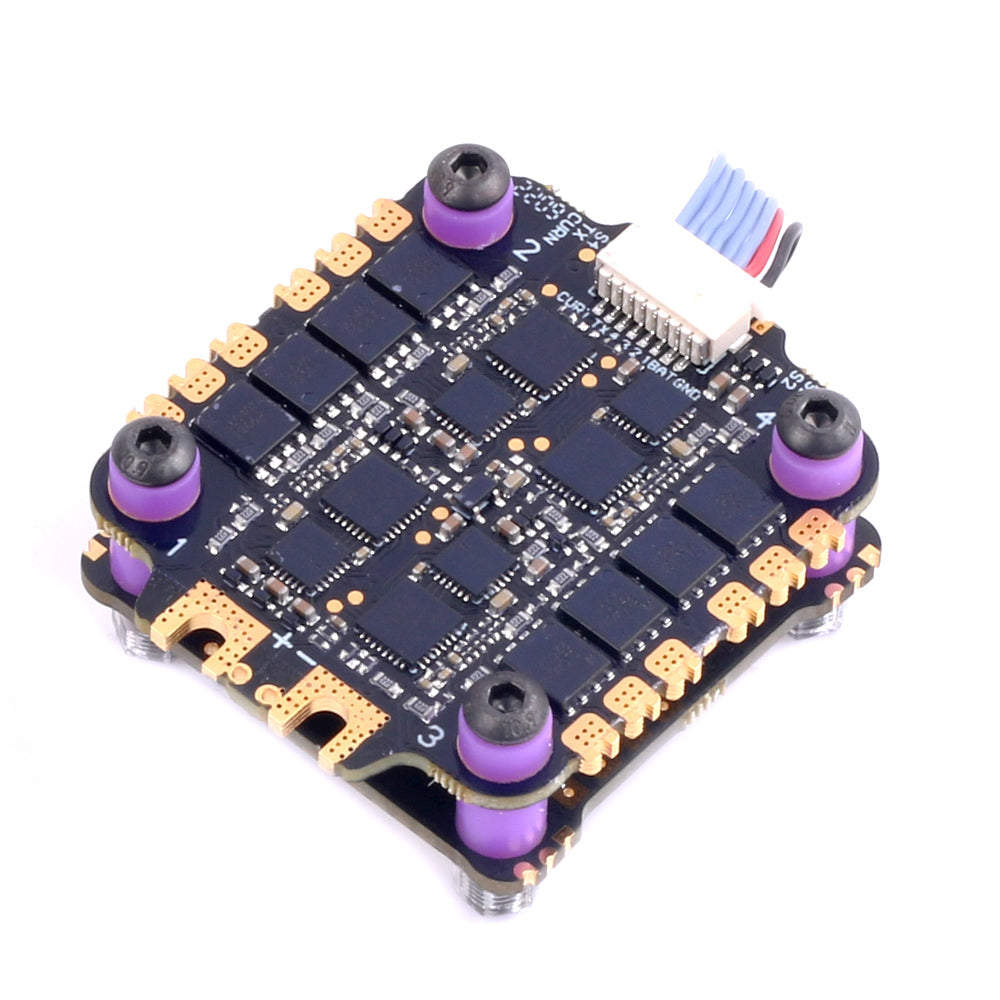

BL32- 60A 4IN1 3-6S ESC BLheli32 128K DShot1200 4-in-1 ESC:
Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
Power supply voltage: 3-6S (12-26V)
Continuous working current:  60A
No built-in 5V BEC output
Firmware: BLHELI 32 ESC
Screw hole spacing: 30.5*30.5MM
Aperture: 4MM
Weight: 14.6g
– The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilises the battery voltage, and protects the flight control ESC precision components.
– EMI Shell provides stronger anti-interference capability.
Note: There is no difference in appearance between the 45A and 60A ESCs, which can be distinguished from the MOS tube.
Including
1x F7HD Pro3 FC
1x KO60 128K BL32 4IN1 ESC
8x Silicon grommets M4 to M3
2x JST-SH1.0_8pin cable, 4cm
1x JST-GH-6P cable for DJI port, 10cm
