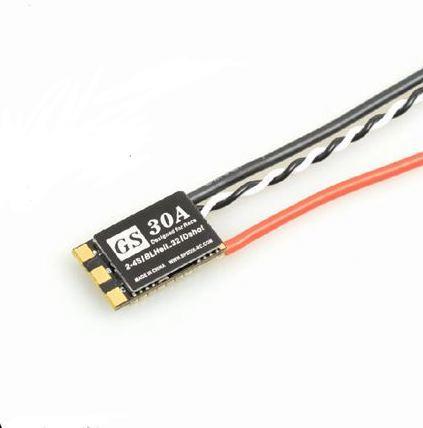

Spedix GS30 30A Dshot1200 BlHeli 32 bit ESC
Spedix GS30 30A Dshot1200 BlHeli 32 bit ESC

Spedix GS30 30A Dshot1200 BlHeli 32 bit ESC

The tradition continues with small powerful ESC's from Spedix The latest offering is a small 30A Bl_heli...
Vendor: SPEDIX
Availability: Out Of Stock
$19.72
$19.72
Subtotal: $19.72
Spedix GS30 30A Dshot1200 BlHeli 32 bit ESC

Spedix GS30 30A Dshot1200 BlHeli 32 bit ESC

$19.72

Spedix GS30 30A Dshot1200 BlHeli 32 bit ESC

$19.72

The tradition continues with small powerful ESC's from Spedix
The latest offering is a small 30A Bl_heli 32 ESC

Programmable pwm frequency, up to 48kHz, that can run motors even smoother, and also allows for moving of small but potentially disturbing humps in the throttle response. All ESCs have these bumps, with BLHeli_32 they can now be moved in the rpm range, to a place where the system has low sensitivity to them.
Auto timing. Which is not the option to choose if you’re after max power. But if you want the most efficient running with very good robustness against desync, it is the perfect choice.
Voltage and current limiting. Which is implemented in the code, and will be supported on some ESCs. Voltage limiting is desirable for fixed wing crafts. And current limiting adds protection against ESC failure.
Programmable brake on stop force. Which allows control of the braking of fixed wing props.
Improved direction change in bidirectional mode.
More functionality coming in the future. Such as setup from the FC by using Dshot commands. Such as telemetry functionality. There is room to grow performance and functionality.
Runs D-Shot 1200 straight out of the box (up to at least a rate of 32kHz supported)

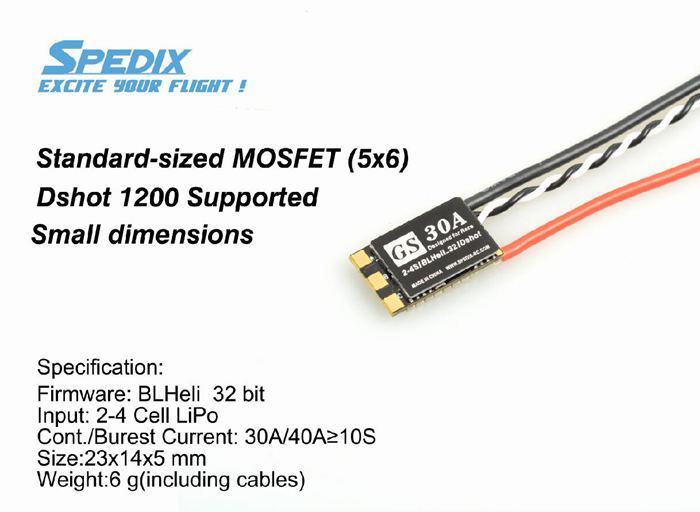

Stand-sized MOSFET
Firmware:BLHELI_32 bit
input :2-4S
Cont Current:30A
Burst current:40A
Size: 23x14x5mm
Weight : 6g
Support Dshot 1200

Wires and heat shrink already installed
