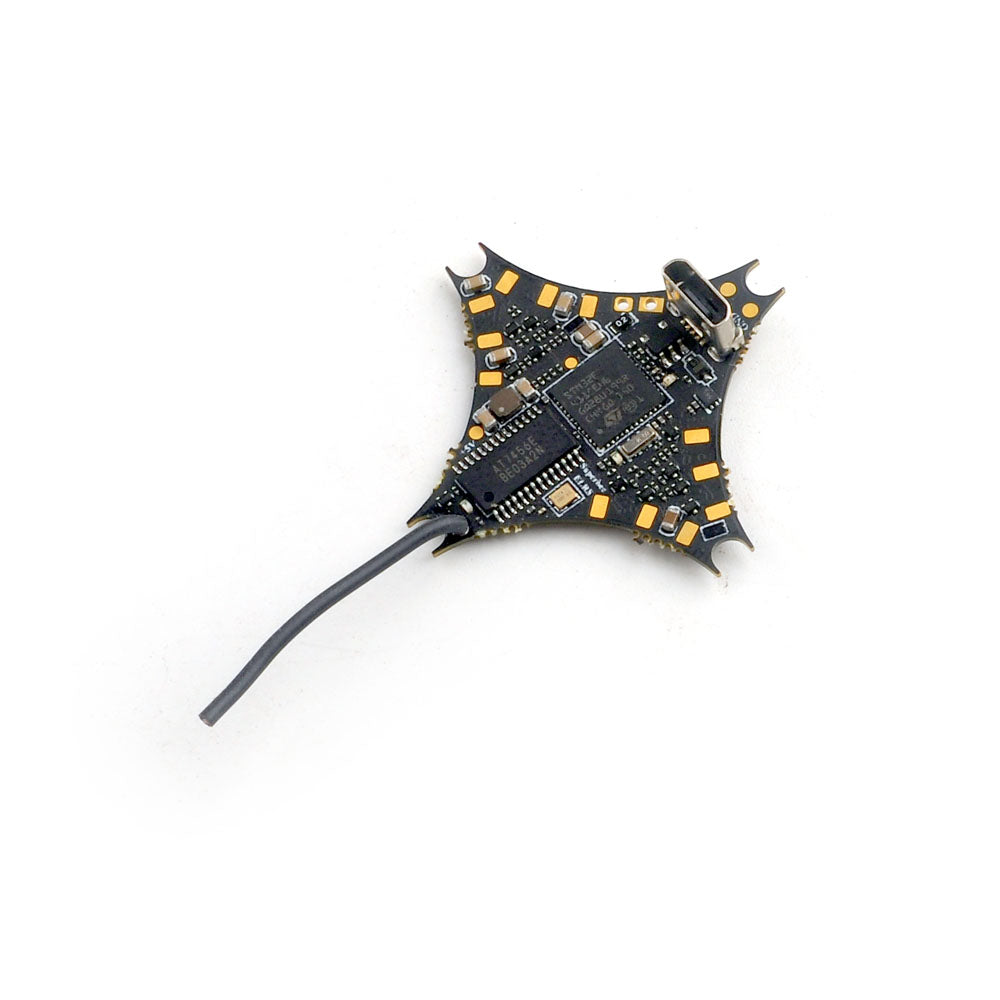

It's finally here! The ultralight 1s 5a aio of the future, coming in at a clean 2.8g. This is the aio that got the mobula6 HDZero whoop under 25 grams. If you plan on using it for an analog whoop build keep in mind that it doesn't include a vtx, but if you add a happymodel ovx300 vtx you are still looking at a sub 4g package!
Notes: Due to this flight controller is spare part for Mobula6 HDZERO, the original default device for OSD is “MSP”
If you bought this flight controller and used for analog camera, you may need some settings :
First connect to betaflight configurator , then move to CLI command, and enter “set osd_displayport_device = MAX7456”, then reconnect betaflight ,upload osd font.
| Flight controllerSuperbeeF4 Lite ELRS/FRSKY | SPI ELRS version Firmware target: CrazybeeF4SX1280 SPI FRSKY version Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection) Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV (2.8v~4.35v) Currents: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_8.HEX Default protocol: DSHOT150/DSHOT300/DSHOT600 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHzAntenna plug: IPEX Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module |
