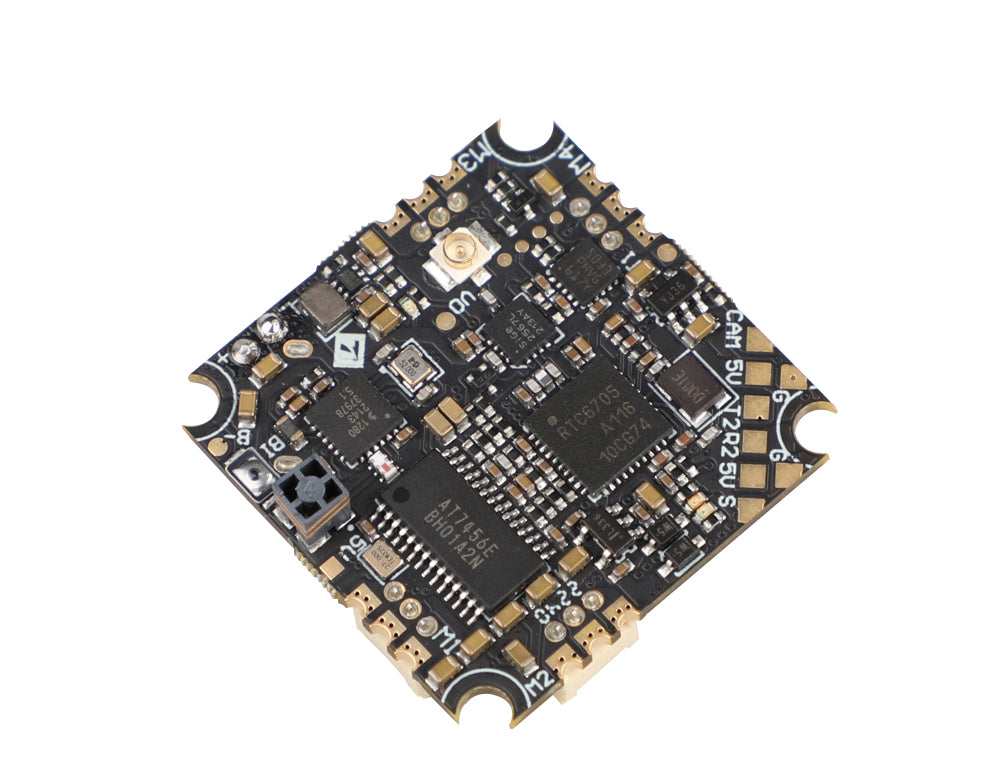

T-Motor F411 1S 6A Bluejay AIO Flight Controller W- Onboard ELRS 2.4G RX and Analog VTX - 25.5x25.5mm

Introducing a new 1S AIO from T-Motor which is perfect for small whoops and toothpick quads! Featuring Bluejay ESC Firmware which gives you access to features like bidirectional DShot for RPM filtering and up to 96KHz PWM frequency for increased flight time and motor smoothness. The AIO also is equipped with a built in ELRS 2.4GHz SPI receiver so you have all the latest features of this long range and low latency system and a 50mW Analog VTX making setup a breeze. Just connect your motors with the included connector plugs and solder in a camera and your up and flying.

Specifications

• MCU: STM32F411
• Input Voltage: 1S
• Continuous Current: 6A
• Peak Current: 7A
• ESC Firmware: Bluejay
• Blackbox: No
• Gyro: BMI270
• PWM Frequency: 24-96KHz
• Receiver: SPI ELRS 2.4GHz V2.0
• VTX: 37CH 50mW Smartaudio 1.0
• Stack Mounting 25.5x25.5mm
• Weight: 6.7g

Includes

• 1 x T-Motor F411 1S 6A Bluejay AIO Flight Controller W/ Onboard ELRS 2.4G RX and Analog VTX - 25.5x25.5mm
