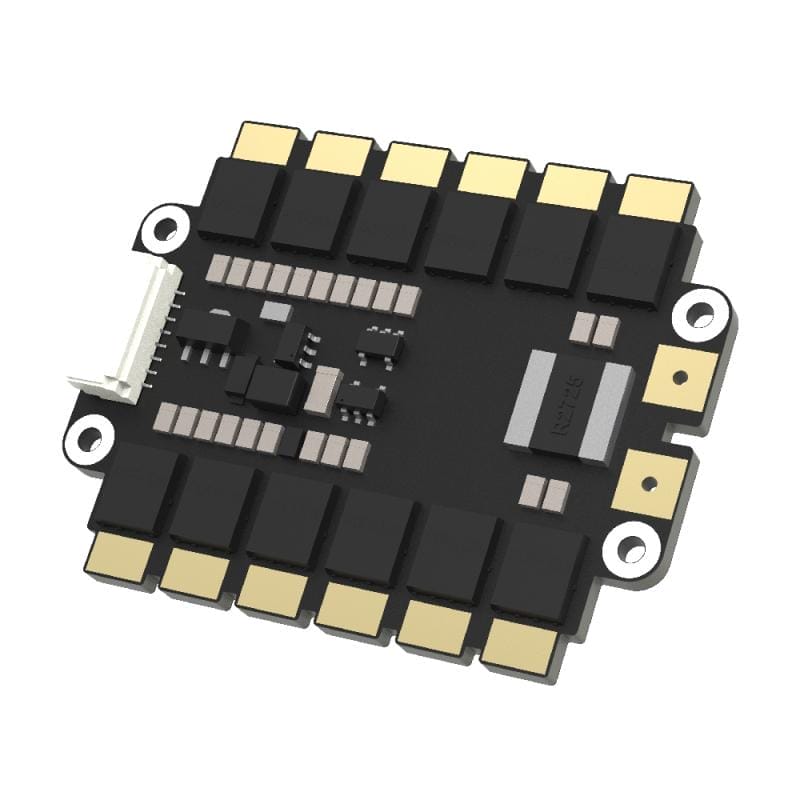

TBS Lucid F60A 6S AM32 4in1 ESC
The TBS Lucid ESC is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.
At the heart of the TBS Lucid flight stack is the latest generation AT32 microprocessors, and the innovative bracket mounting solution to achieve compatibility for both 30.5 x 30.5mm as well as 20 x 20mm mounting patterns.
ESC Specifications
- ESC Software: AlkaMotors32 (AM32)
- ESC Target: tbslu6s4in1
- Rated Current: 60A x 4, 300 seconds
- Peak Current: 70A x 4, 60 seconds
- Propellers: Up to 9″; over 7″ requires good airflow
- Input: 3-6S Lipo
- Protocol: Bi-directional Dshot 300/600, KISS ESC Telemetry
- ESC Current Port: Yes
- BEC: No
- Size: 34mm x 44mm
- Mounting: Gorilla-mount (39.5mm x 16.0mm) or brackets for 20x20mm, 30.5×30.5mm
- Weight: 13.81g (19g incl. brackets)
GORILLA MOUNT
Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.
Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.
