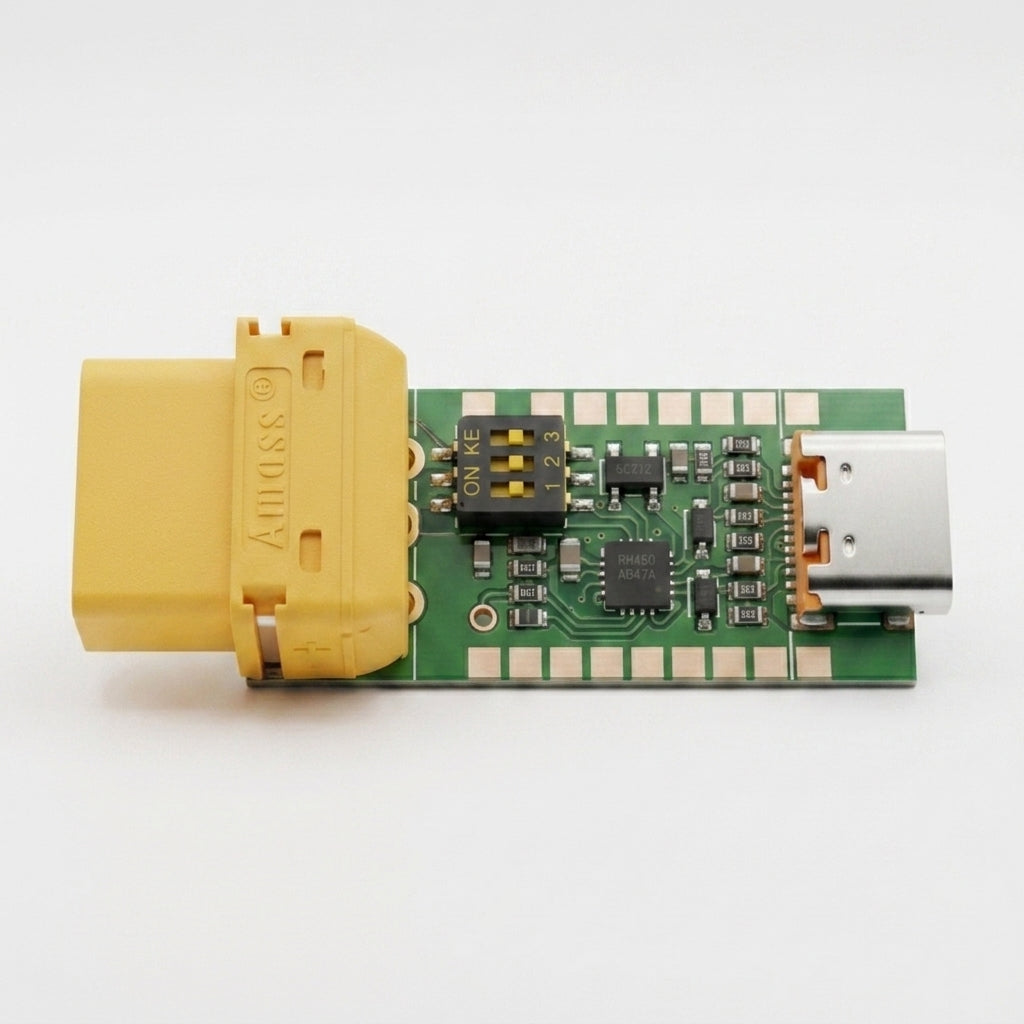

USB-C to XT60 Power Module | PD Fast Charge & Adjustable Output (5V–28V)

Turn your USB-C power bank into a versatile field power supply. This high-efficiency module converts USB Power Delivery (PD) into a stable XT60 output, allowing you to power chargers, soldering irons, and FPV gear anywhere.

Whether you're at the bench or deep in the field, this module bridges the gap between modern USB-C fast-charging tech and your XT60-equipped gear. With support for up to 140W (28V at 5A), it’s a must-have for any pilot's "go-bag."

Key Features

• Universal Fast Charge Support: Compatible with PD3.1, PD3.0, QC, AFC, and FCP protocols. It automatically negotiates the highest possible voltage from your power source.

• Selectable Voltage Range: Onboard DIP switches allow you to set precise output levels: 5V, 9V, 12V, 15V, 20V (Default), and 28V.

• High Power Output: Capable of delivering up to 5A, making it powerful enough for portable FPV chargers or powering your ground station.

• Intelligent Step-Down: If your power supply doesn't support your selected voltage, the module intelligently steps down to the next highest available protocol.

• Compact & Durable: Minimalist footprint that fits easily into a toolkit or can be integrated into custom 3D-printed enclosures.

Common Use Cases

• Field Charging: Power a portable charger (like the ISDT 608AC or M4 Pocket) from a PD power bank.

• Portable Soldering: Run your Pinecil or TS101 soldering iron at full power from a wall adapter or battery.

• Bench Testing: Safely provide specific voltages (12V, 15V, etc.) to FPV components without a bulky bench supply.

DIP Switch Voltage Settings

Important Safety Note: Always verify your output voltage with a multimeter before connecting sensitive electronics. Ensure only one voltage setting is selected at a time.

Technical Specifications

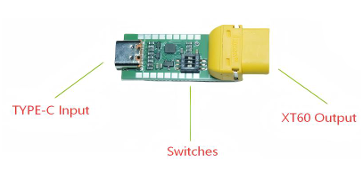

• Input: USB Type-C (Female)

• Output: XT60 (Male)

• Max Wattage: 140W (Source dependent)

• Max Current: 5A

• Protocols: PD 3.1 / 3.0, QC 2.0/3.0, AFC, FCP
