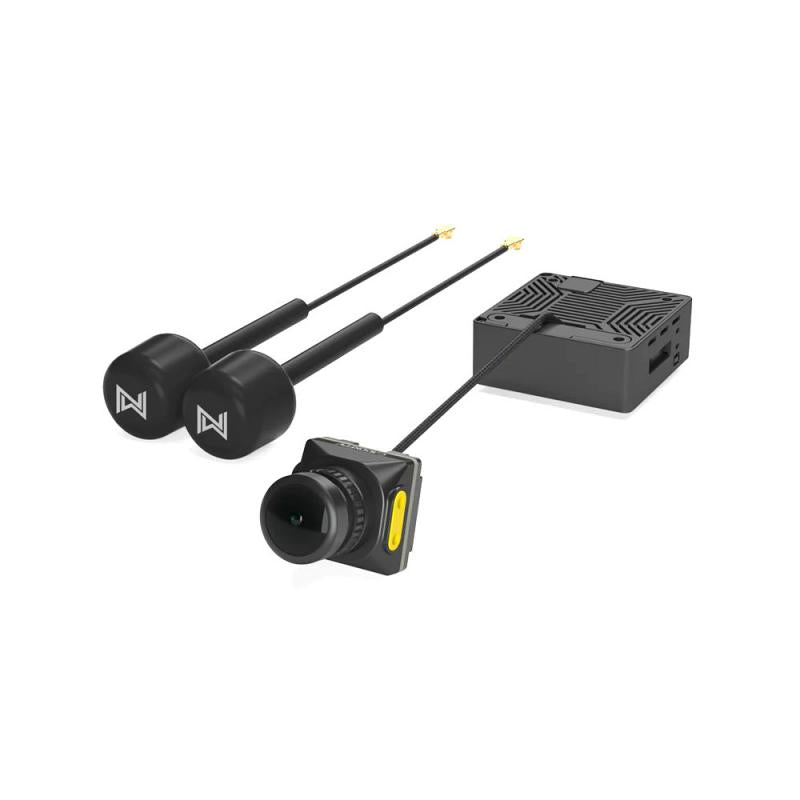

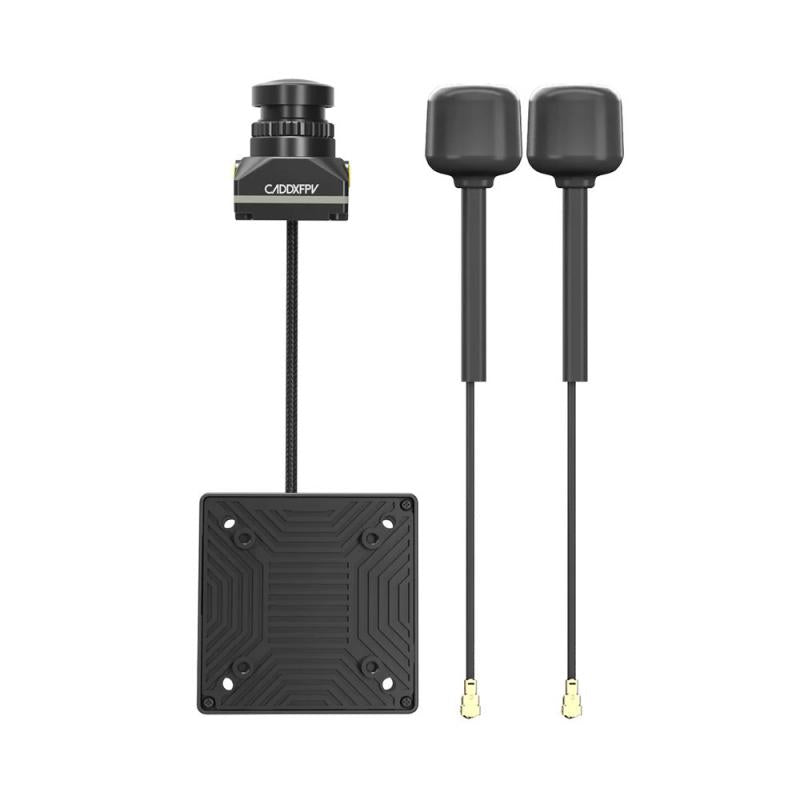

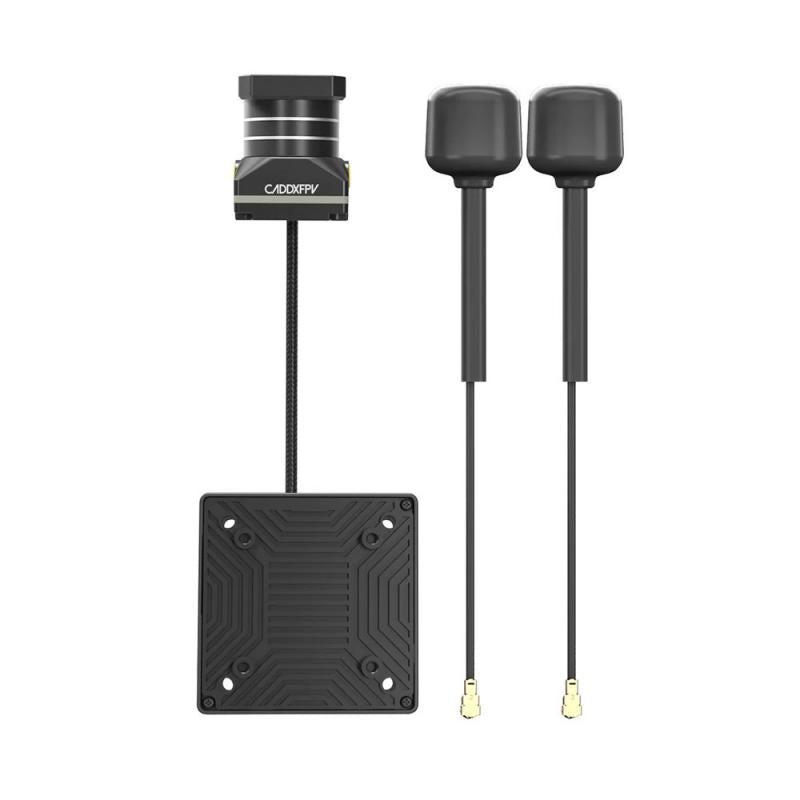

Walksnail Avatar HD Moonlight Kit

FEATURES

• 4k/60FPS
• Starlight Camera
• Built-in EIS
• Support Gyroflow
• Sd card
• FOV 160°
• Dual Antennas
• 7.4V-25.2V

Bullet Points:

• Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.

• Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.

• Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.

• Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

• Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.

• The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

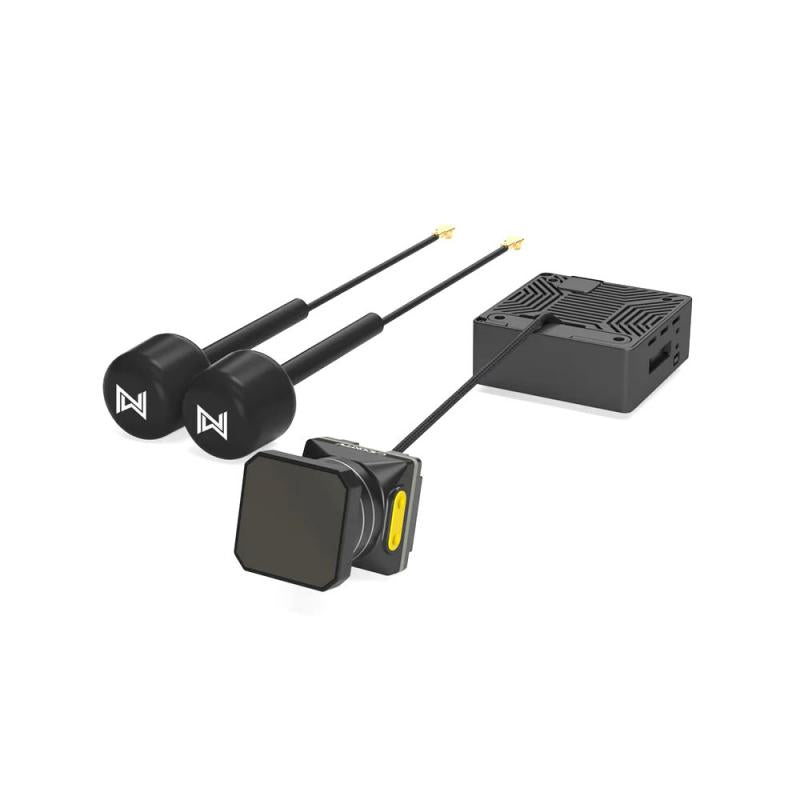

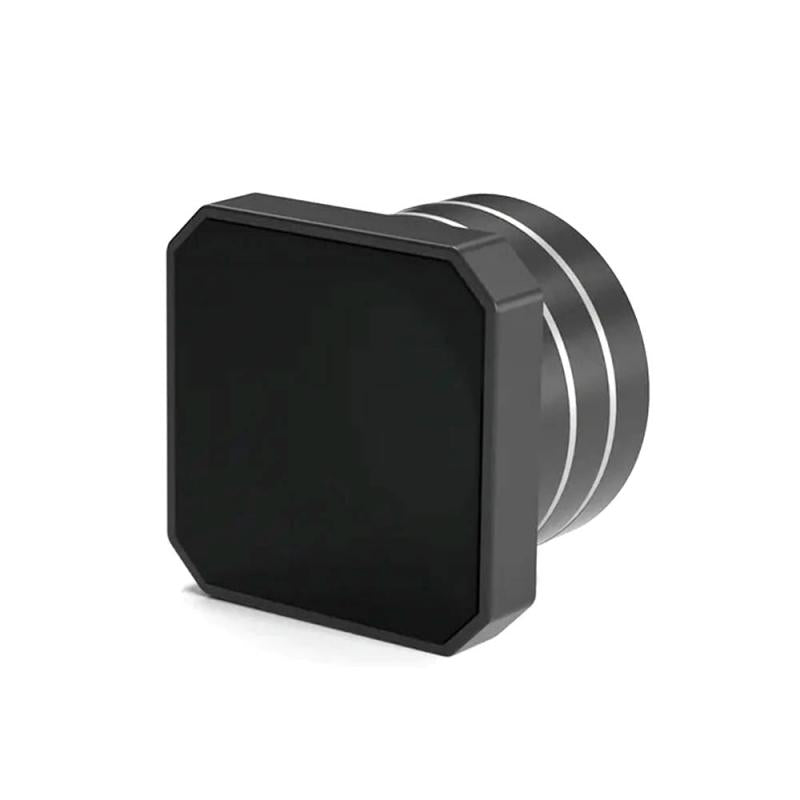

• Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.

Specifications

Model Moonlight kit

• Firmware name AvatarMoonlight_Sky_X.X.X
• Communication Frequency 5.725-5.850GHz
• Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
• 1/O Interface JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1
• Sensor Starlight sensor
• FOV Max 160°
• Aperture F2.1
• Shutter Rolling shutter
• ISO 100-25600
• Recording resolution 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
• Max Mbps 150Mbps
• Video format MP4 (H.264)
• 3D DNR Support
• Gyroflow Support
• Built-in EIS Support
• Wide Power Input 7.4V-25.2V
• Power consumption 12V@1.4A, 8V@2.2A
• Memory card type U3 MicroSD, Max 256G
• Camera size 19.6mm*19mm*24mm
• VTX size 15.3mm*34.5mm*34.5mm
• VTX Installation hole distance 20*20mm/25*25mm (M2)
• Weight  38.5g(Antenna not included)
• OSD Canvas mode
• Latency Average delay 22ms
• Antenna 2 (IPEX)

VTX Antenna

• model avatar V2 antenna
• Polarization LHCP
• Frequency range 5600MHz-6000MHz
• Average Gain 1.9dBi
• VSWR ＜1.5
• Input Impedance 50Ω
• Interface IPEX-1
• Dimension R15 X 45mm （without cable）
• Weight 2g

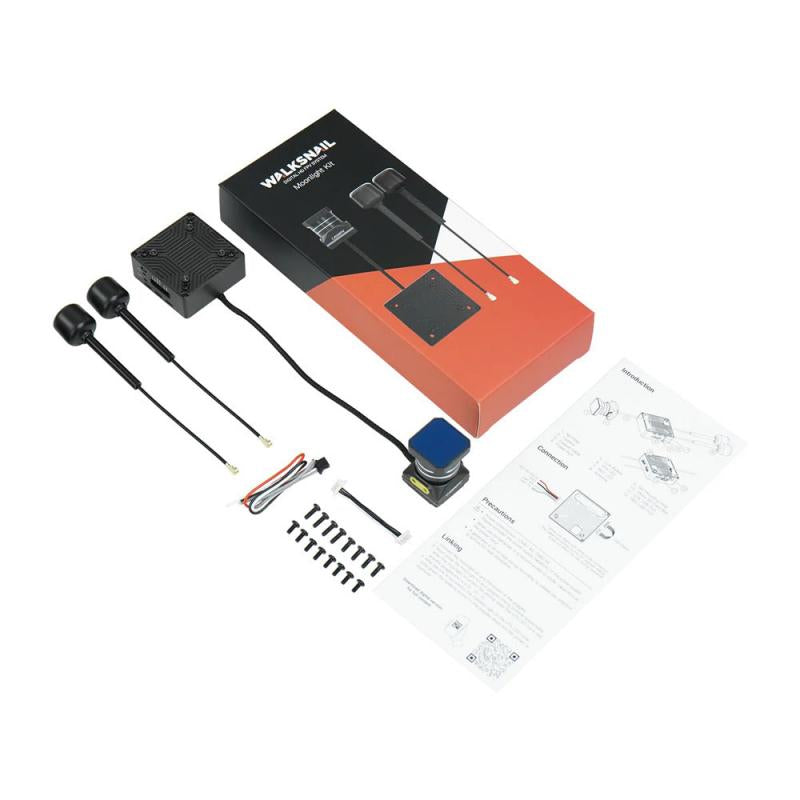

Packing List：
