Diatone

Roma F35 3.5inchFrame Specification:Wheelbase: 158mmWeight: 70gProp Siza: 3.5inchFC Mounting:20×20（M2/M3）/30.5×30.5mm（M3）Motor Mounting:12mm（M2）/16mm(M3)Camera Spacing:19/20mmMax Stack Height: 25mmTop Plate:2mmBottom Plate:3mmArm ：3mmRated Volitage（Recommendation）：4S~6Sbai Aluminum alloy：7075carbon fiber: T300 3K Roma F35 Vista HD 4S Camera: DJI Camera Antenna: MAMBA ULTRA LHCPVTX: CADDX VISTAFC: MAMBA DJI F722 MINI MK2ESC: MAMBA F40BLS_MINIMotor: MAMBA TOKA 2203.5 4200 KVAccessories:GF 3520 propeller *1Buzzer *1Battery belt *2M2 screw accessory...

Diatone has introduced a number of changes to the newly optimized Roma F5 V2, including the stiffness and strength of the frame arms. We've also strengthened the metal parts at the front of the frame and upgrade the alloy material from 7075 to titanium steel. For that extra high-end, tactile quality, we've treated the surface of the metal parts as well and changed the screws fixing the metal parts from M2 size to M3-sized specifications. For our digital HD fans, we haven't forgotten you! This time, we've; added mounts for the twin DJI antennas. Roma F5 V2's injection-molded protection parts not only add a dash of color with our new color options but also offer better protection for your gear. The GoPro mount angle can be adjusted for faster changes on the fly. For the best flying experience, the V2 comes in a slammed configuration for stability.Roma F5V2 VISTA HD 6SCamera: DJI Camera Antenna: MAMBA Ultra LHCPVTX: CADDX VISTAFlight control FC: MAMBA DJI F722MK2ESC: MAMBA F50 _BL32Motor: MAMBA TOKA 2306.5 1700KVGPS module: M8PLUS(Polar)/M220(DJI)Roma F5V2 Vista HD 4SCamera: DJI CameraAntenna: MAMBA Ultra LHCPVTX: CADDX VISTAFlight control FC: MAMBA DJI F722MK2ESC: MAMBA F50 _BL32Motor: MAMBA TOKA 2306.5 2450KVGPS module: M8PLUSAccessories:HQ...

TAYCAN 25  PNP VERSIONFrame Diagram LinkFC/ESC DiargamCamera: CADDX BABY RATEL 1.8mm Antenna: FOXEER Lolipop 3FC/ESC: MAMBA F411 25A AIOCONTINUE CURRENT: 25A×4Motor: MAMBA Racing 1404 5000KVVTX:MAMBA TX400  400MW                                                  ...

Description SKU DT-FK20-TINA  Name 2020  HEY! TINA 1.6 Frame Size 1.6inch Weight 20g Color Color: Default Grey (with 4 color free Ducts) MSRP 17.99 USD /PCS Describtion 1mm upper plate *1                  1mm lower plate *1                  Tina Duct*4                  Tpu camera mount *2           Tpu antenna mount*1                 Stack Mounting：AIO 25.5mm  Motor Mounting：9*9mm   ...

Diatone m*3 15 two way knurled aluminium standoff 10 pc pack

Diagram Link  Great way to clean up your build and give clean power to your tbs unify nano pro 32, with mounting point for crossfire nano and even a buzzerand we always love that diatone doesn't skimp on cables so you have extras Mamba...

Specifications KV: 10000Kv Input Voltage: 2S Prop: 2-3" Prop Shaft: 1.5mm Bearing: 2x4x1.5mm (681) Enameled Wire: Class H，180℃ Enameled Wire Silicone Wire: 24AWG×100mm Maximum Current：8.23A Maximum Power：66.4W Weight: 4.9g Maximum Current：8.23A Maximum Power：66.4W Includes1x Diatone Mamba 1103 10000Kv Micro Motor

The CUBE  FPV Racing Drone Frame Kit  + 3D Print Canopy 9gSpecification:Product name: CUBE Frame KITwheelbase: 120mmMaterial: Carbon Fiber + 3D Pirnt canopyProduct Weight: 8-11gRecommend Parts(Not included)Flight controller: 16mm Mounting holesMotor: 1103-1105Propeller: 2-3inch229/239   2-2.5inch329/339   3inchESC: 12APackage Included:1 x Frame KIT CUBE 229   Bottom Thickness：3  mm   CUBE 239   Bottom Thickness：4 ...

  SKU DT-FK19-MXC3-LED Name MX-C frame guard ring  - Led Product Size 85.4*29.5mm Weight Describtion kit List:Transparent duct *4LED power conversion board *1LED lamp belt *4Led Cable *7Double-sided tape *42*24mm black aluminum column *8

FC SpecificationsMCU: 216MHz STM32F722RET6 32BITIMU: MPU6000Baro: NoOSD: BF OSDBlacbox: 16M Flash MemoryUarts: 6SetESC Soft: Dshot300/600/1200ESC Telemetry: RX6LED: Blue&Orange for FC Status,,Green 9V,White 5V,Red 3.3VController: 4 Set 2812 LEDBluetooth: SpeedyBee APPSmartaudio: YesRSSI: YesBuzz: YesInput: 3~6S Lipo (12.6~25V)VTS Protection: YesBEC: 5V 2A & 9V 2A (Max...

Diatone GTR 548 5 Inch 4S PNF 230mm FPV Racer PNP w/ F4 OSD 40A TBS VTX Foxxer Predator Race Camera  Comes with tpu canopy and carbon top plate Specification: Brand Name: Diatone  Model: GT R548/568 5 Inch  PNF  Item Name: 230mm Wheelbase 5 Inch FPV Racing...

Mamba Toka 2203.5 3300KV Racing Motor GreenOverall Dimension:Φ28.9×29.4mmProp mounting shaft diameter:5mmInstallation hole position:16×16mm，M3Prop:  3.5inch                                                              Bearing：9*4*4                                              Shaft Diameter:4.0mmLead Wire Size：24AWG×190mmslots/poles:12N14PMagnet Wire: 240℃ Enameled WireStator Diamter：22mmStator Height:3.5mmRated Voltage:3~4S (12.6V~16.8V)                                             Peak Current: 29.78Aldle Current：10V/1.5~2.2A                                                                Maximum Power: 475.1WInternal Resistance：80mΩ

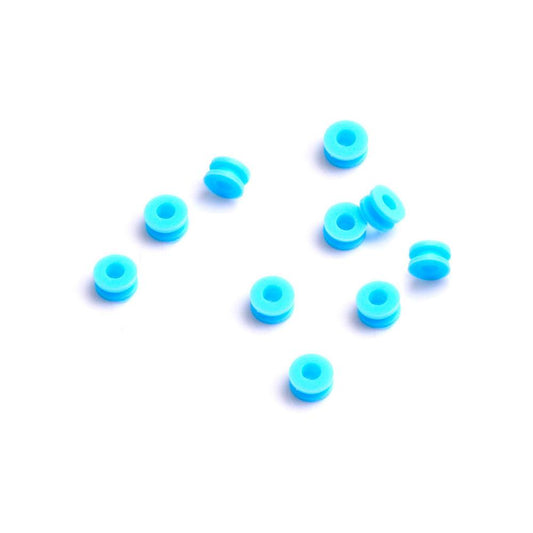

Spare / replacement gummy silicone rubber grommets for dampening stack vibrations. Mounting dimensions: outside diameter 4.6mm, inside diameter 3mm Includes 10x Silicone Rubber Damping Ring Grommets

Same frame used in the Ready to fly kit - strong and easy to build with included pdb. Includes all the cnc aluminium parts that make this a very solid build Customize this build yourself or look at our pre-built plug and play kit.  ...

Description Features: Diagram Racing Cinewhoop Integrated Design Easy Disassemble 360°Safety High Efficiency Dual HD Device Mount Camera: DJI CameraAntenna: MAMBA ULTRA LHCPVTX: CADDX VISTAFC: MAMBA AIO F722 35AESC: 35A 8BITMotor: MAMBA TOKA 1404 4000 KVAccessories:C25MK2 main Duct bracket *18mm camera shock mount *2Insta360 GO2 mounting mount *1CADDX PEANUT mounting *1GF D63 propeller *1Buzzer * 1Battery Strap with * 2M2...

Features：Diagram Racing Cinewhoop Integrated Design Easy Disassemble 360°Safety High Efficiency Dual HD Device Mount Camera: CADDX Baby Ratel 2Antenna: MAMBA ULTRA RHCPVTX: TBS PRO 32 NANOFC: MAMBA AIO F722 MK1ESC: 35A 8BITMotor: MAMBA TOKA 1404 4000 KVAccessories:C25MK2 main Duct bracket *18mm camera shock mount *2Insta360 GO2 mounting mount *1CADDX PEANUT mounting *1GF D63 propeller *1Buzzer * 1Battery Strap with * 2M2...

Description  Features: Racing Cinewhoop Integrated Design Easy Disassemble 360°Safety High Efficiency Dual HD Device Mount Wheelbase：111.5mmWeight：55gProp Size：2.5 inchFC Mounting:25.5×25.5（M2）Motor Mounting:9/12mm（M2）Camera Spacing:19/20mmMax Stack Height: 16mmTop Plate:1mmmotor protection board：1.5mmRated Volitage（Recommendation）：4S(650~850mAh)carbon fiber: T300 3KRecommended Motor Size: 13-14 Series motor Color Option: White/Purple/Pink/Blue

Note：Because STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation. Diagram Link From Help Centre LinkFIRMWARE TARGET ： MAMBA F722 The Stack can fit both M2/M3 Mounting hole Framekit （Adaptor...

MAMBA F722S F60PRO 3-6S FLIGHT CONTROLLER STACKFIRMWARE TARGET ： MAMBA F722 （LEGACY）  Diagram Link From Help Centre LinkNote：Because STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.FC SpecificationsMCU: 216MHz...

This is a must if you have the dji air unit in a taycan - plug it in and have access to the air unit now at a convenient angle.upgrading the air unit will be so much easier.
