Note：Because STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.
 Diagram Link From Help Centre Link
FIRMWARE TARGET ： MAMBA F722Â
The Stack can fit both M2/M3 Mounting hole Framekit （Adaptor inside）
Â
FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Uarts: 6Set
ESC Soft: Dshot300/600/
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
UARTS:6 Ports
DJI PORT SUPPORT
BEC: 5V 2A&9V 1.5AÂ Â
FC Firmware
BetaFlight
Target: MAMBA F722Â
Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 3.9g
Mamba F35 35A ESC
Item name:Â Mamba F35HV ESCÂ
Input voltage:Â Â 3-6S LIPO (12.5- 25V)
Burst Curr :200A  Â
MAX:45A(8S)
BEC:Â NOÂ Â Â Â Â Â Â Â Â Â
Mounting Size: 20×20mm,⌀ 2             Â
Mounting Hole: M2Â Â Â Â Â Â Â Â
Weight: 7g
Package Included:

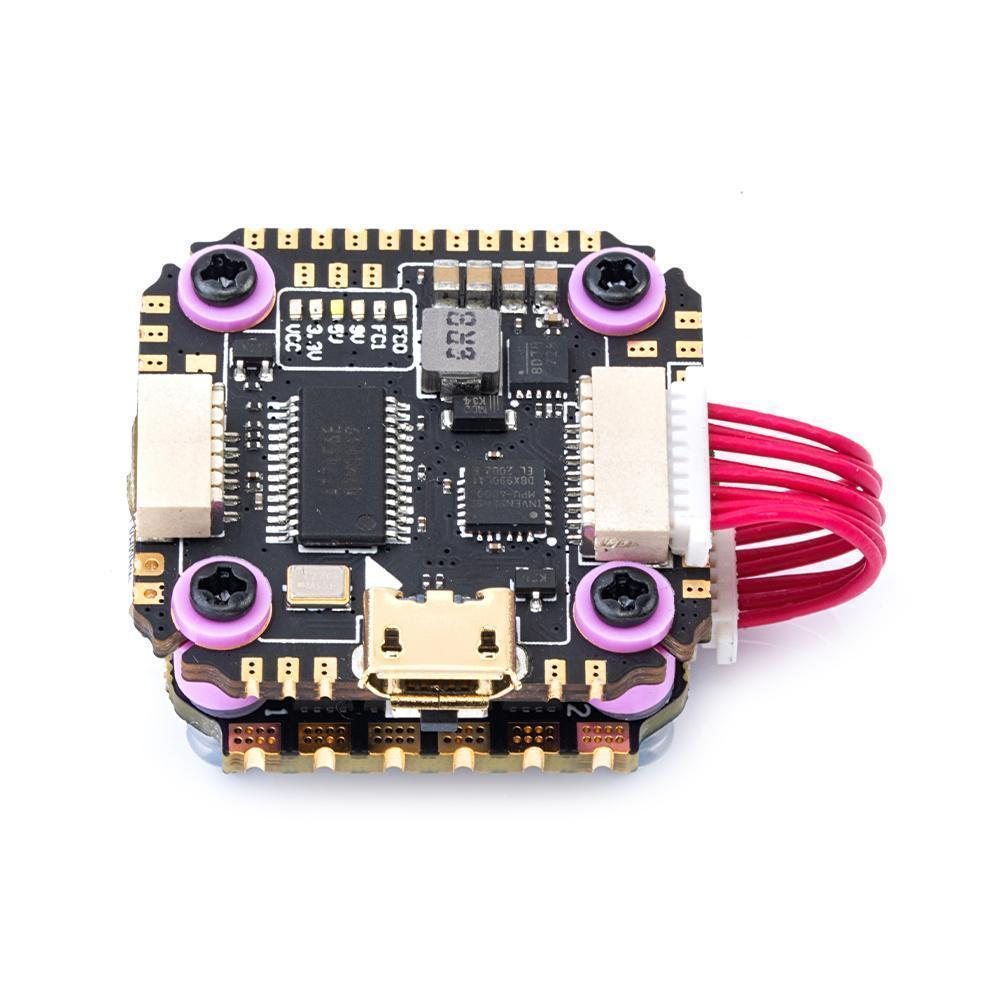

1 x Mamba F722 Mini DJI Betaflight Flight Controller
1 x Mamba F35 35AÂ 6SHV ESCÂ
