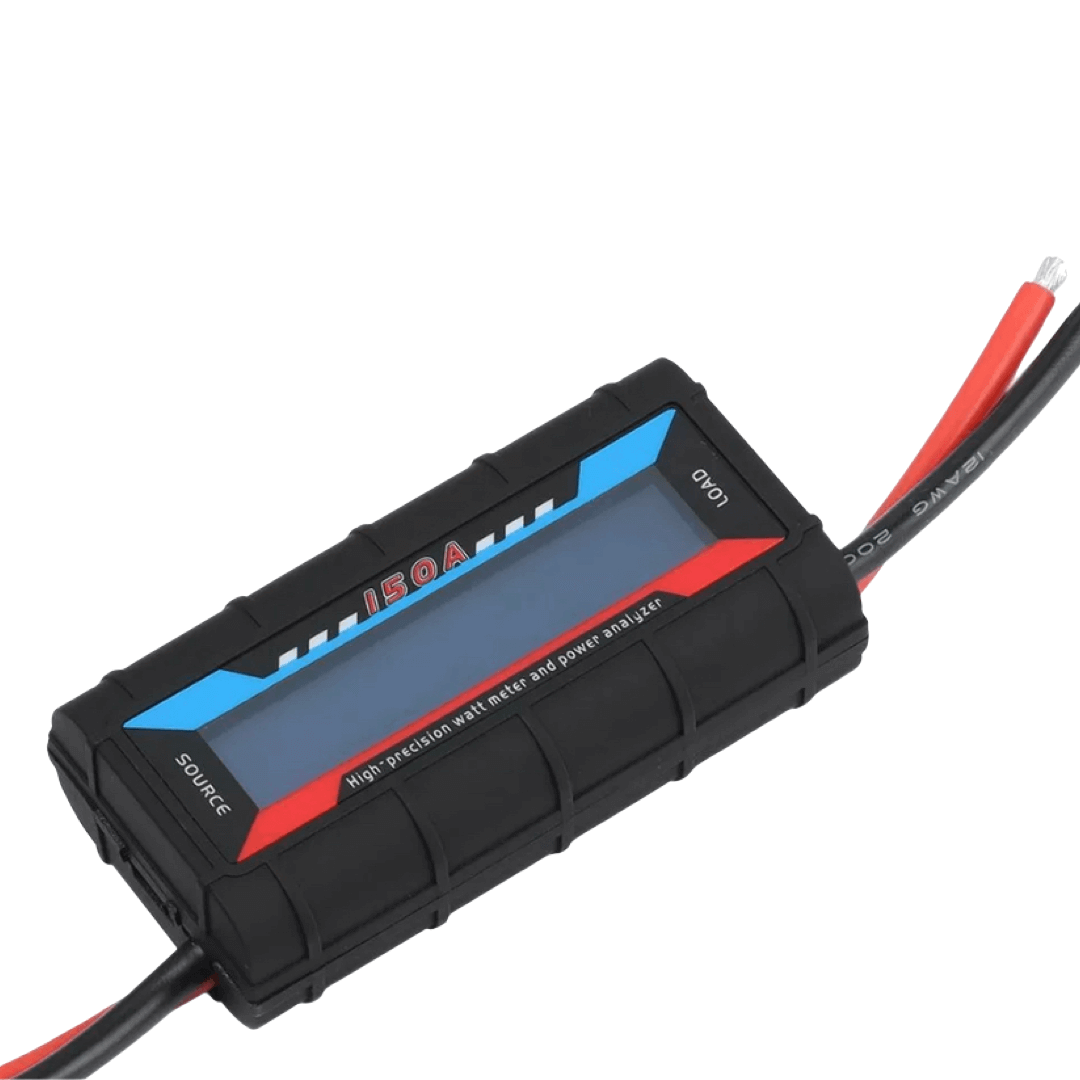

Our 150A watt meter is perfect for measuring the output of your solar panel/s giving you a better understanding of the total power of your system.
Specifications:
- Colour: Black
- Weight: 88g

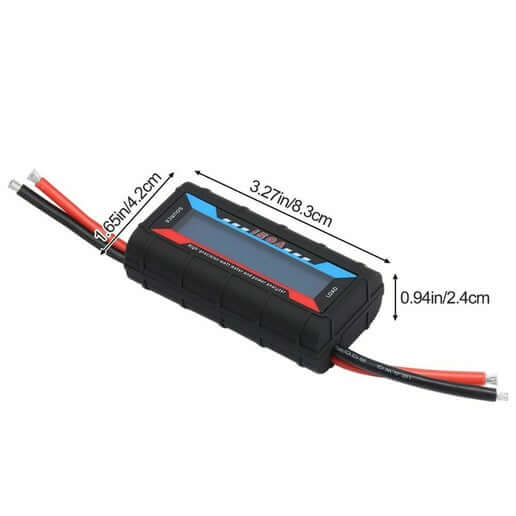

- Dimensions: 85 x 42 x 25mm - Material: Rubber Paint

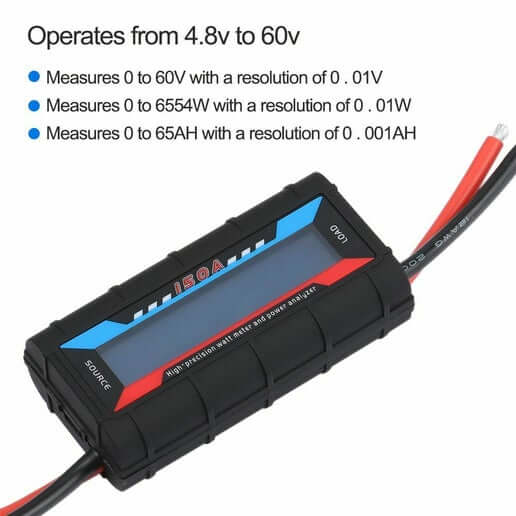

- Operates from 4.8v to 60v

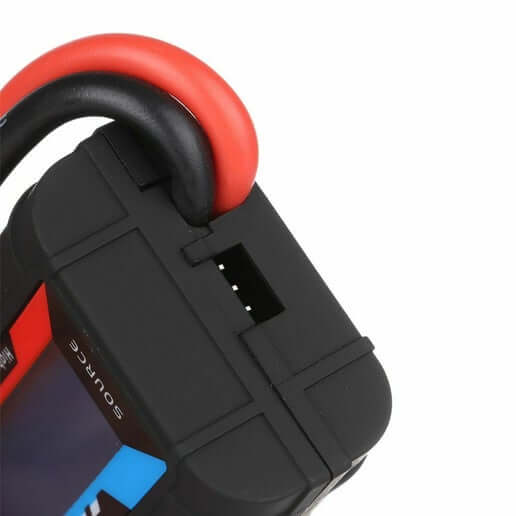

- Can measure down to 0v with optional auxiliary (great for stress-testing batteries)

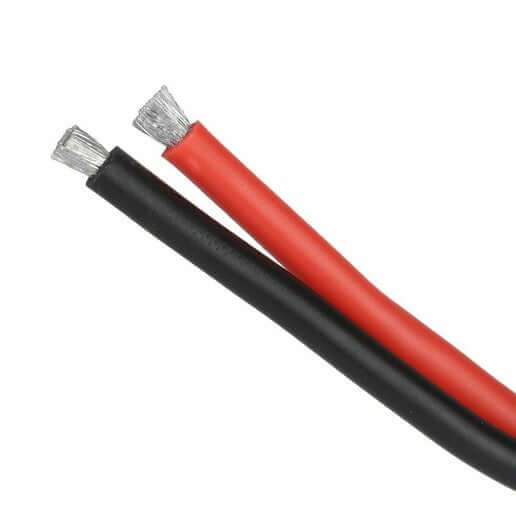

- Measures 0 to 150A with a resolution of 0.01A (50 Amp connectors for continuous
– up to 150A for short peak bursts only)
-Measures 0 to 60V with a resolution of 0.01V
- Measures 0 to 6554W with a resolution of 0.01W
- Measures 0 to 65Ah with a resolution of 0.001Ah

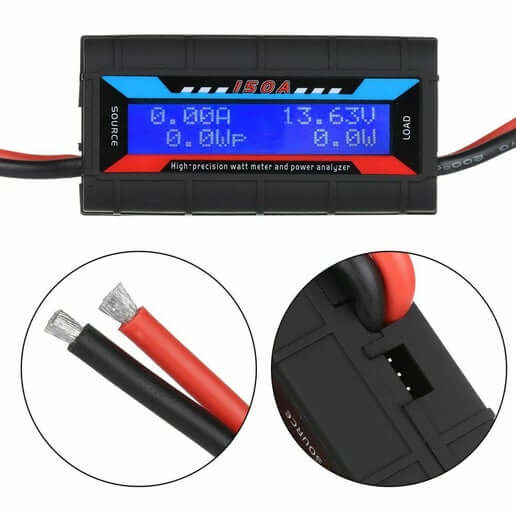

- Blue back-lit 2.4" LCD display
- Handles 4 to 60 volts. Works on 4, 6, 12, 24, 36, and 48-volt battery bank systems.
- Extremely low power consumption of 7 mA. More efficient than any LED meter.
- Digital LCD LIGHT UP screen gives clear crisp number readings.
BACKLIT.
- Handles up to 150 amps intermittently and 75 amps continuous duty (48 Volts)
- Microprocessor controlled produces extremely precise and accurate readings.
- Amp Hours (Ah)
– Total charge Ah delivered from source to load
- Amp Peak (Ap)
– Highest amp value delivered (typically start-up cycle for inverters, compressors, fridges, etc)
-Amp (A)
– Amps being delivered at that point in time
- Voltage
– Source voltage, and minimum Source voltage.Good for measuring the voltage at the lowest point of charge (eg minimum overnight voltage of car fridge battery) - Power (Watts)
– Peak watts, Watts being delivered at that point in time
- The meter can be “turned around” to measure the charge going back into the battery during a charging cycle.
- In this instance, the charger (DCDC, Solar, Mains Battery Charger) is connected to Source, and the battery is connected to “Load”.
- Charging Cycle Readings: - Amp Hours (Ah)
– Total charge delivered to the battery
- Amp Peak (Ap)
– Highest charge delivered to the battery (Bulk charging)
- Voltage
– Point in time voltage from the Charger (charger is not over or under-charging)
Brand: Unbranded
SKU: 150a-wm
