Diatone MAMBA RACE F722 Mini MK3 75A 3-6S 32bit Flight Controller StackFC SPECIFICATIONS: MAMBA Basic F722MINI MK3...
Vendor: DIATONE
Availability: In Stock
$212.59
$212.59
Subtotal: $212.59
20x20mm MAMBA Stack RACE F722 Mini MK3 3-6S F7 Flight Controller OSD 75A Blheli_32 32bit Brushless ESC for RC Drone FPV Racing

20x20mm MAMBA Stack RACE F722 Mini MK3 3-6S F7 Flight Controller OSD 75A Blheli_32 32bit Brushless ESC for RC Drone FPV Racing

$212.59

20x20mm MAMBA Stack RACE F722 Mini MK3 3-6S F7 Flight Controller OSD 75A Blheli_32 32bit Brushless ESC for RC Drone FPV Racing

$212.59

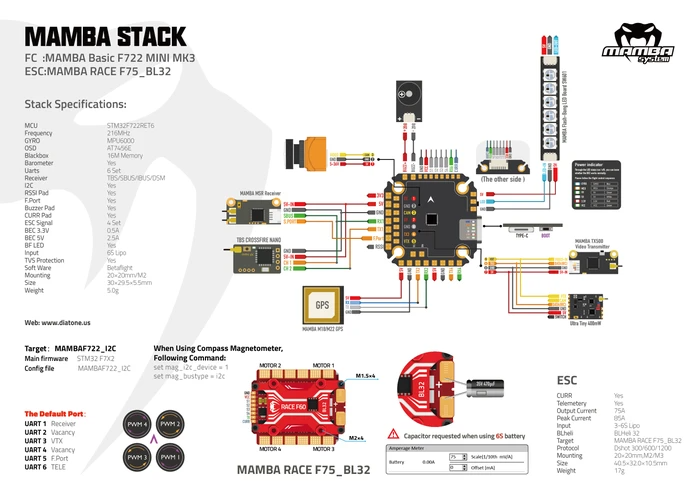

Diatone MAMBA RACE F722 Mini MK3 75A 3-6S 32bit Flight Controller Stack

FC SPECIFICATIONS:

  • MAMBA Basic F722MINI MK3
  • MCU: 216MHz STM32F722RET6
  • GYRO: MPU6000
  • Barometer: Yes
  • OSD: Yes
  • Blackbox: 16M Flash Memory
  • Uarts: 6 Set
  • ESC Soft: Dshot300/600/1200
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller: BF LED
  • F.Port: Yes
  • RSSI: Yes
  • Buzz: Yes
  • Input: 2~6S Lipo (8.4~25.2V)
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 2.5A
  • MOUNTING: 20mm, M2

ESC SPECIFICATIONS

  • MAMBA RACE F75_BL32
  • INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
  • CONTINUE CURRENT: 75A×4
  • BURST CURRENT: 85A (10S)
  • BEC: NO
  • SOFT: Dshot300/600/1200
  • Target:BLHeli_32
  • MAMBA RACE F75_BL32
  • TVS Protection: Yes
  • MOUNTING: 20mm/M3/M2

PACKAGE INCLUDES:

  • High-Frequency 470uF/35V ×1
  • 8pin sh1.0 ×2
  • 16AWG 60mm ×2
  • AMASS Original XT60
