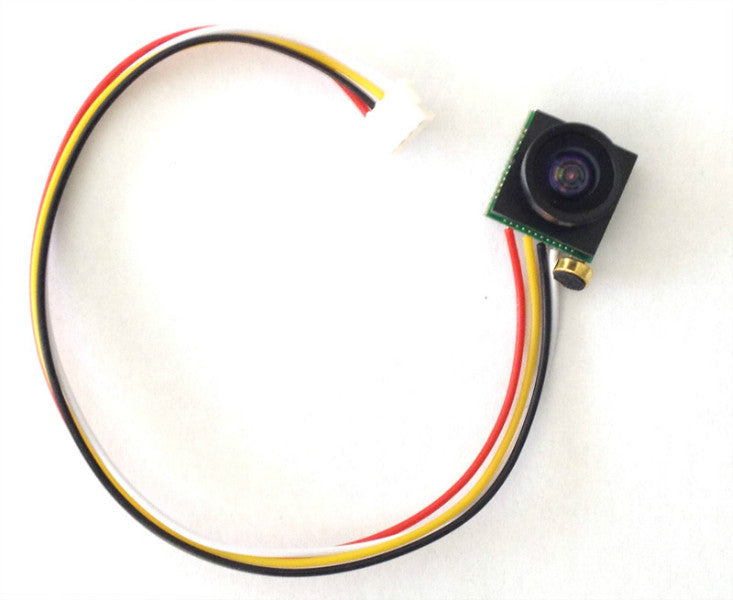

Nano fpv cam with 600tvl resolution
Also has a mic so you can listen to the motors from a far
Requires 3.7v for best results or a 1s lipo
Pal format for beter resolution
- Definition: 600TVL
- Pixel: 648*488
- Format: PAL
- Camera dimension: 12.5*12.5*17mm
- Brightness: 0.5Lux
- Power consumption: 50mA
- Sensor: 1/4 CMOS
- Lens: Wide angle 1.8mm
- Sense area: 3.5964mm*2.7084mm
- Scan frequency: 15.625Khz, 15.7343KHz
- Electric shutter: 1/50-1/80000(s), 1/60-1/80000s
- SNR: >=48dB
- Minimum brightness: 0.1Lux/F1.2
- AV composite signal: 1.0Vp-p 75?
- Work environment: -10?~60? RH95% Max
How to wire? Black - GND, Red - Power+, Yellow - Video out, White - Audio out
