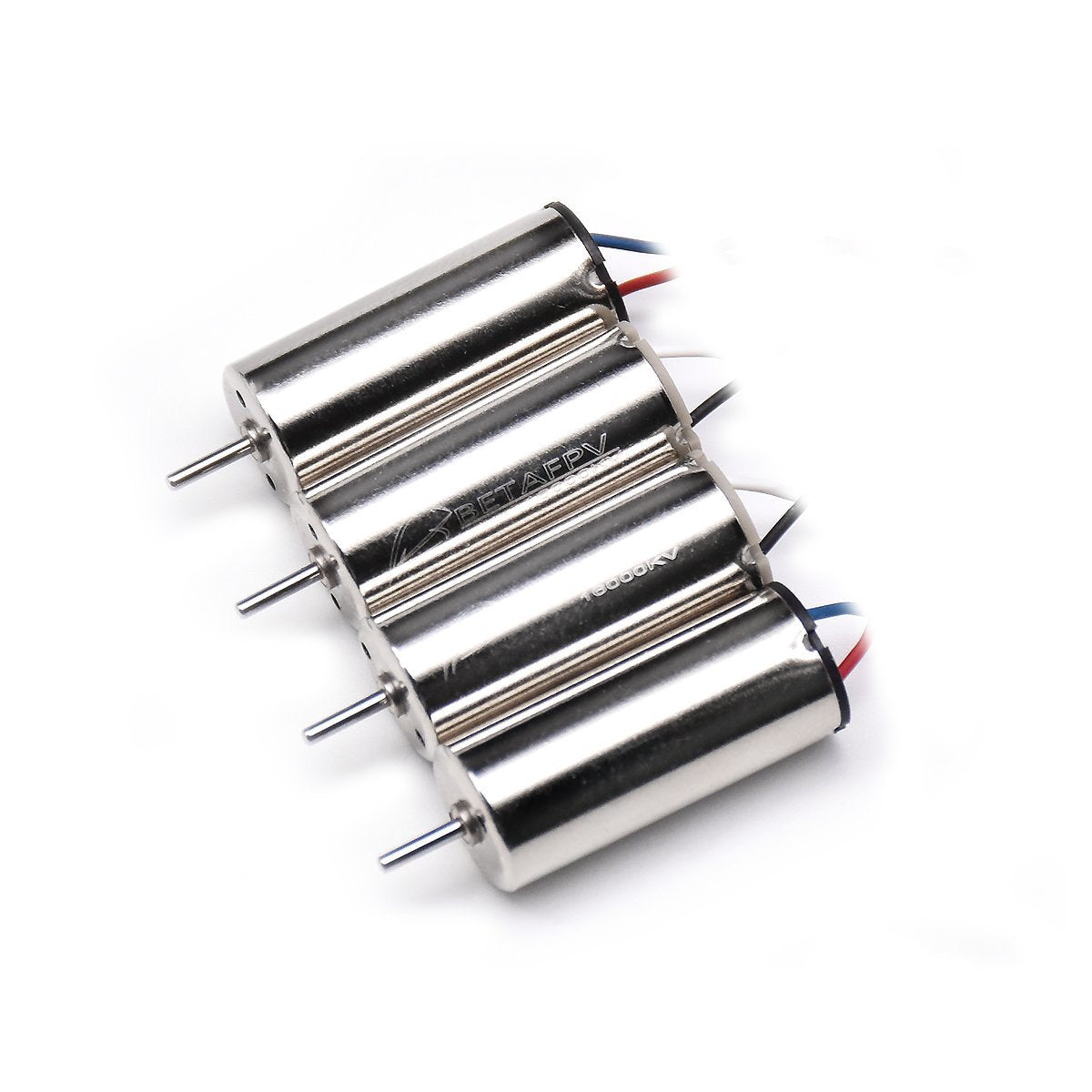

8.5x20mm 16000KV Brushed Motors (2CW+2CCW)

These 8.5x20 brushed motors are just for the Beta85 drones. The Beta85 must be the biggest whoop stype brushed drone in the world nowadays.

RECOMMEND PARTS

• Frame: Beta85 frame
• Motors: 8.5x20mm 16000KV motors
• Propellers: 48mm 3-blade props
• Battery: 550mAh 1S Lipo HV battery

BULLET POINT

• Just for 85mm Beta85 frame.
• Basic Edition 16000KV / 60,000 RPM@3.7V
• Motor Diameter: 8.5mm, Motor Length: 20mm, With 1.25mm JST Plug
• Weight: about 5.2g

Size comparison of all brushed whoop motors from BETAFPV.

• 6x15 (17500KV)
• 6x15 (19500KV)
• 7x16 (17500KV)
• 7x20 (17500KV)
• 8x20 (14000KV)
• 8.5x20 (16000KV)

SPECIFICATION

• motor diameter: 8.5mm
• motor length: 20mm
• shaft diameter: 1.0mm
• cable length: 56mm
• weight: about 5.2g
• no load speed: 60,000 rpm at 3.7V
• motor wire: clockwise motor(with red blue), anti-clockwise motor(with black white)
• connector: JST 1.25mm plug

PACKAGE

• 2 * 8.5x20mm 16000KV motor (CW)
• 2 * 8.5x20mm 16000KV motor (CCW)
