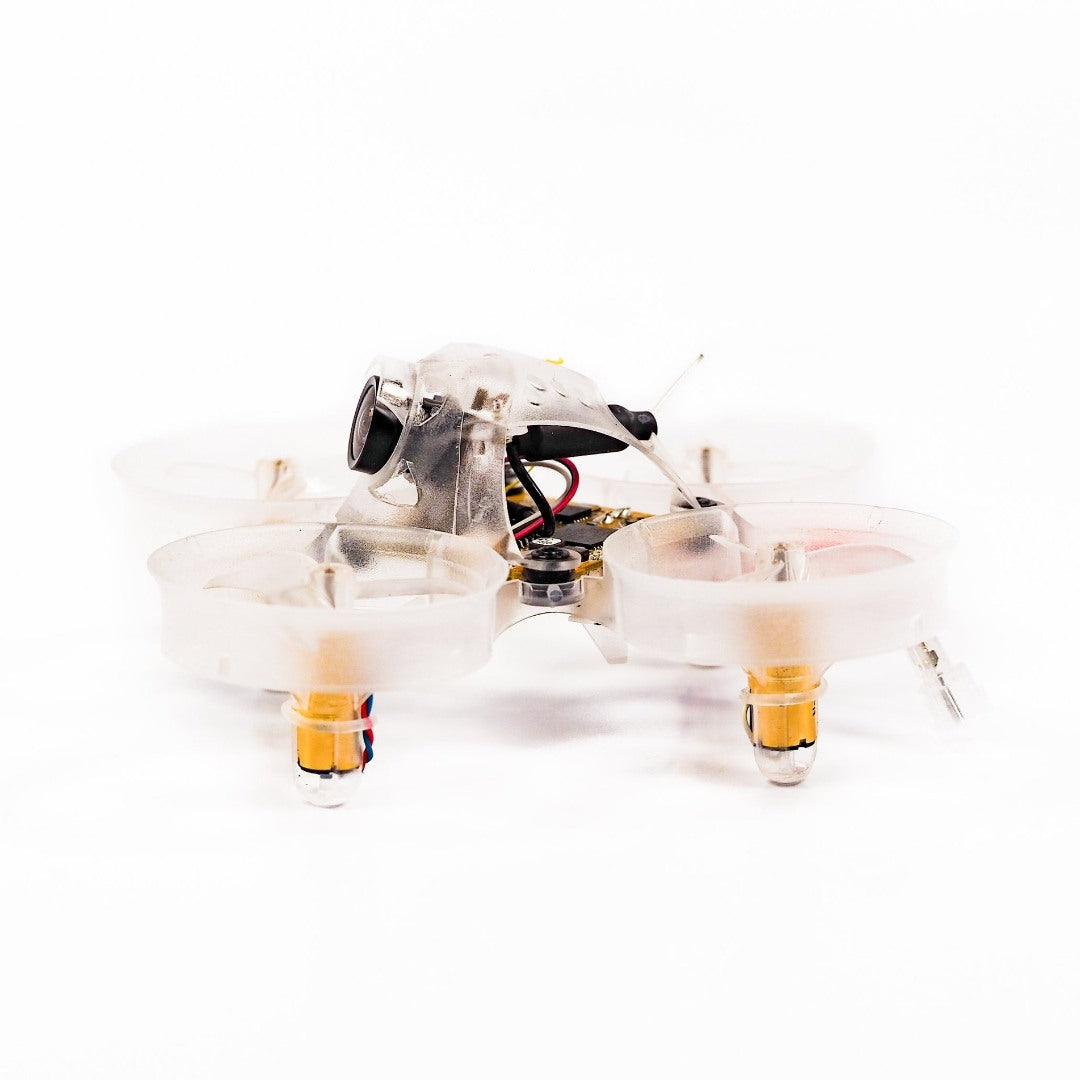

AcroBee Lite BNF - FrSky

Now available in a fully hand-built BNF kit! This BNF (Bind and Fly) Kit includes a fully assembled BeeBrain Lite accompanied with a set of Plaid Motors and Venom Props to give you the ultimate brushed freestyle experience. Simply bind to your radio and start flying, NO building required!

F4 BRAIN
The BeeBrain Lite is the next generation of the BeeBrain Flight Controller from NewBeeDrone. Featuring an F4 CPU for handling the latest filtering and PID tuning to provide hyper-smooth flight characteristics.

BUILT-IN VTX
No longer will you have to add the weight of a second stack like the previous generation BeeBrain V2, or add on an aftermarket board. An adjustable 1mw to 25mw VTX is built into the FC board with fully customizable BetaFlight OSD to give you all of your flight statistics.

FULL RANGE RX DIVERSITY
Not only is the BeeBrain Lite powered by a full range built-in receiver, it also takes advantage of diversity technology by using an external antenna and a built-in PCB antenna to give you incredible signal performance when flying around the noisiest environments.

NewBeeDrone BRUSHED ACTIVE BRAKING
A first in this size class of brushed drones, the BeeBrain Lite features active motor braking through the unique design of our patented brushed motor active-braking system. This gives you an even closer feeling to larger-sized brushless quads when performing freestyle moves or fast racing courses. No other flight controller will make your brushed motors feel this good.

We looked at current micro-sized brushless motors as an alternative but due to the size, most didn't use bearings which provide a less than smooth flight experience. Additionally, for the added cost, weight, wear issues, and battery usage, we felt creating our own braking system with our current system seemed better.

NewBeeDrone OSD TECHNOLOGY
We spent a year developing the smallest and most efficient OSD solution in flight control.
By simulating the OSD chip with MCU technology, our brand-new MCU chip is fully compatible with BetaFlight OSD, uses 75% less power, and takes up 75% less space than the current OSD chip in the market. This allows BeeBrain Lite to pack all the extra features without making any compromises and flies better than anything else in the market.

'LITE'-WEIGHT
Thanks to the unique design and engineering, the BeeBrain Lite is able to fit all of its components on one board. The Lite comes in around 1.7g lighter than the previous BeeBrain V2 Flight Controller stack - almost 2g lighter without sacrificing any features and providing better processing power. This leads to a better center of gravity in the aircraft with the weight being lower and better battery life with less weight.

FUNCTIONAL RGB LED
Forget about added extra weight and messy wiring just to be stuck with one type of LED effect. The bottom of the Lite board features two super-bright RGB LEDs that are fully compatible and configurable in the BetaFlight GUI. Change the color with up to 12 different colors, multiple effects from blinking, scanning, battery status, and more! Perfect for standing out in races from other pilots, making cool effects for POV flying/spectators, or just finding your quad after a crash in dark places.

FIRMWARE DOWNLOADS
ONLY use the firmware provided here on the product page and not from the Betaflight drop-down menu, our firmware is custom made to work with our FC, using unofficial firmware may cause bugs.

• BeeBrain Lite FrSky 3.5.7 - US Version
• BeeBrain Lite FrSky 3.5.7 - International Version
• BeeBrain Lite FrSky 4.0.1 - US Version
• BeeBrain Lite FrSky 4.0.1 - International Version
• BeeBrain Lite FrSky 4.0.6 - US Version
• BeeBrain Lite FrSky 4.0.6 - International Version
• BeeBrain Lite FrSky 4.0.6 - International Version D16

FLIGHT CONTROLLER:

• Compatible with Frsky_D(D8) Frsky_X(D16)(non-ACCESS protocol) Futaba(S-FHSS)(with PA/LNA FULL RANGE) all Diversity.
• One onboard Antenna (Indoor range) one external Antenna, Optional solder pad for regular 2.4G antenna.
• STM32F411 Processor
• MPU6500 Gyro/Accelerometer via SPI
• NBD Active Braking System (4 x 8A Mosfets)
• Battery Monitor
• 3 x RGB LED (Betaflight LED Strip control)
• NewBeeDrone anti-reverse JST PH-2.0 Power Lead
• NewBeeDrone OSD Chips(betaflight compatible)
• VTX configurable on OSD (40 channels, 1-25mw) US version will have some illegal channel locked
• VTX Connector Type: U.FL (3mm)
• 5V Power supply 550ma
• UART2 Solder port ready for Crossfire and other receivers
• Size: 26mm x 26mm
• Weight: 3.5g
• Power Source: 1S Lipo battery

CAMERA:

• 600 TVL
• 120 Degree Viewing Angle
• 20 Degree Mount

Whats Included:

• BeeBrain Lite FC
• BeeEye Camera
• Goober Canopy
• 4x Gold Motors

• 4x AZI Props 0.8mm
