The Aikon flight controller is a new generation flight controller designed specifically to work with our Aikon 4-in-1 ESCs. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 5 Software invertible hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch (assigned to USER1 mode by default)
- LED outputs
- Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
- On-board voltage regulator up to 6S
Spin me around

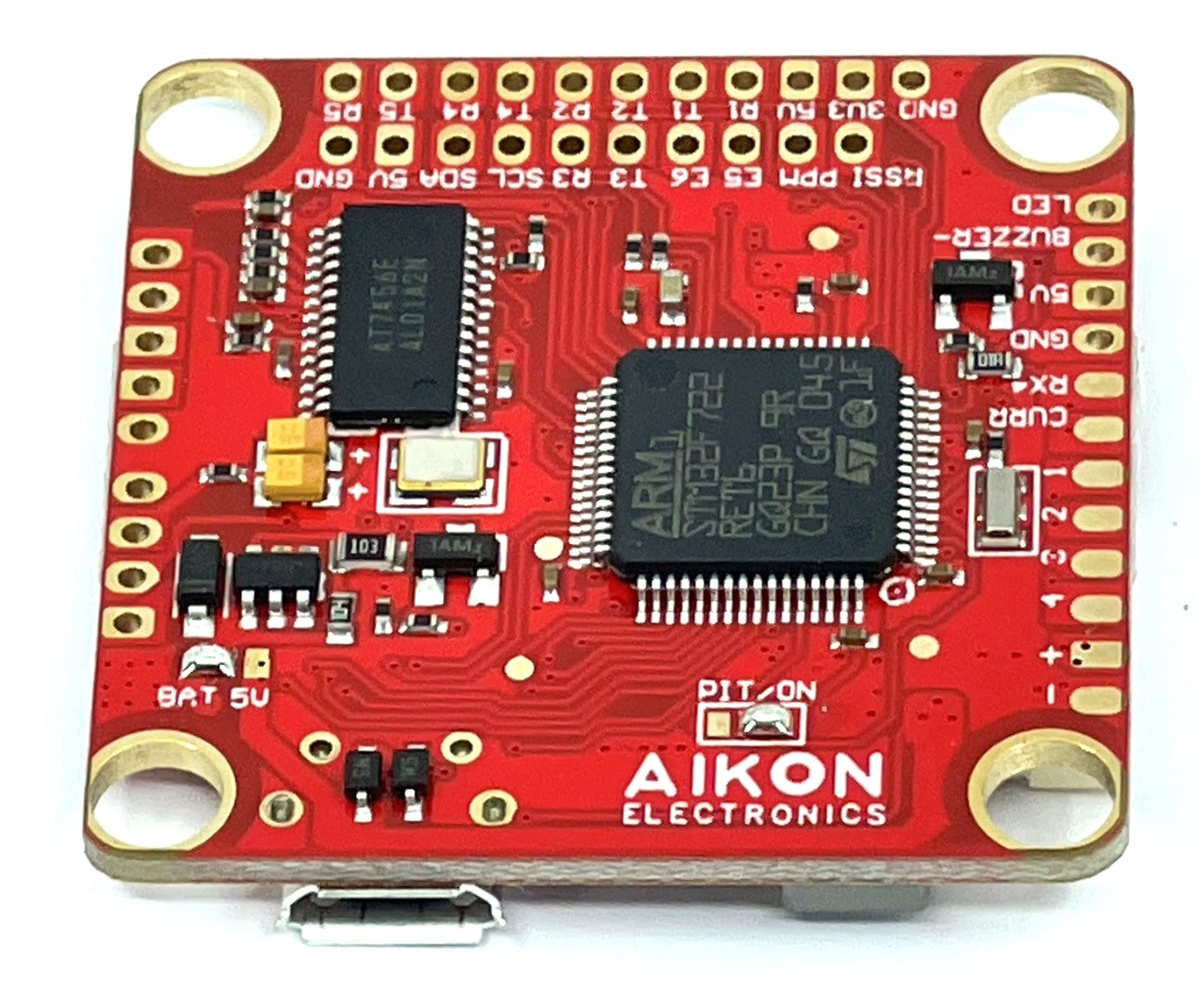

Aikon F73030 V1 Specifications
| Battery | 2-6s |
| Mount Hole2 | 30.5*30.5mm |
| Firmware | Betaflight AIKONF7 Target |
| MCU | STM32F722 |
| IMU | MPU6000/ICM20602(optional) |
| Blackbox | SPI 16MB |
| Weight | 12g |
