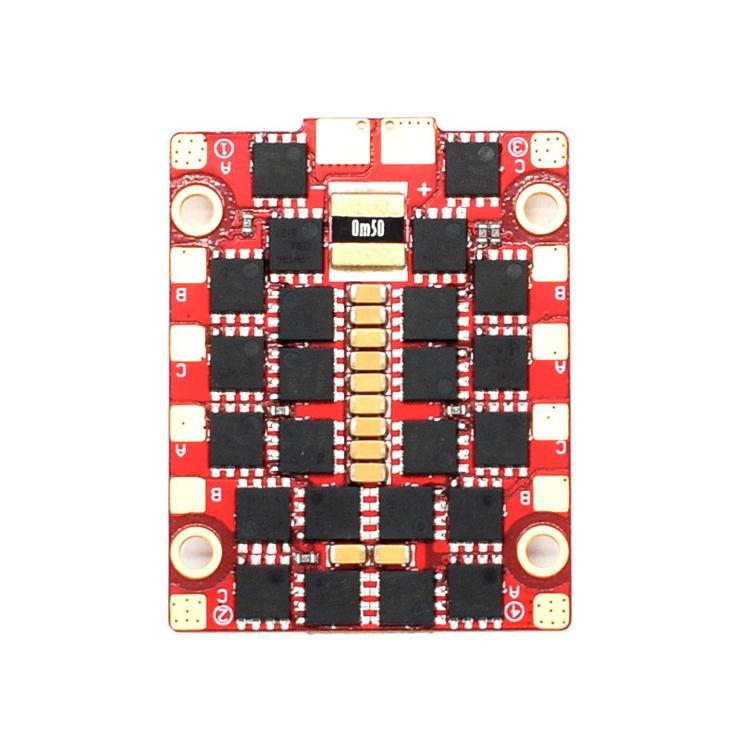

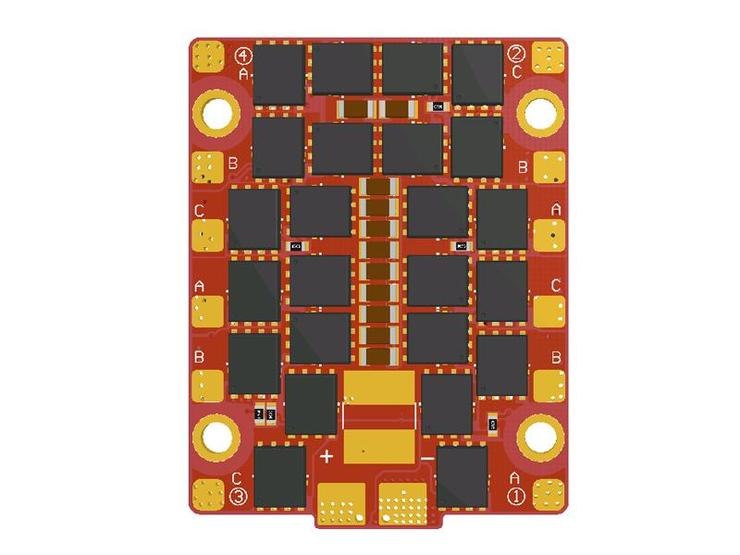

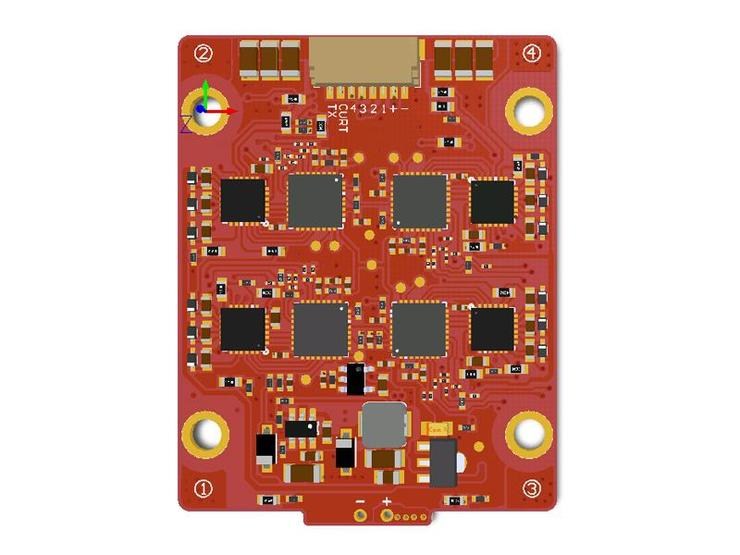

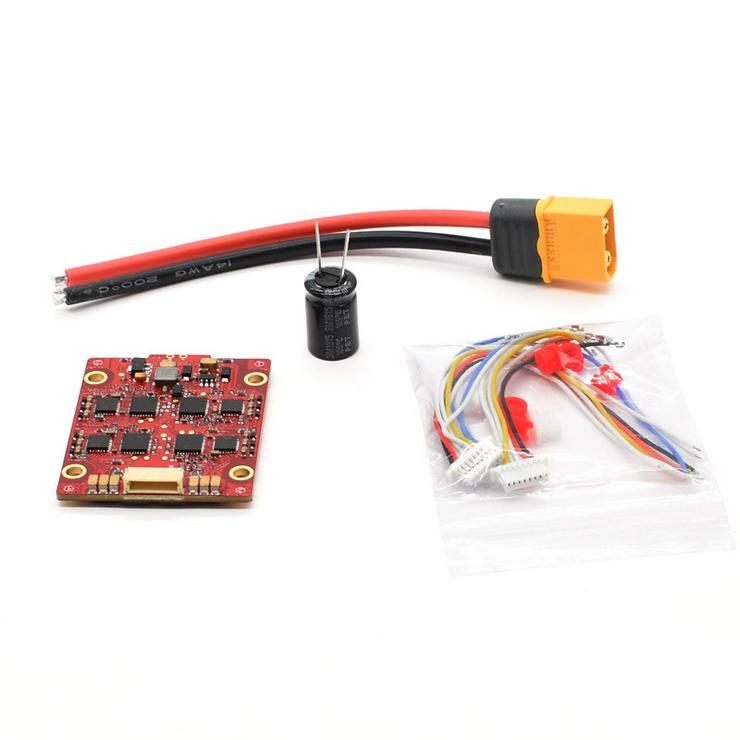

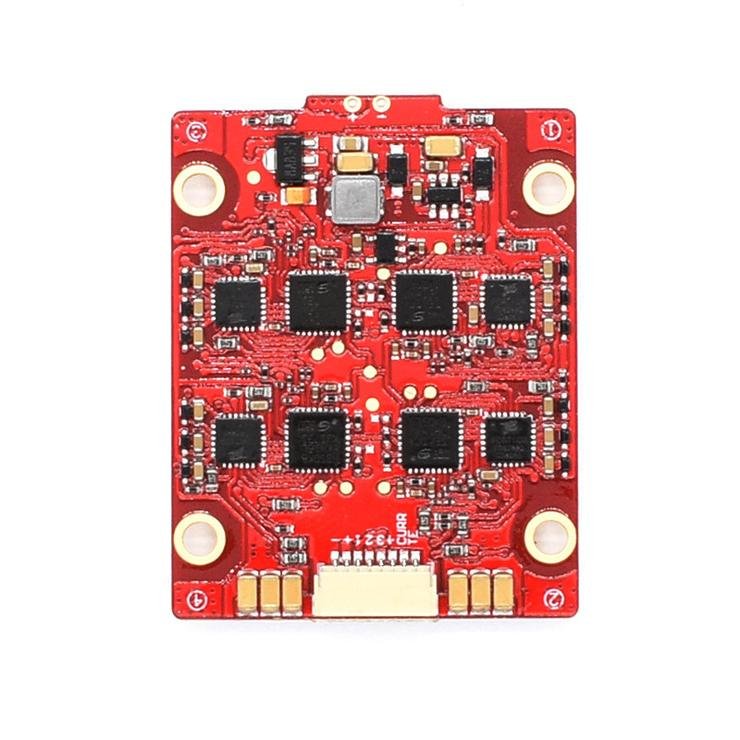

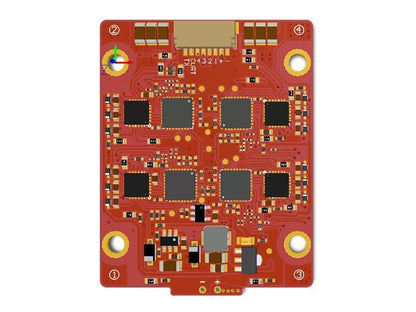

The Aikon Race Dragon RD32 4-in-1 45A 6S is a new generation ESC that uses a high speed F3 MCU for maximum performance.
What makes the RD32 different?
- New F3 processor.
- Latest BLHeli_32 code base
- Programmable PWM frequency of up to 48KHz
- Auto-timing for higher efficiency and reliability
- Voltage/Current sensing
- Adjustable “Brake on Stop” force
- ESC Telemetry (Voltage and RPMs only, no current)
- Configuring from FC using DShot commands
AK32 4-in-1 55A 6S specifications
| Battery | 3-6s |
| Constant Current | 45A |
| Burst Current | 55A (10s) |
| BEC | NO |
| Telemetry | Yes (RPM and Voltage Only) |
| Current Sensor | Yes (Analog only) |
| Current Sensor Scale | 210 |
| Mount Hole | 30.5*30.5mm |
| Firmware | BLHeli32 |
| MCU | GD32F3 |
| Weight (with-out wire) | 18.5g |
