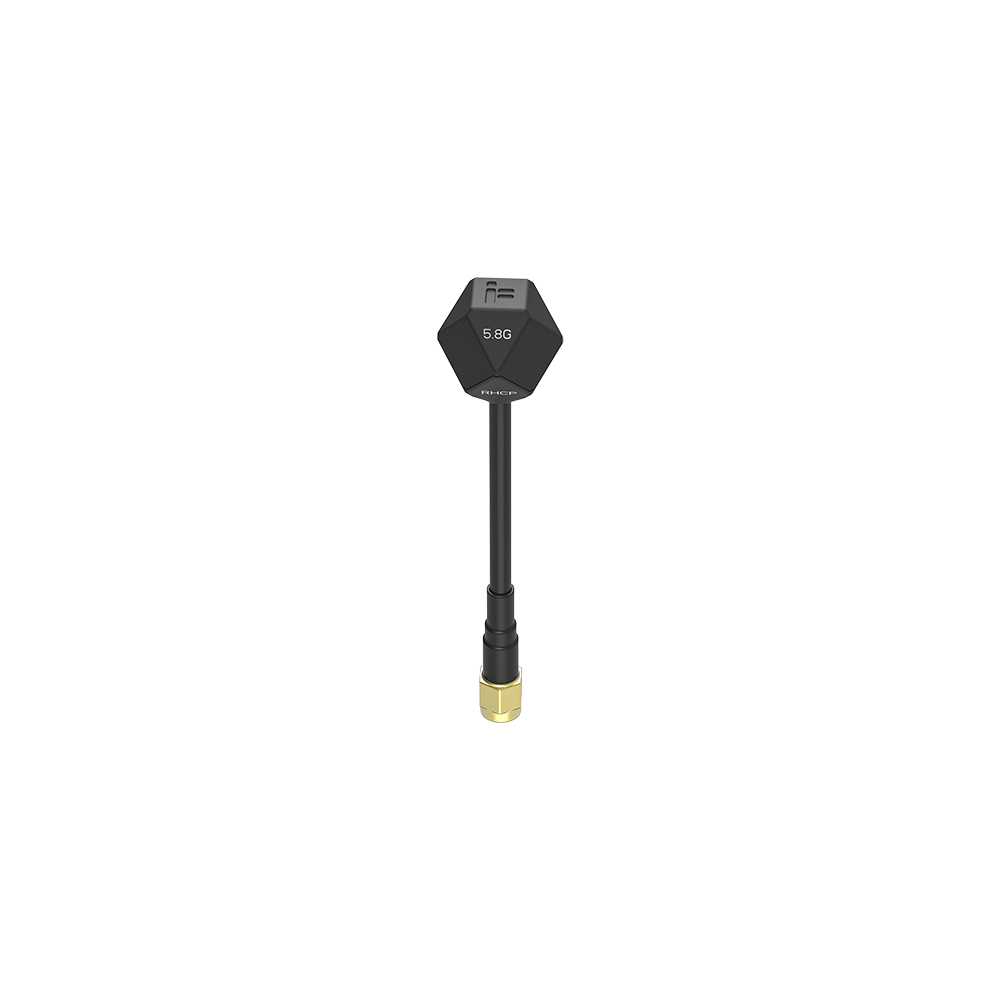

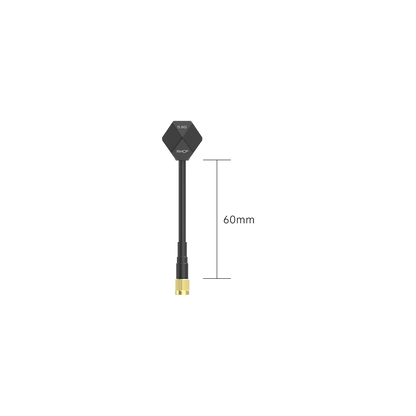

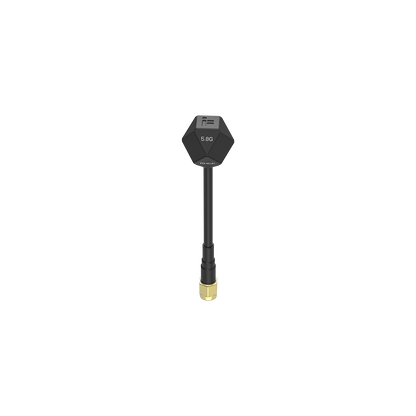

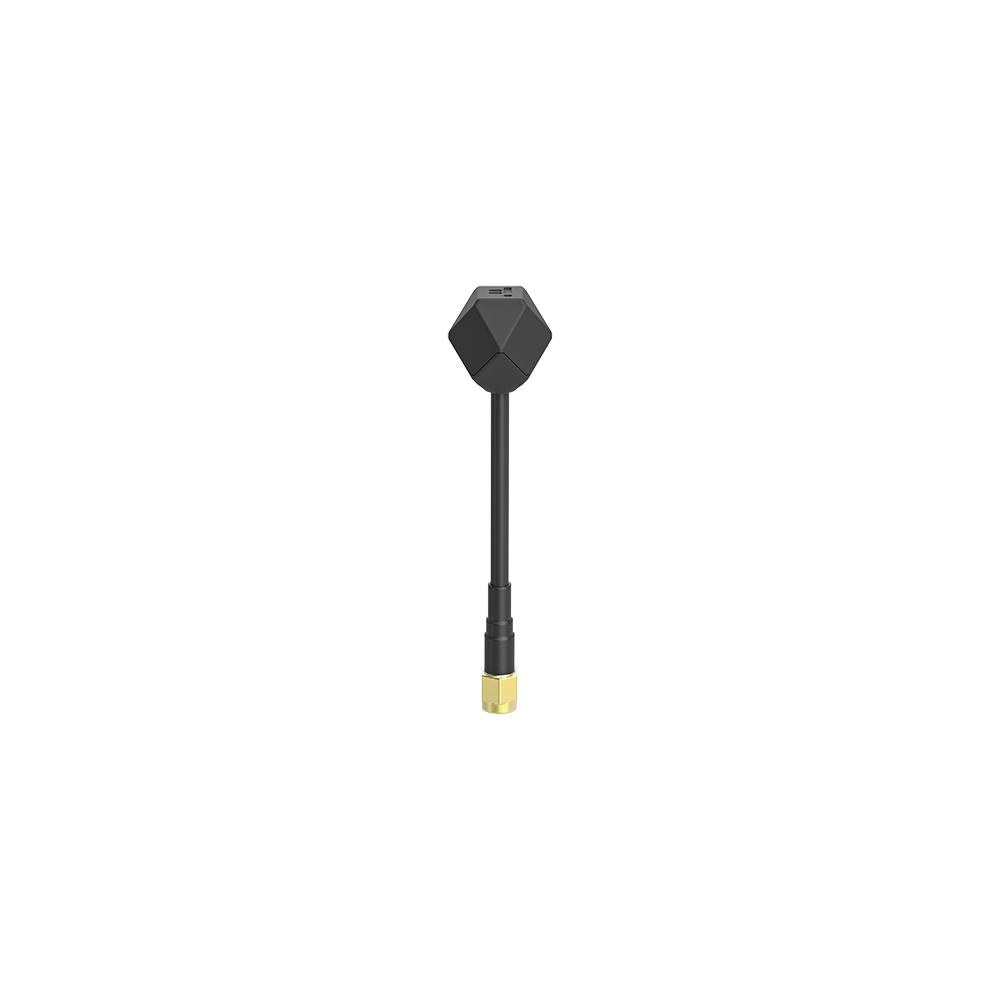

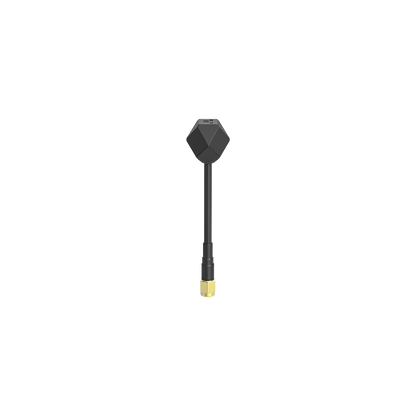

Albatross V2 5.8GHz 60mm Antenna LHCP RP-SMA

Introducing the new and improved Albatross V2 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.

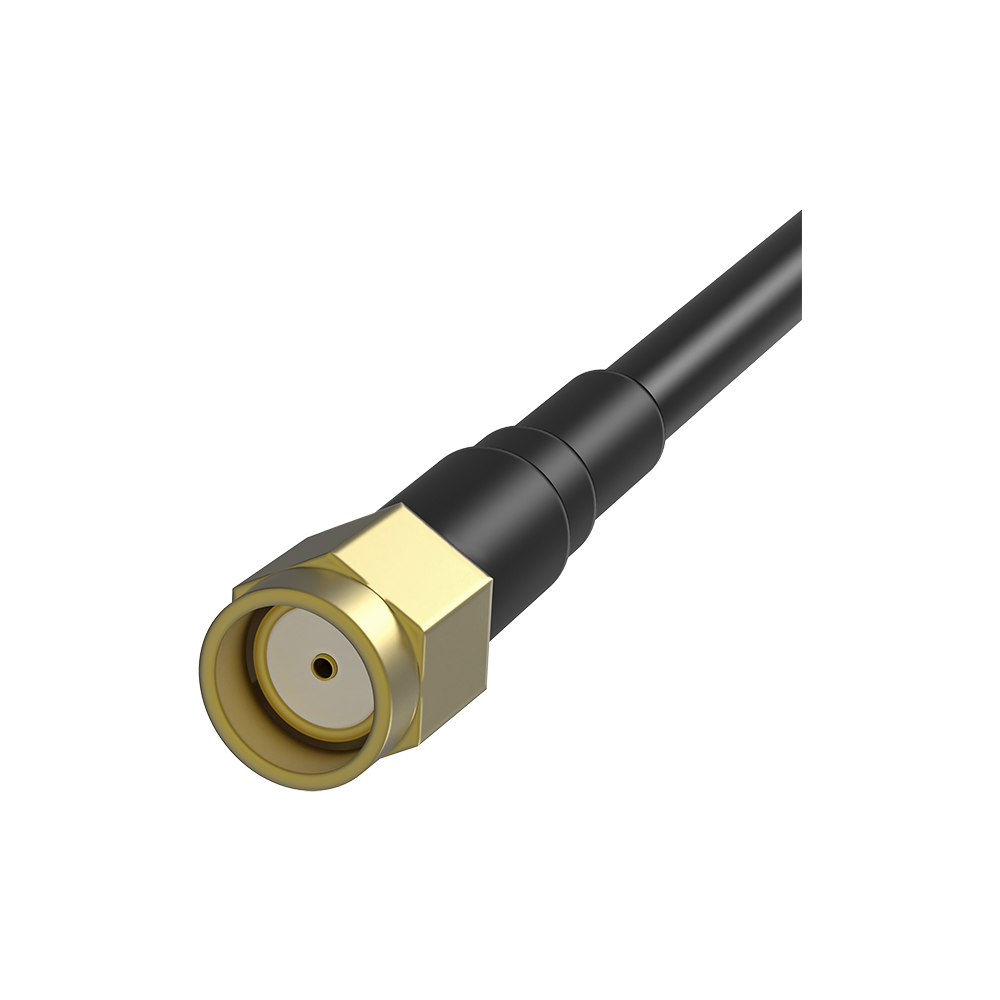

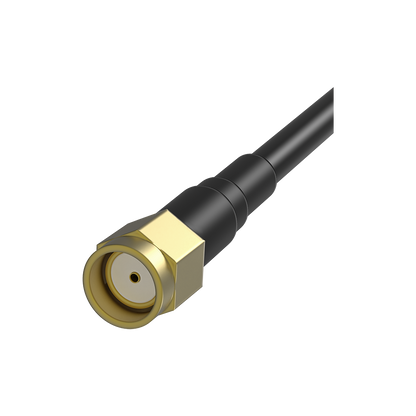

Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!

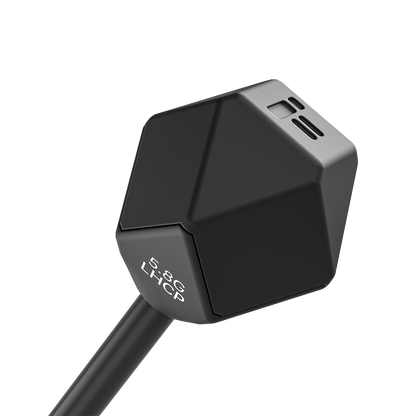

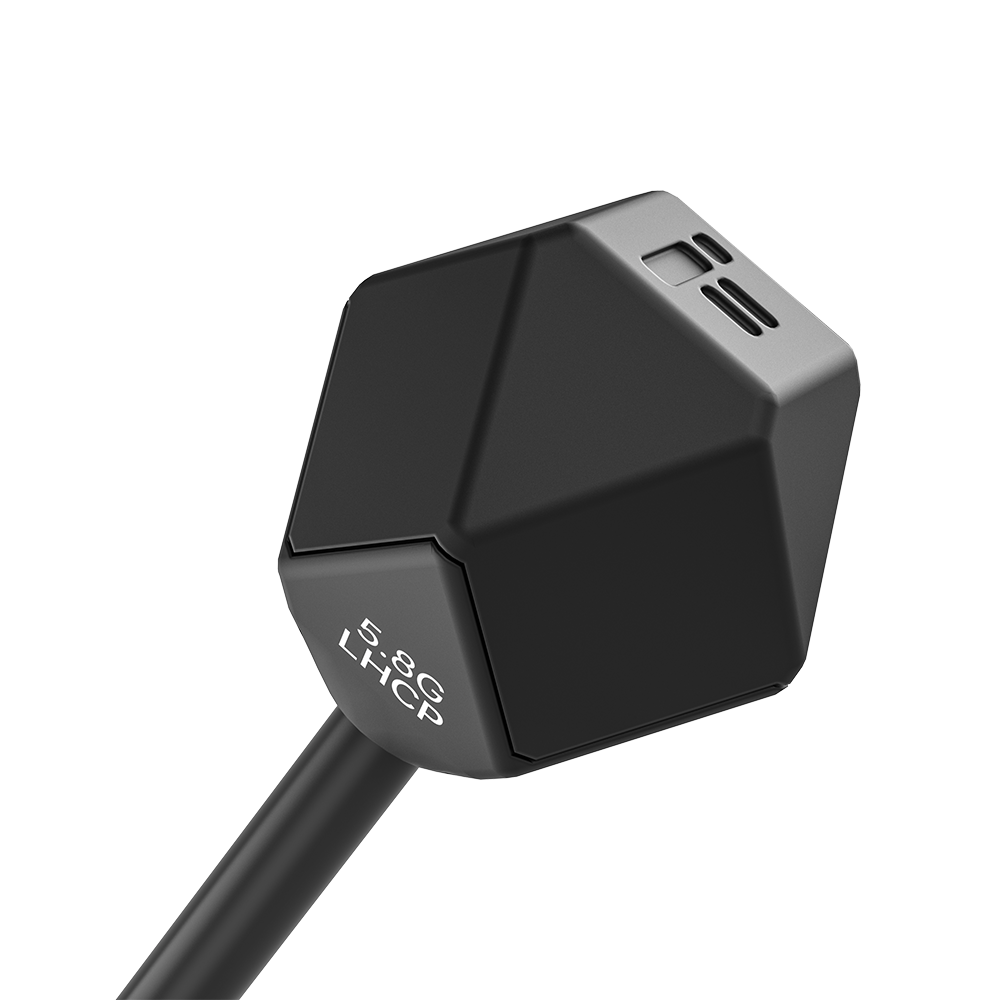

A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.

Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.

Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna

Interface: LHCP

Frequency range: 5.3GHz-6GHz

Max Gain: 2.72dBi (5621MHz)

MIN Gain: 2.12dBi (5436MHz)

AVG Gain: 2.42dBi

MAX VSWR: 1.72（5326MHz）

MIN VSWR: 1.35（5917MHz）

AVG VSWR: 1.62

MAX radiation efficiency: 84.25%（5917MHz）

MIN  radiation efficiency: 73.5%（5326MHz）

AVG radiation efficiency: 80.3%

Polarization: LHCP

Cross polarization suppression: -26.7dB

Axial Ratio：≤3

Cable: RG141

Weight: 7g

Size: Total length: 90mm(±2mm), cable length:60mm
