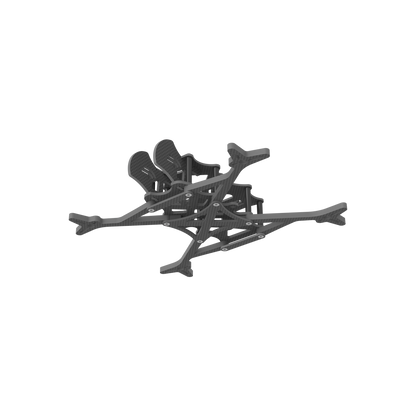

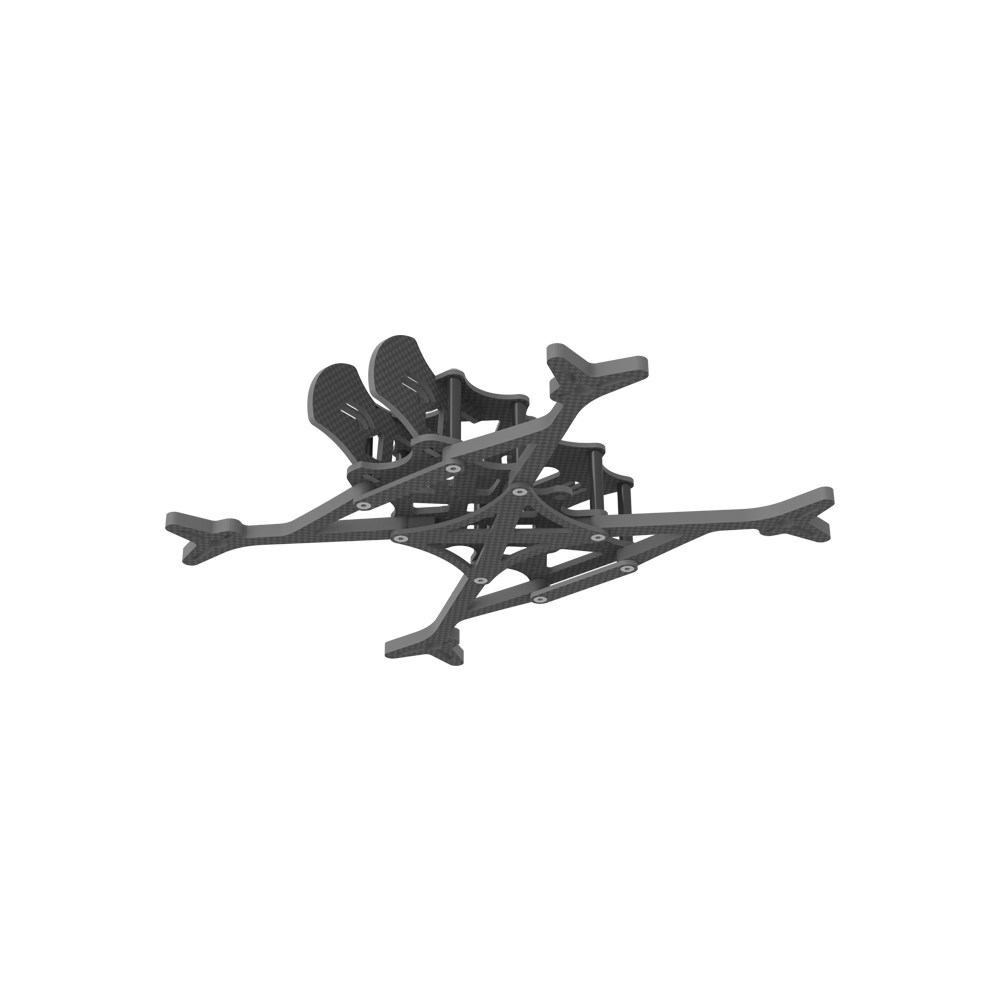

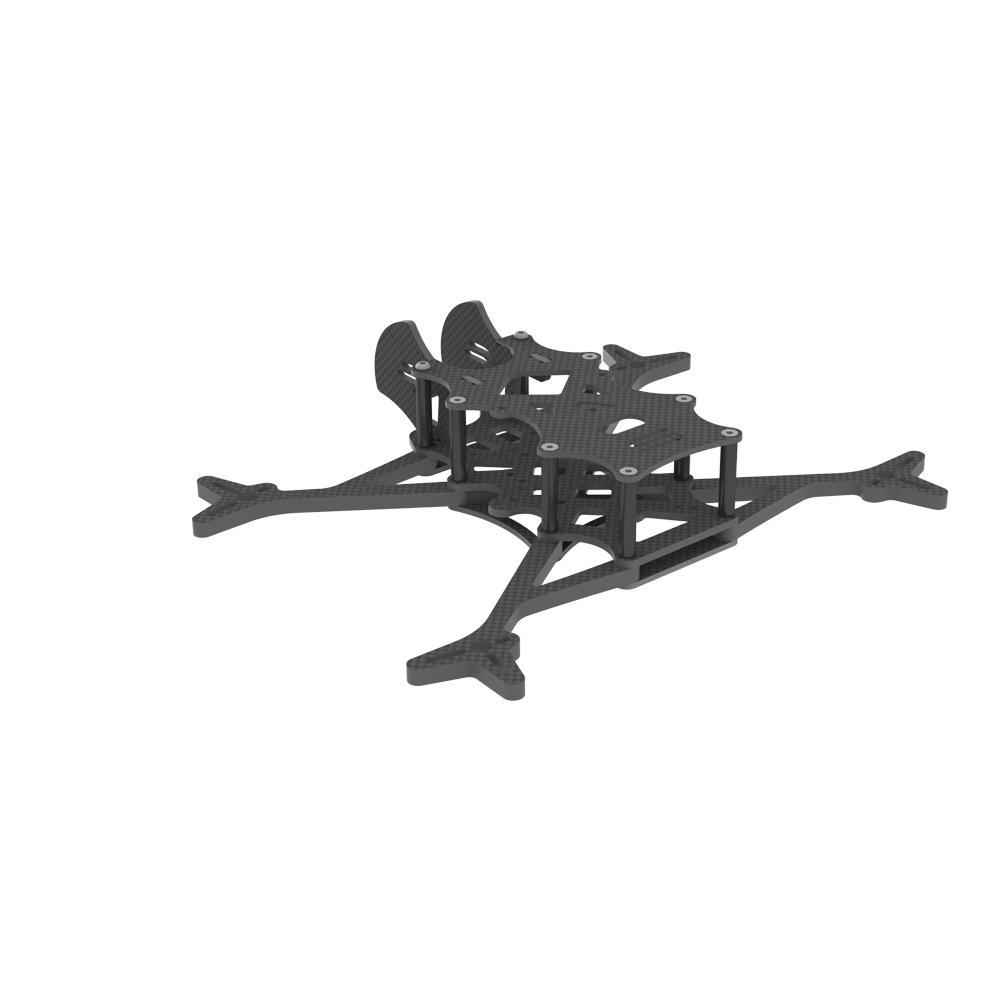

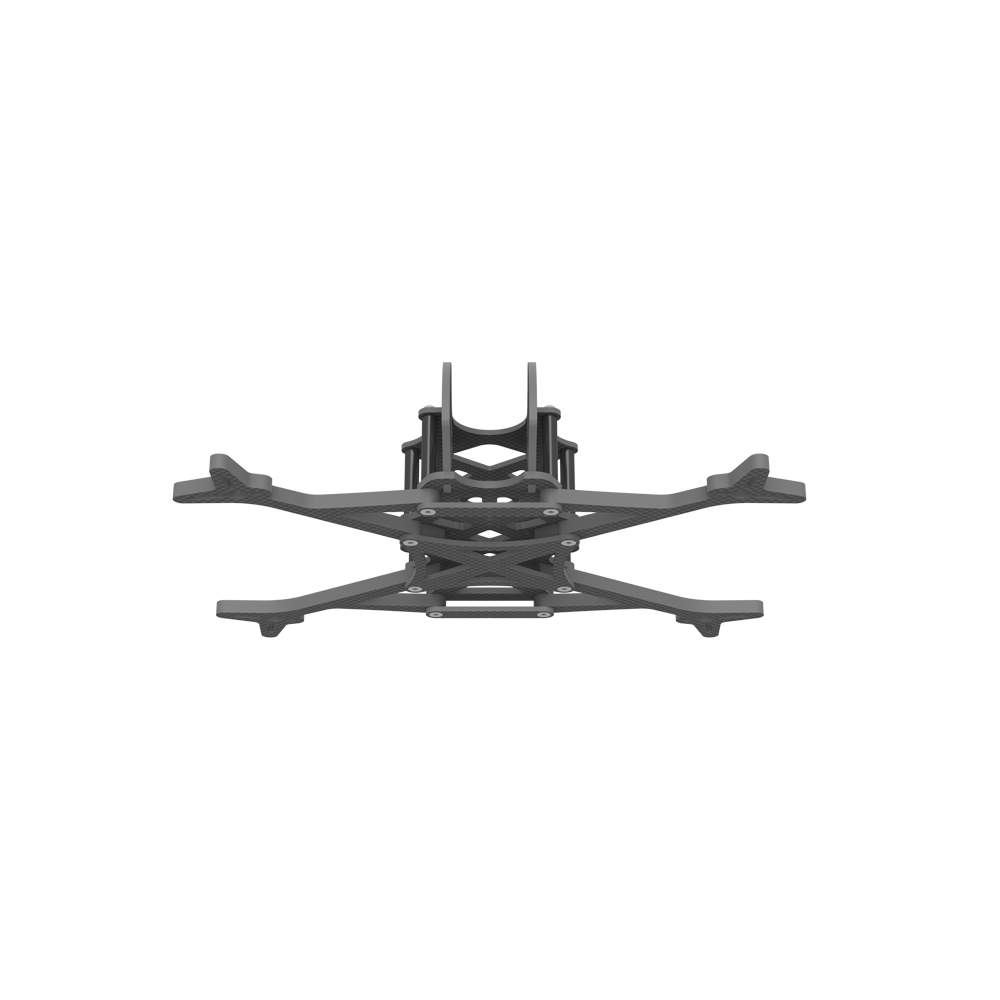

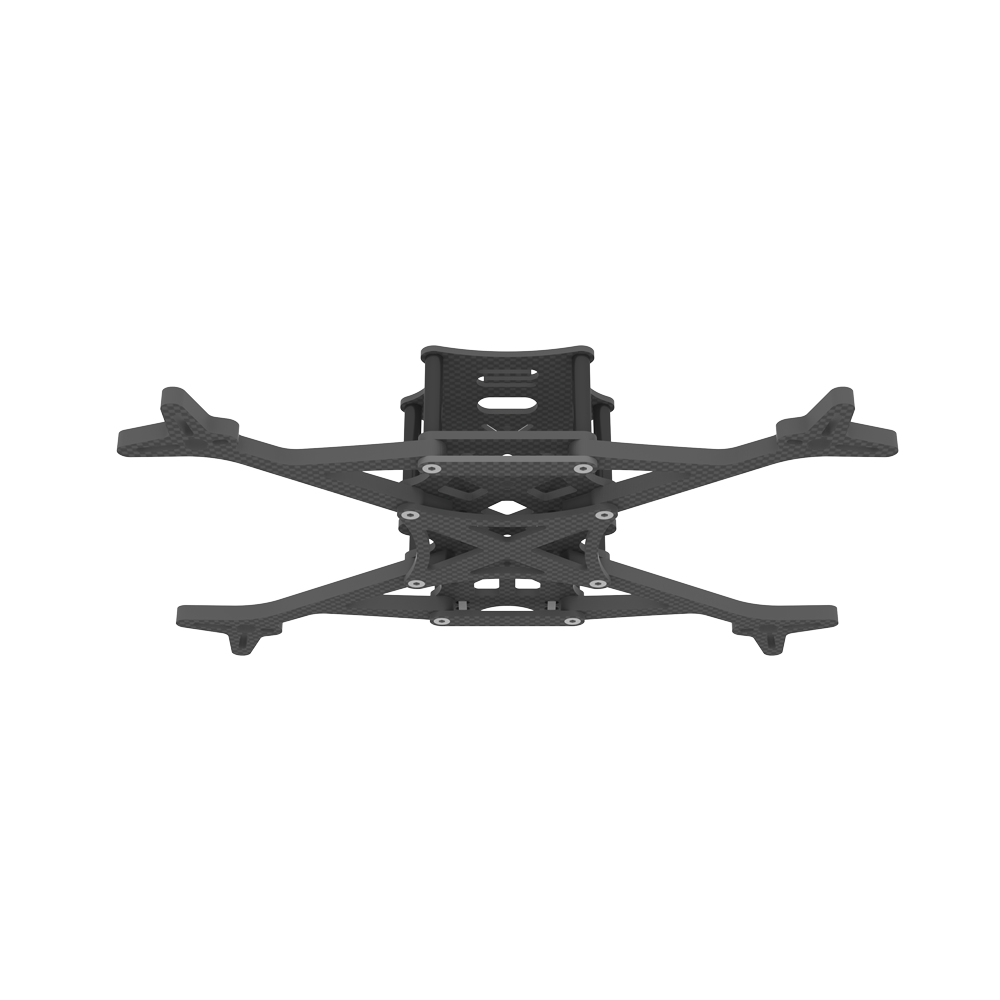

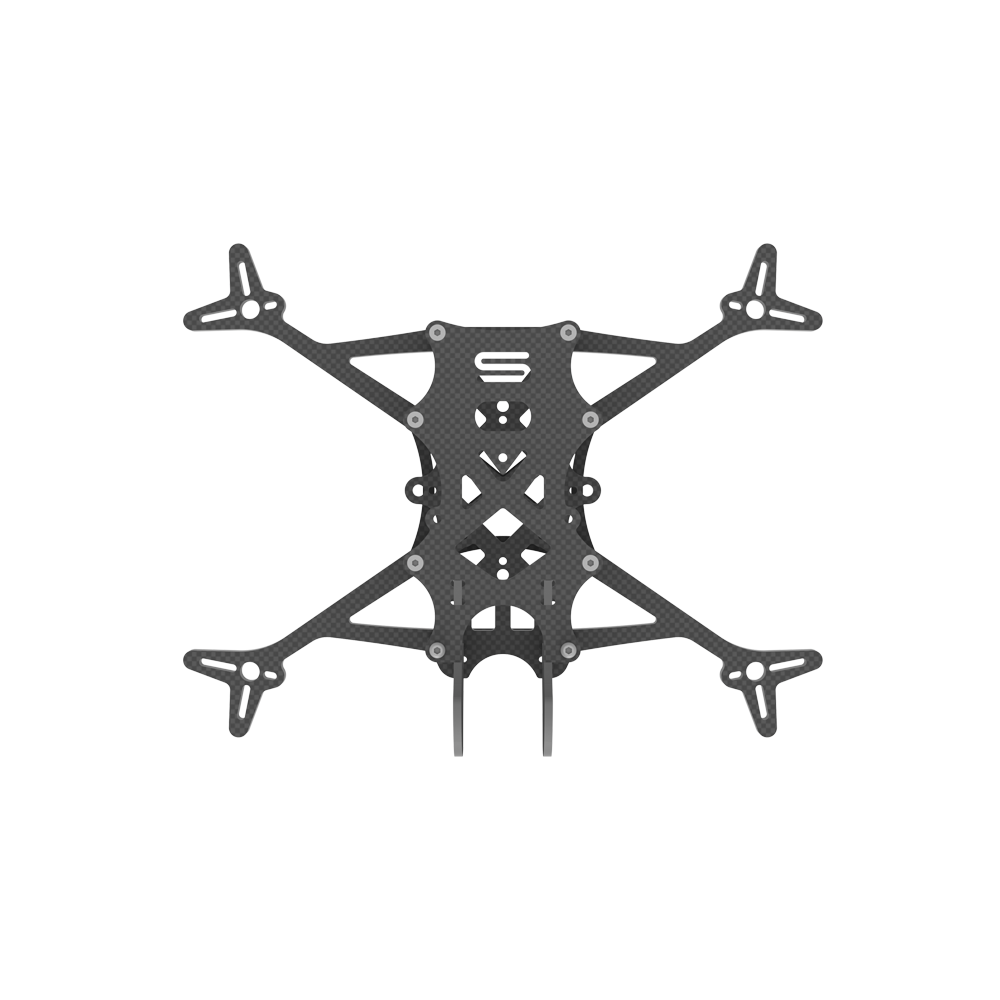

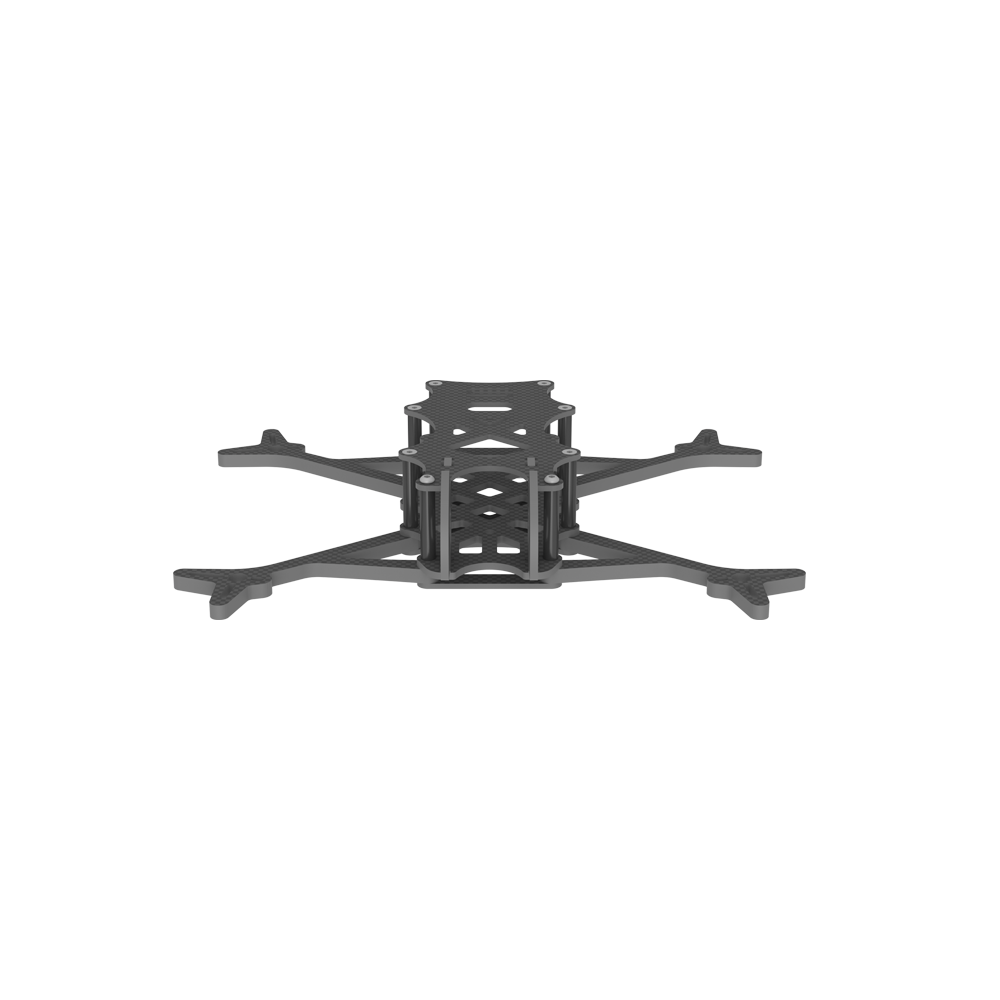

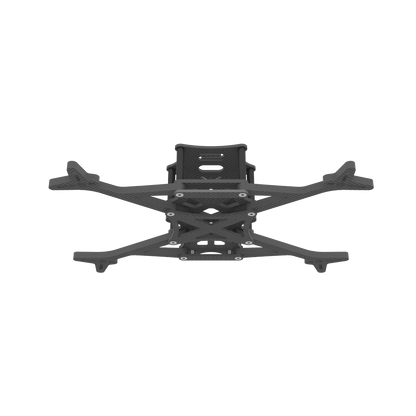

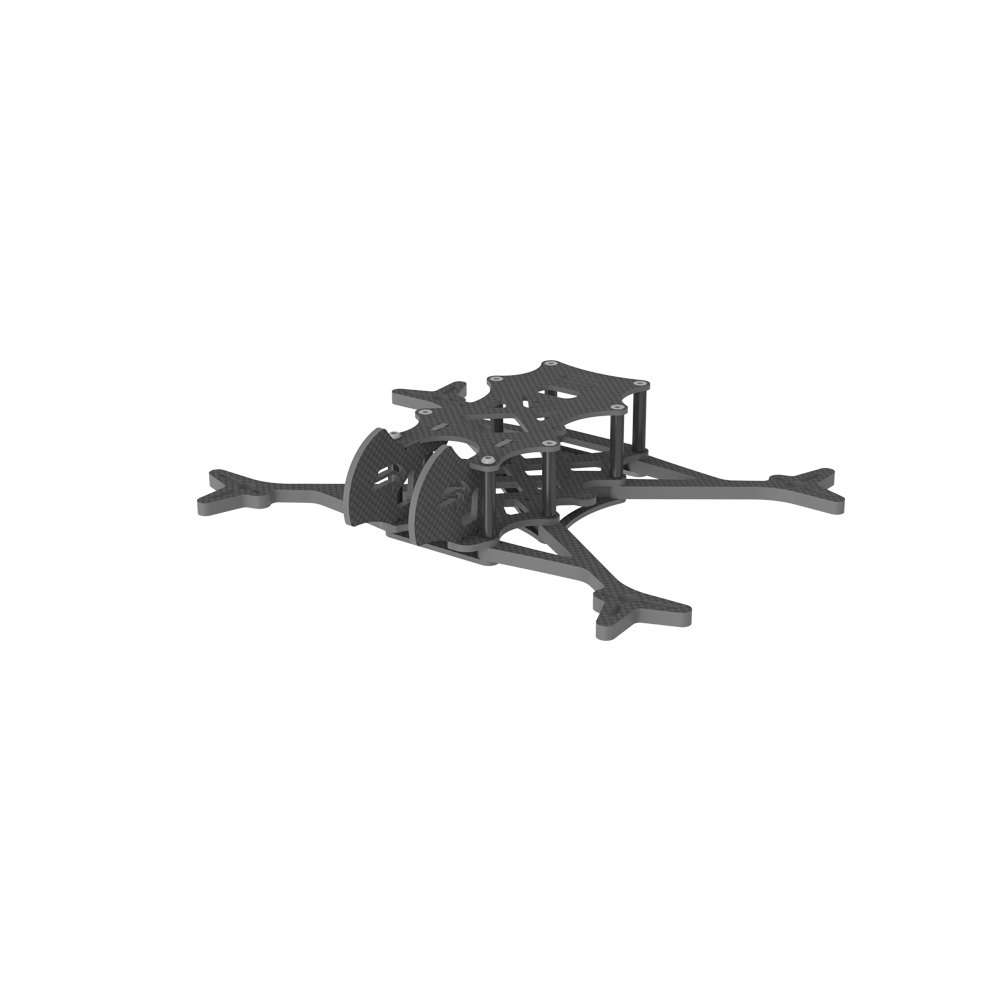

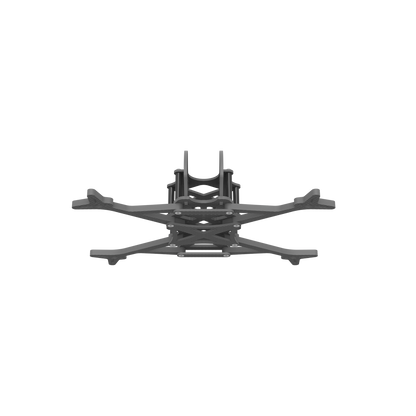

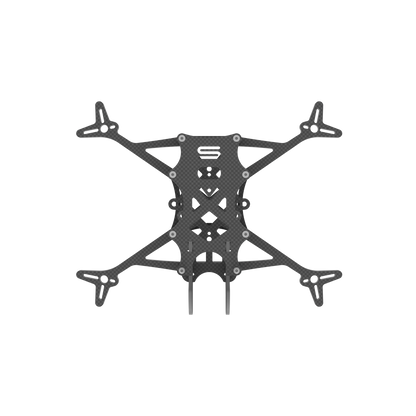

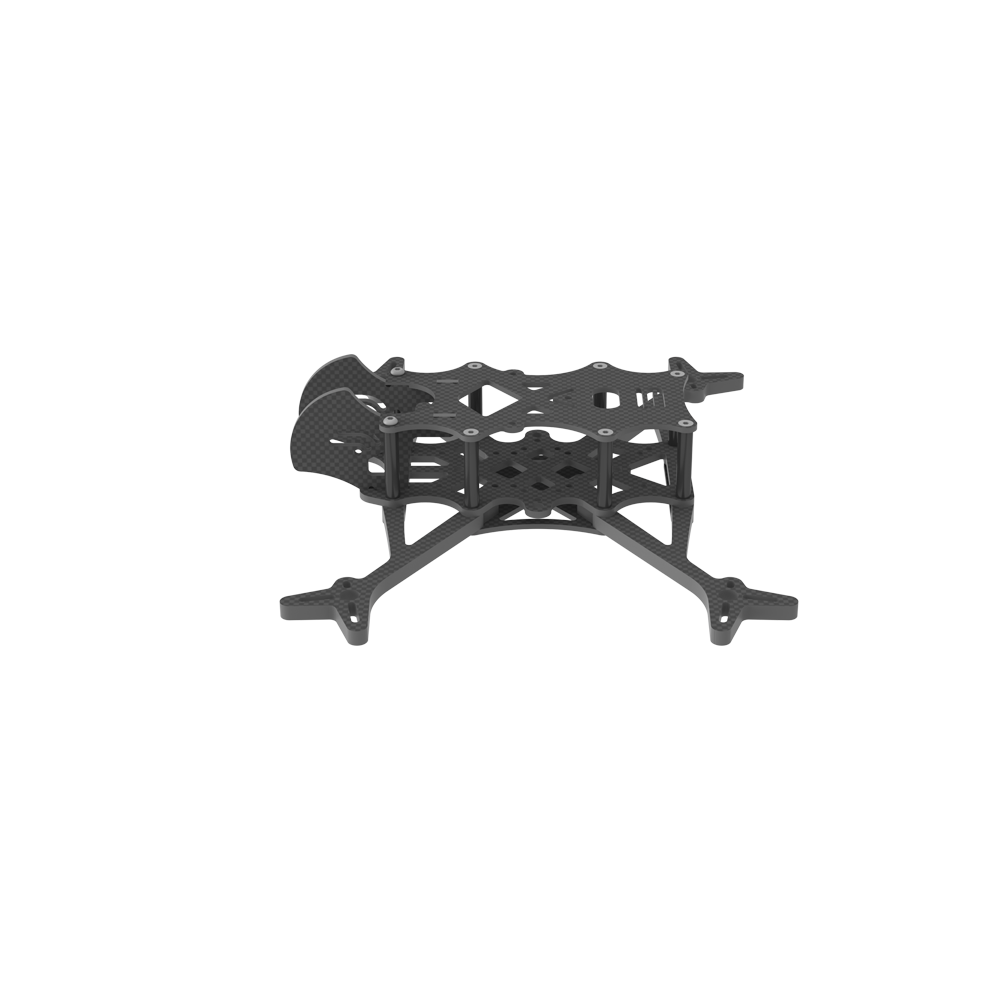

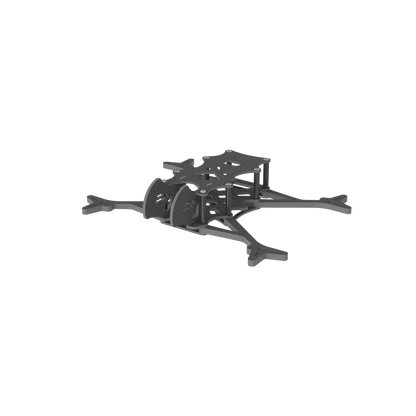

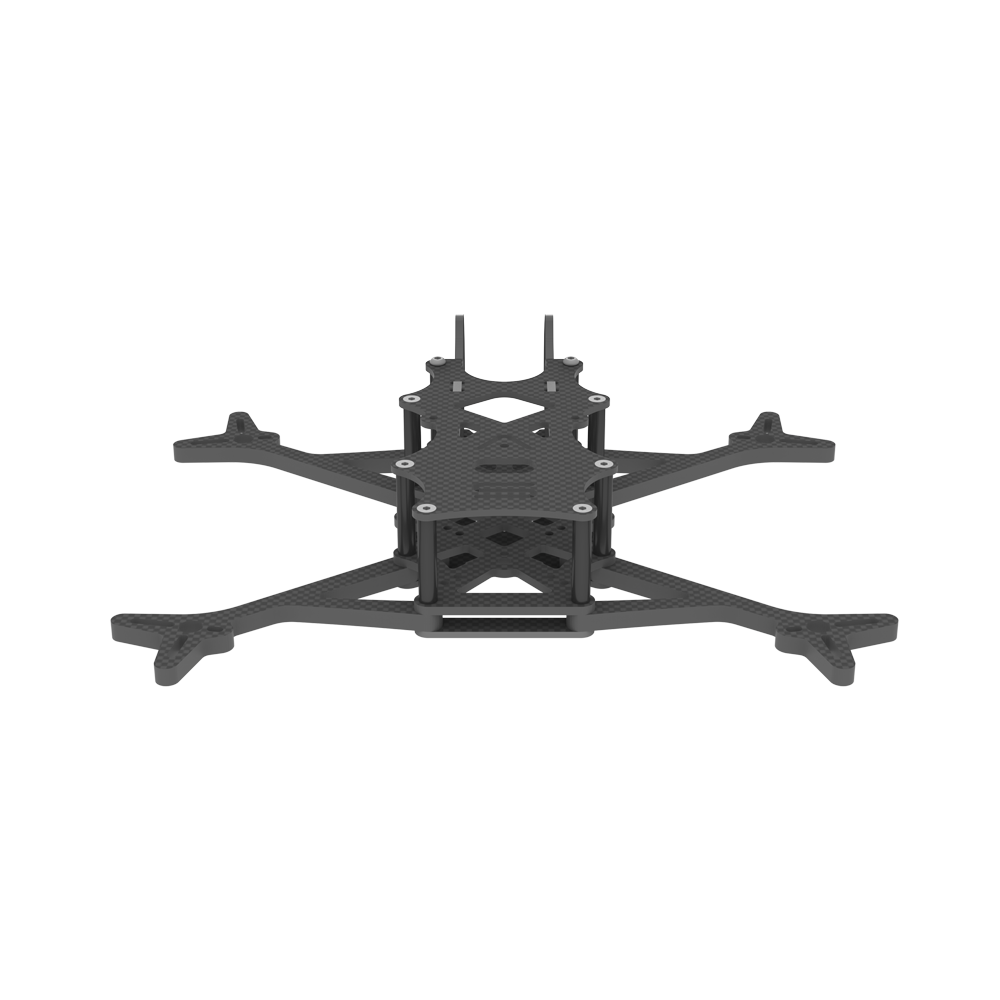

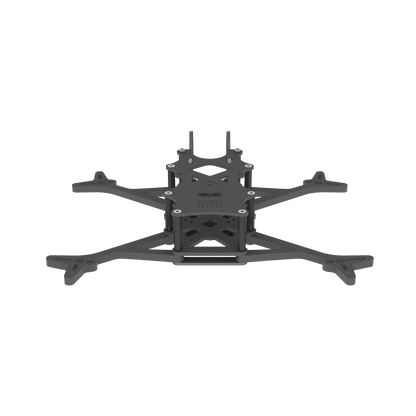

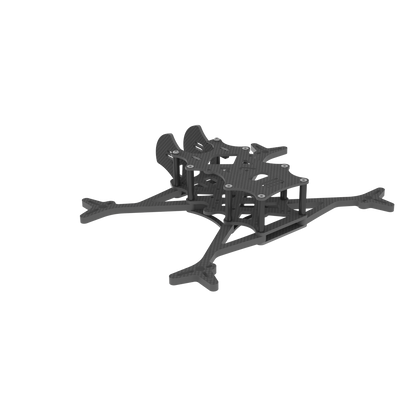

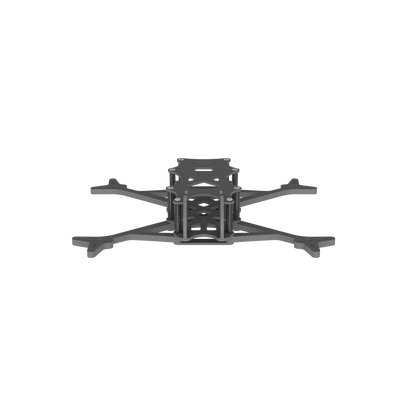

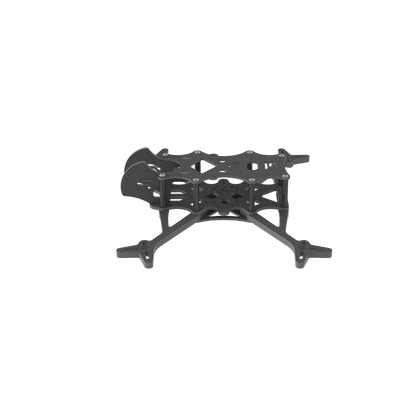

AOS 3.5 V2 FPV Frame Kit

Description We have partnered with Chris Rosser to provide the manufacturing and shipping of his design. This...
Vendor: I-FLIGHT
Availability: Out Of Stock
$80.08
$80.08
Subtotal: $80.08
AOS35-V2-1

AOS 3.5 V2 FPV Frame Kit

$80.08

AOS 3.5 V2 FPV Frame Kit

$80.08

Description


We have partnered with Chris Rosser to provide the manufacturing and shipping of his design. This is not an Open source frame and we can not provide files or changes to this frame. With the purchase of this frame, we provide all CF and Hardware for the frame.
Please check out the designers website at https://www.aos-rc.com/ for more details or to contact them for additional details.
For any 3d printing needed for the frame, please check out https://www.brain3d.co/ and they will help with anything you need.
The AOS 3.5 V2 builds on the scientific approach used to design the AOS 5 V2 and AOS 5.5 V2 but brings the target all up weight below 250g. In many regions quadcopters that weigh less than this are not subject to the same burdensome regulations as heavier drones.
With the right components (naked Caddx Vista and 650mAh 4S) the AOS 3.5 V2 can carry an Insta360 GO 2 and still come in under 250g!
But just because a quad cannot weigh more than 250g doesn't mean that we shouldn't strive for the speed, power and agility typically only available from heavier drones. With the right components you can go toe to toe with 5" freestyle quads with similar flingability and smoothness.
A combination of finite element simulation and real-world flight testing gives this frame exceptional vibration and resonance performance. This means you can run less filtering and higher PID gains for a smoother and more responsive feel with greatly improved mid-throttle oscillations and cool motors.



Specifications


Approx. 40g with all hardware
Designed for up to 3.5 inch props
4 mm Arms
One 25.5x25.5 or 20x20 mm stack in the front and one 25.5x25.5 or 20x20 mm stack in the rear OR
One 30.5x30.5, 25.5x25.5, or 20x20 mm stack in the centre
Fits the Caddx Vista or HDZero 1W Freestyle VTX perfectly
Fits both 20mm (DJI camera) and 19mm (Micro sized) cameras
Motor mounting 9x9 up to 12x12 (1404, 1505 recommended)
Standoffs, frame and motor screws included



Packing List


1x AOS 3.5 V2 FPV Frame Kit
