Description

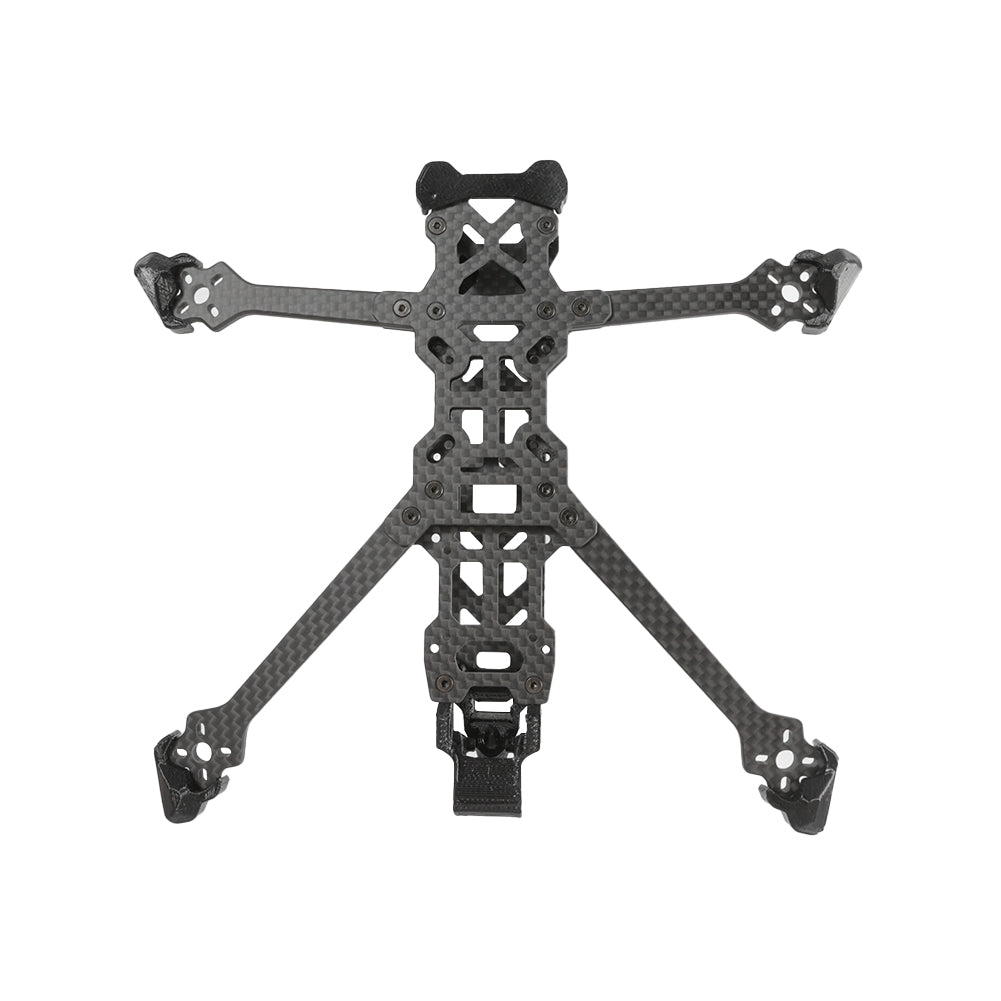

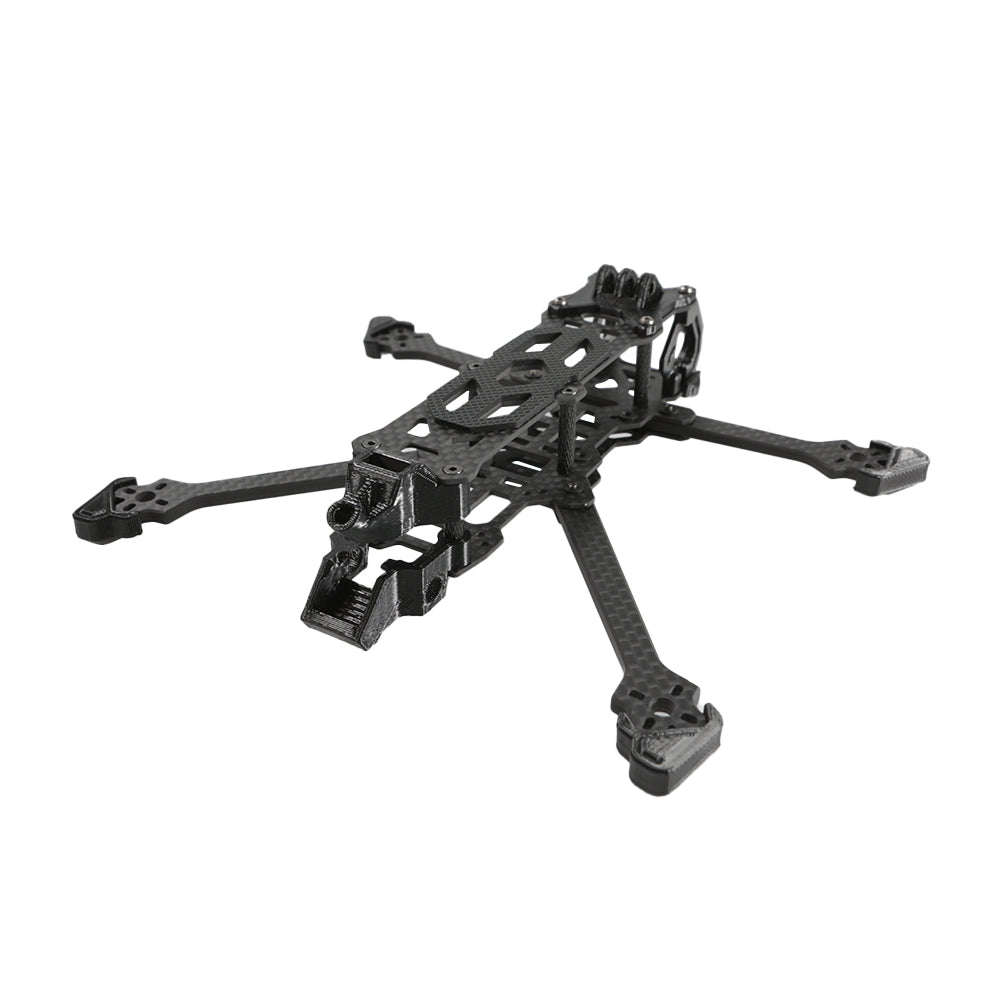

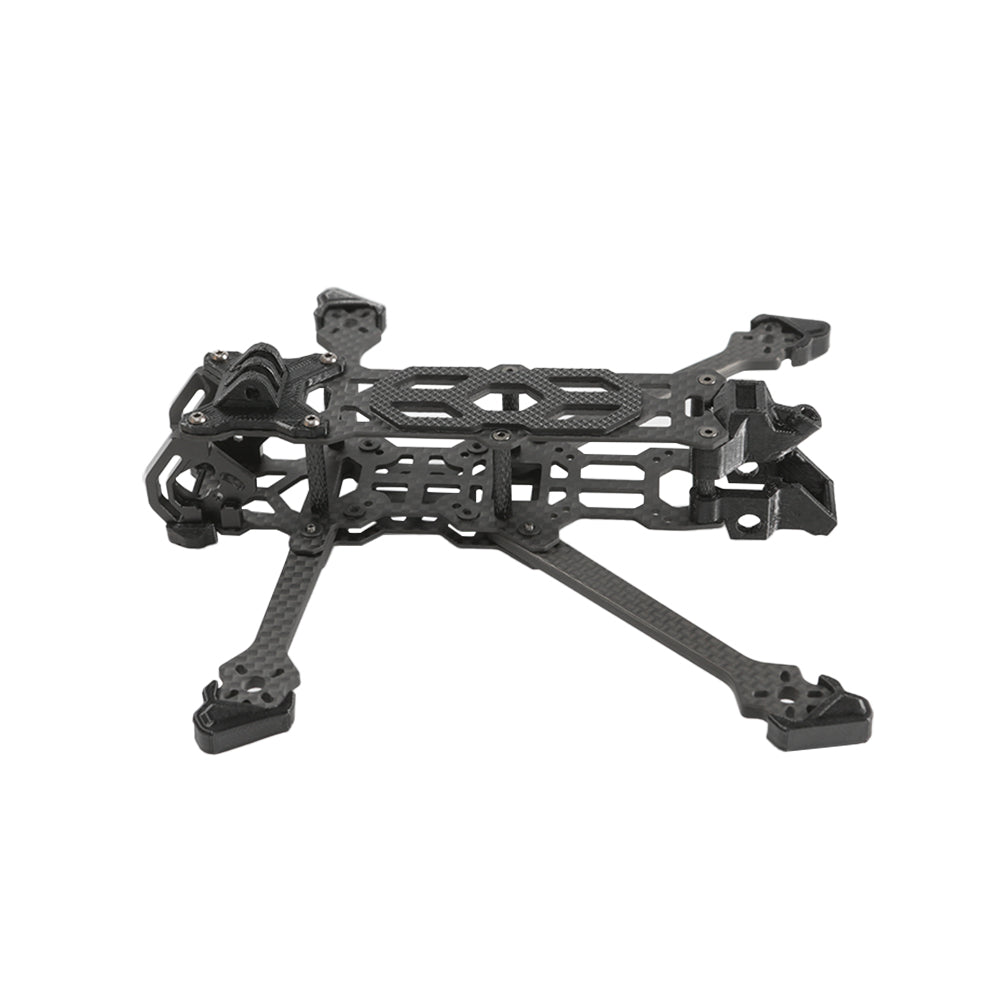

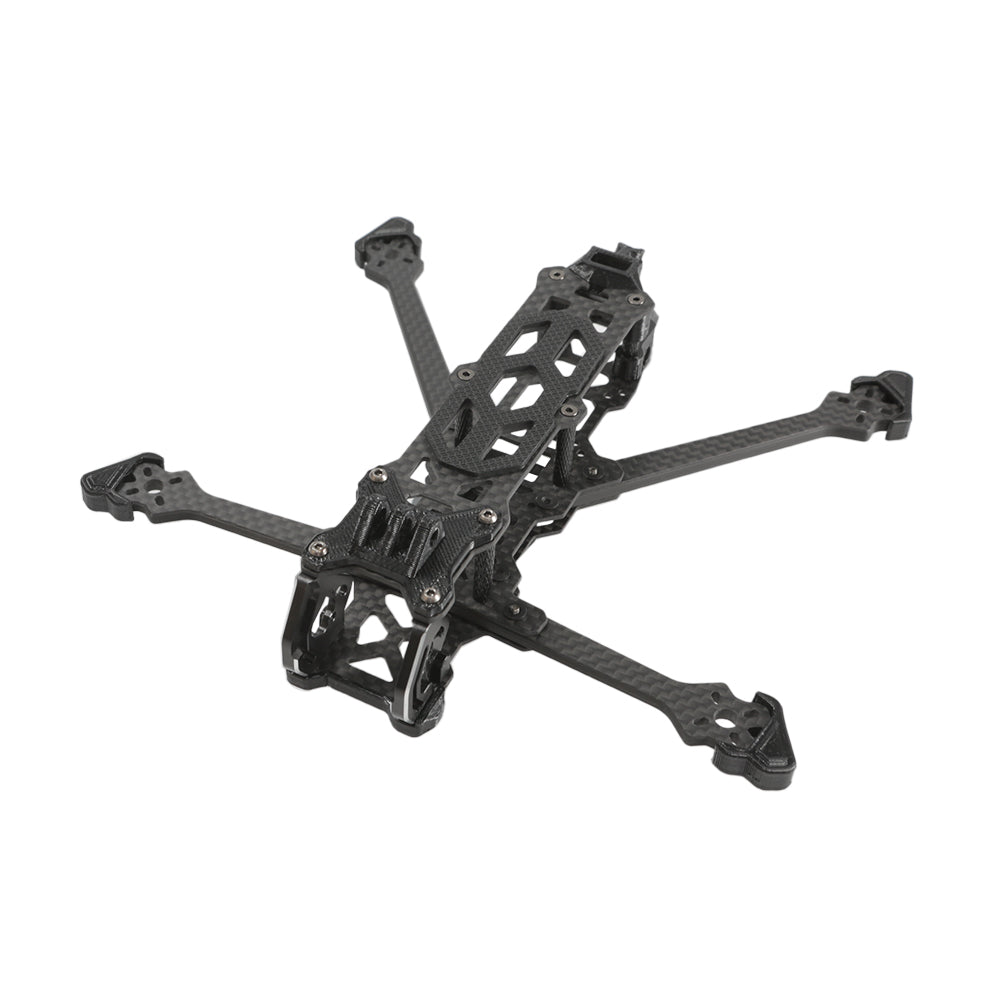

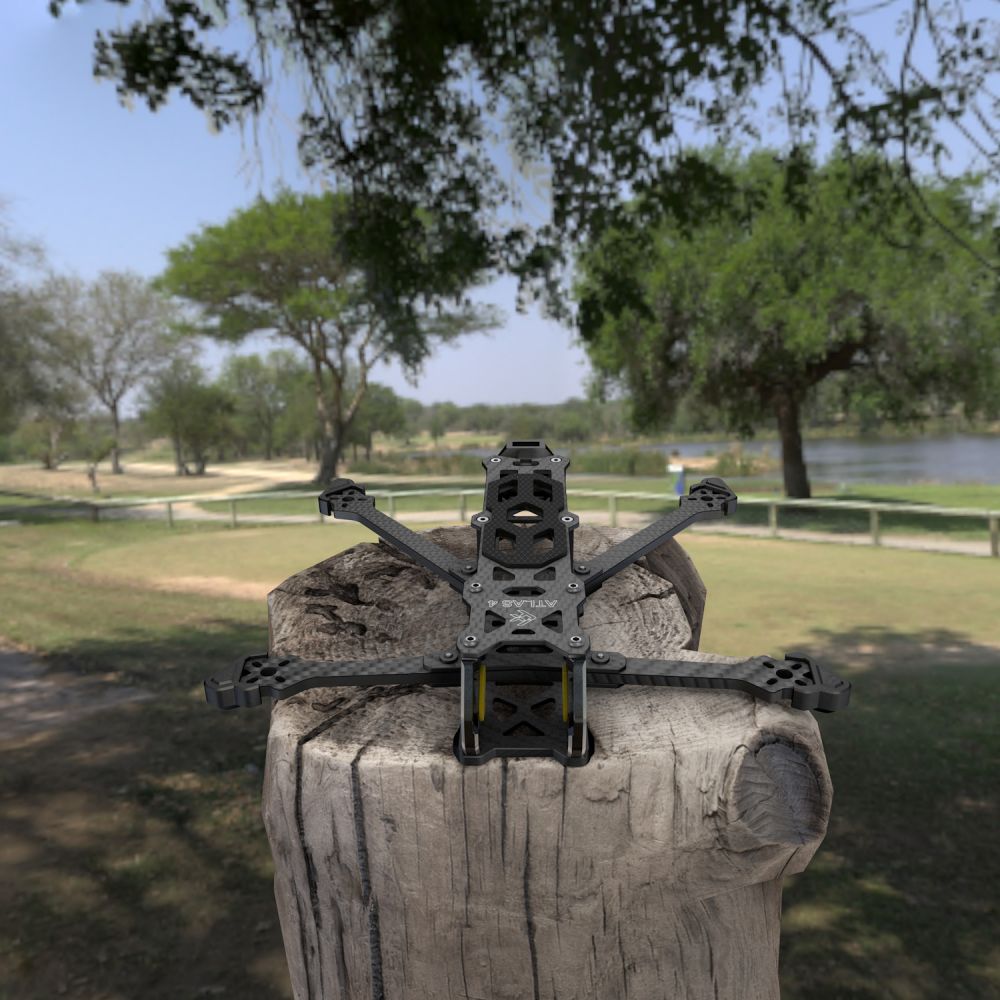

Introducing Atlas, our new 4-inch frame. Weighing in at a mere 55g, Atlas emerges as a formidable contender in the realm of sub-250g frames.
Atlas is anything but your typical long-range or endurance frame. While it excels in extending flight times, its true strength lies in versatility. At FlyFishRC, we've thoroughly enjoyed occasional park freestyle sessions with this frame, and it consistently delivers!
With meticulous design that seamlessly combines light weight and a good level of durability, Atlas is ready to tackle any challenge. Equipped with FlyFishRC's signature CNC aluminum camera plates with silicone shock absorbers and a deadcat-style layout, Atlas not only takes flight; it does so exceptionally well, offering a unique and gratifying flying experience.
And as always, something we take great pride in is our open-source 3D prints, which are readily accessible and remixable on our Thingiverse account. Atlas maintains a mere 55g weight with the complete TPU kit, including arm protectors, action camera base mount, VTX+RX antenna mount, mini GPS holder, and even an XT30 mount that enables integration of an XT30 connector right into the frame. However, our commitment to choice doesn't end here. We've carefully considered your preferences, knowing that not everyone desires an integrated connector. If you prefer an alternative route, there's a cutout in the back of the top plate and one in the front, just behind the action camera base. And, of course, you can always run the lead on the side.
Atlas 4 empowers you to establish your own rules. Want a true sub250g quad? 30-40A AIO, DJI O3/Vista/WS/Analog, FlyFishRC 1804 motors and a 380mAh 6S battery will easily get you below the 250g mark. Want something a bit more spicy? Same setup with FlyFishRC 2004 motors and a bigger battery is what you’ll need!
Share your experiences online, tag us on social media, and let us know what you love or what you'd like to see improved in our products. We promise to treat every piece of feedback with utmost attention.
Thank you for choosing FlyFishRC!
Features:
High-end T700 carbon fiber
Sub-250 build capable
Well thought through structure design
Just 55g with all TPU parts
No props in view
CNC aluminum camera plates
Silicone shock-absorbers for the O3 AU
Compatible with both 19/20mm cameras
High-quality TPU parts
XT30 can be integrated
Dedicated small capacitor cutout
Made for endurance flights
Equipped with all accessories needed for analog and HD builds
12.9-grade strength hardware with Loctite pre-applied
Specifications:
Model: Atlas 4
Geometry: Deadcat
Wheelbase: 173mm
Arm thickness: 3.5mm
Top plate thickness: 1.5mm
Middle plate thickness: 1.5mm
Bottom plate thickness: 1.5mm
Propeller size: 4inch
CNC plate thickness: 4mm
FPV cam spacing: 19mm/20mm

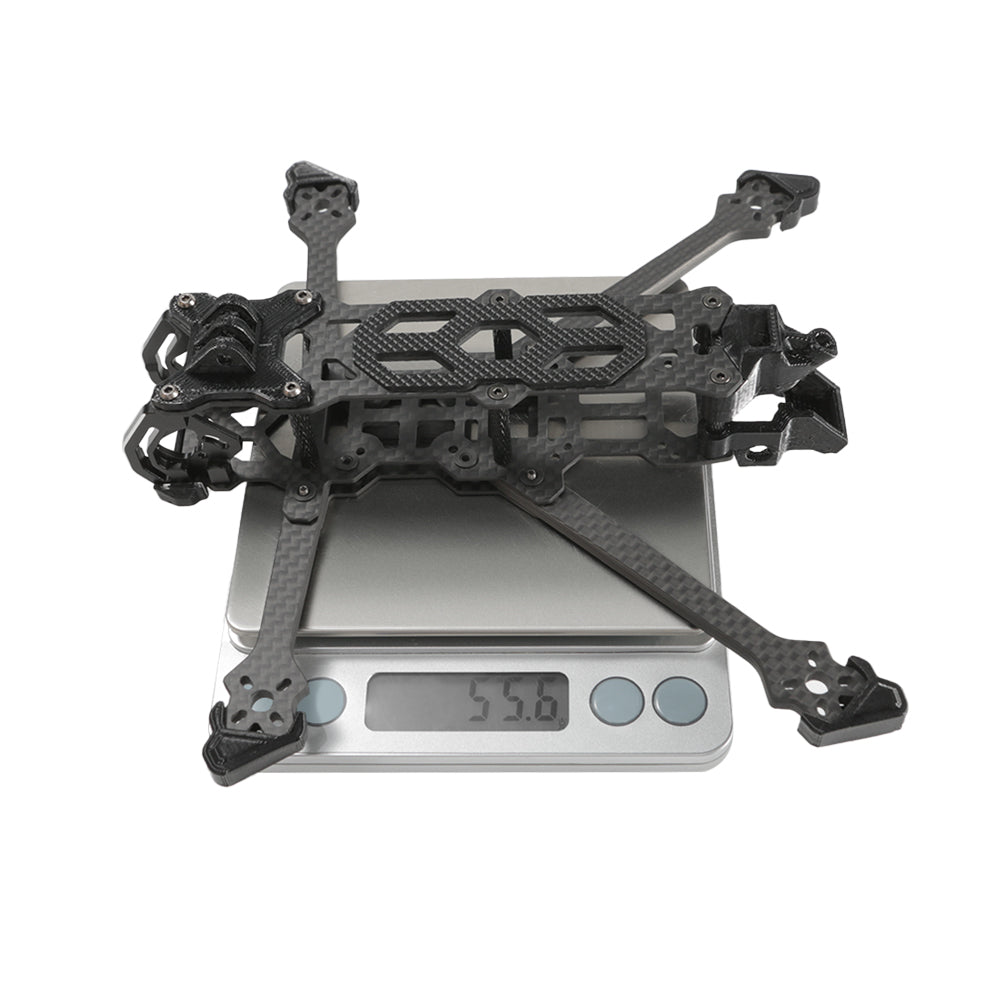

Weight: 55.6g(with TPU parts)
Total Dimensions:108mm*139*28mm
Motor Mounting holes:9mm*9mm/12mm*12mm(M2)
Stack mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
Includes:
1x Atlas 4 Frame Kit
Recommended(Not included)
Flash 1804 Motor
HQProp T4x2.5 Props
HQProp T4x2x3
DJI O3 Air Unit
