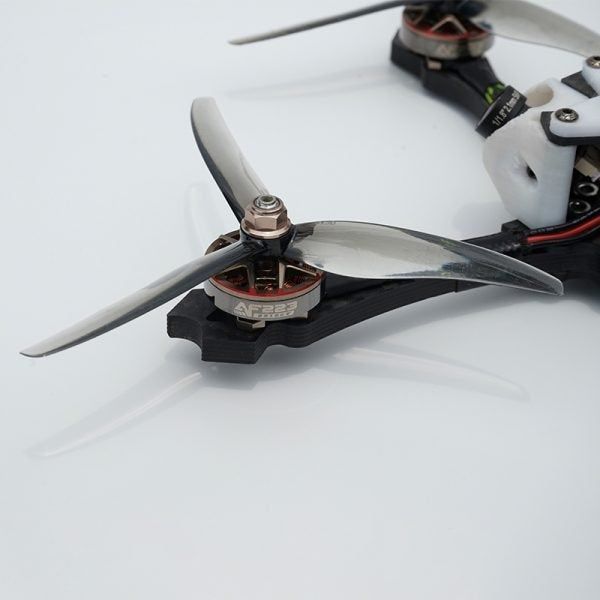

Axis Flying AF223 2203.5 Motor - 1610KV/2910KV/3710KV
The Axis Flying AF223 2203.5 motor is a durable, efficient, and well-built motor best for lightweight and long range 5 inch drones! This stator size, KV, and magnet combination is optimized for low pitch 5 inch props.
The Axis Flying AF204 2004 motor is better for lighter builds while the AF223 is better for heavier builds or if more power is desired..
It features a unique dust-resistant bearing casing which protects the bearing from debris and also from impacts.
SPECIFICATIONS
- KV: 1610KV/2910KV/3710KV
- Configuration: 12N14P
- Prop Adapter Shaft Thread: 5mm with M5 threads
- No.of Cells(Lipo): 3-6s
- Bolt Pattern: M3 (16X16mm)
- Rotor: N52H arc magnets
- Weight: 19.5g
- Wire AWG: 24AWG 13cm length
INCLUDES
- 1 x Axis Flying 2203.5 Motor
