AXISFLYING MANTA 3.5″ Analogue BNF FREESTYLE FPV 6S

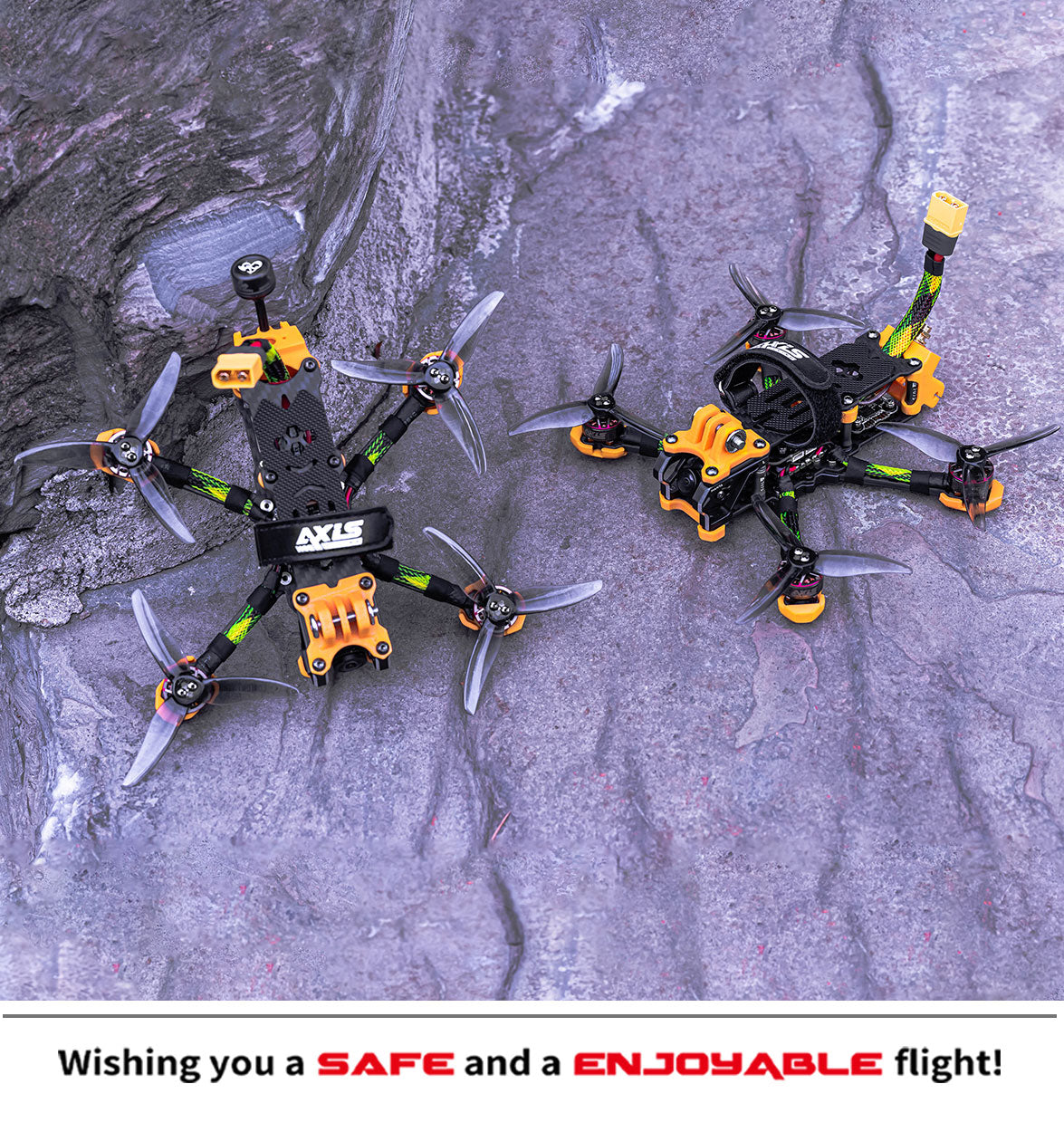

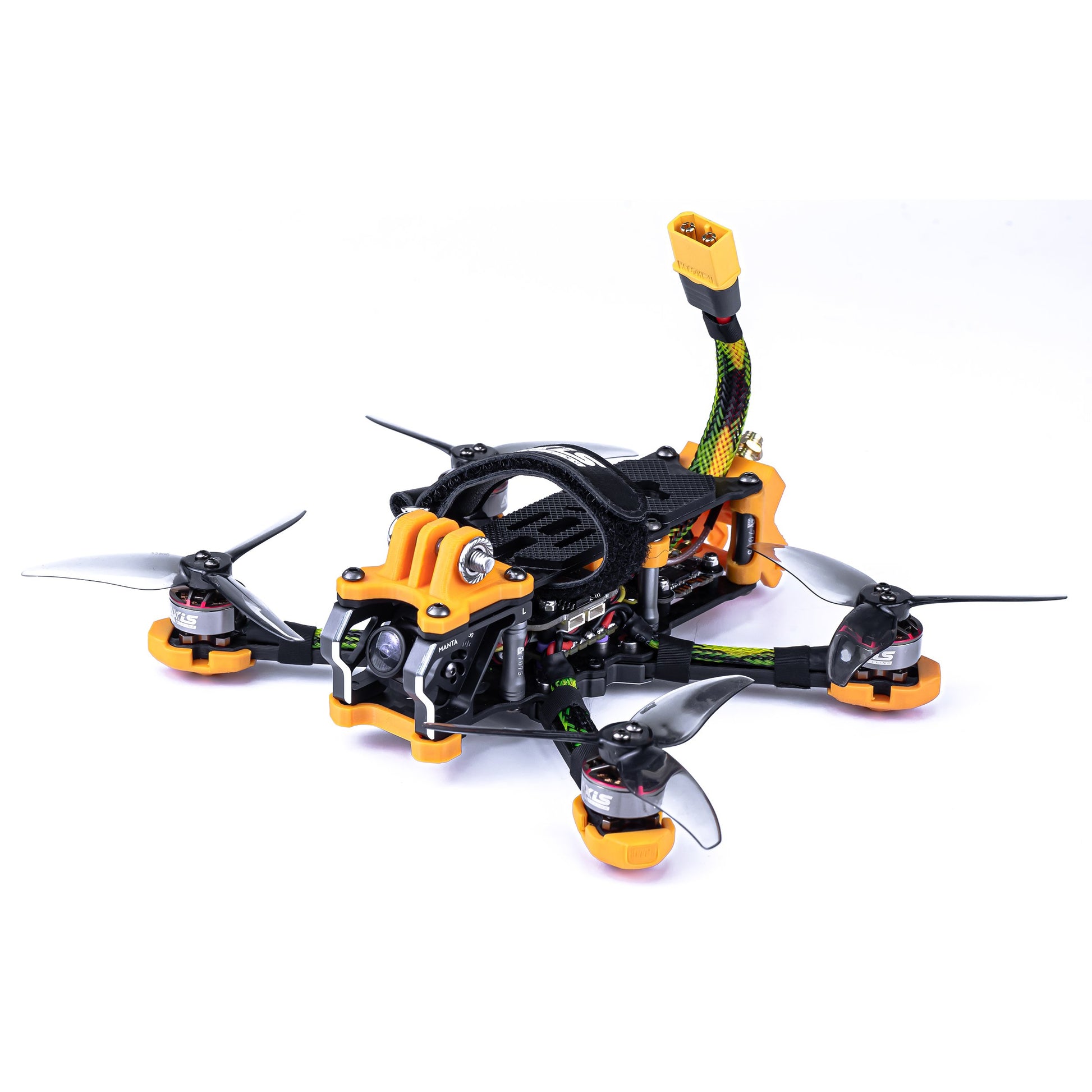

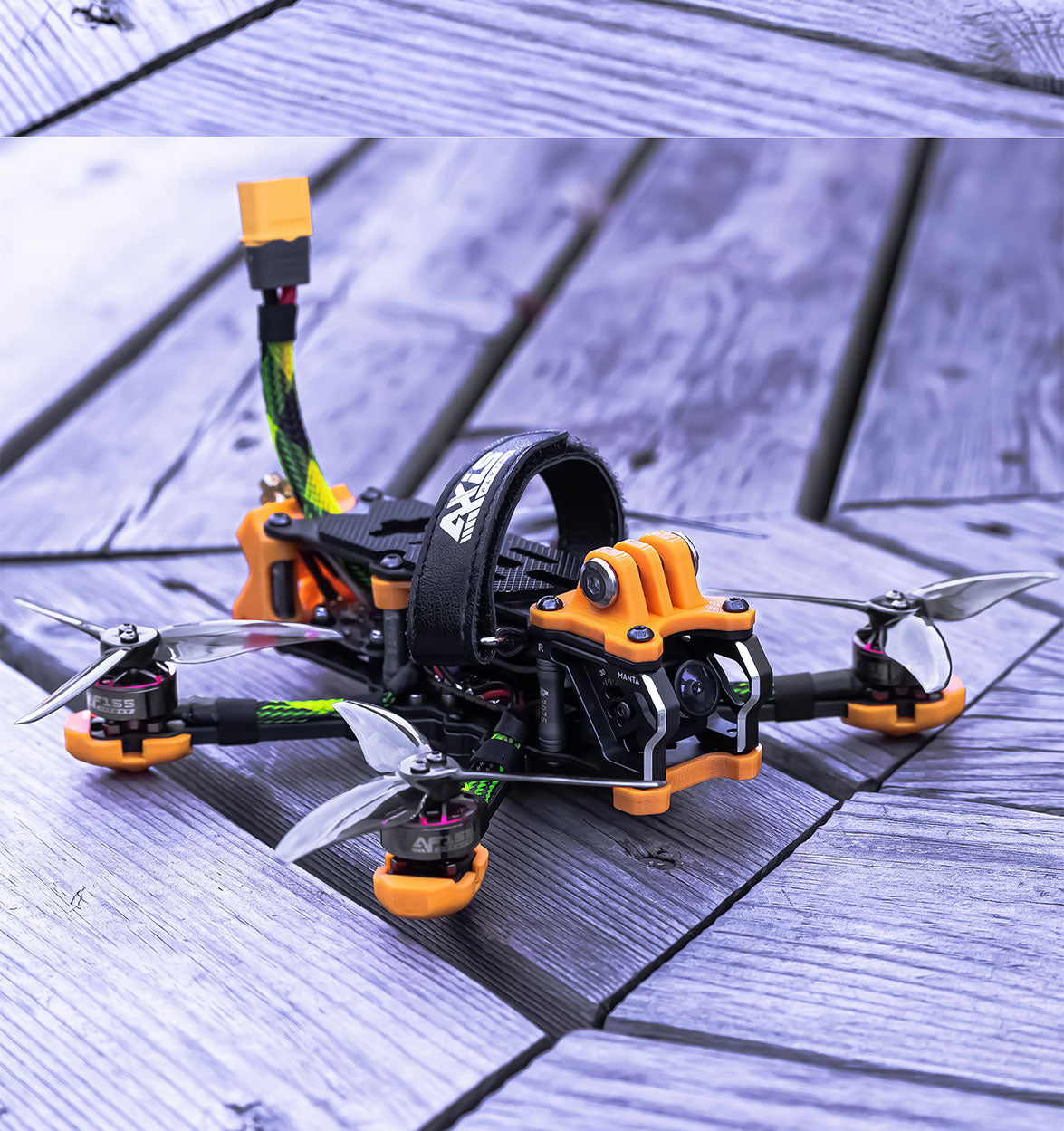

This is the AxisFlying Manta 3.5″ Analogue BNF Freestyle FPV 6S quadcopter.
This is a professionally built Analogue FPV quad, the Manta 3.5″ includes a 800mW RUSHFPV VTX, the Manta is also supplied with a long range receiver of your choice.
Product Highlights
- MANTA 3.5 is the same design as MANTA 5. It main for freestyle market.
- The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.
- The stack mounting is compatible with 20*20MM and 30.5*30.5MM (but only M2) , which can cover most stacks (we suggest 20*20 stacks) . The VTX mounting is compatible with the movable M2* (20*20MM) that can match with HD VTX Vista / link and analogue VTX
- The frame is compatible with 19-20MM wide FPV camera, and the aluminum side plates can effectively protect the camera
- The motor mounting holes are 9*9mm or 12*12mm. AF155 ,AF204 motors and max match with 3.5inch freestyle propellers are recommended
- ExpressLRS receiver : AXIS THOR 2400RX
Product Information

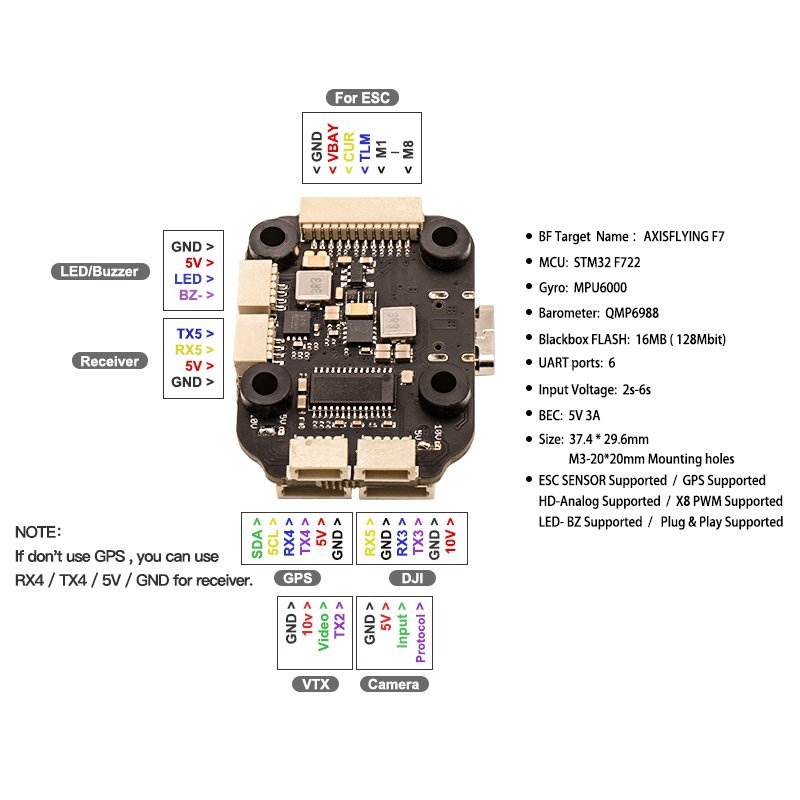

- Flight Controller : AxisFlying F7
- Target Name: AXISFLYING F7
- MCU: STM32 F722
- GYRO: MPU6000
- Blackbox Flash: 16MB (128bit)
- UART ports: 6
- Input Voltage: 2-6S
- BEC: 5V 3A
- Size: 37.7 x 29.6mm, M3- 20x20mm mounting holes
- ESC sensor supported /GPS supported
- HD-Analogue supported / X8 PWM supported
- LED – BZ Supported / Plug and Play supported
ESC
- Name: Axisflying 30A – BLheli_S
- Input: 2-6S
- Fimware: BLHELI_S
- Current: 25A continuous, 35A peak current
- Meter: Integrated current meter
- Size: 20 x 20 mounting holes.
- Frame
- Frame: Axisflying manta 3.5″ FPV freestyle frame
- Size: 3.5″
- Top Plate thickness : 2mm
- Bottom plate: 2mm
- Arm thickness: 4mm
Motors
- Name: AF155
- KV: 2350KV (6s)
- Stator size: 15x5mm
- Shaft Diameter: 2mm
- Max Power: 330w
- Configuration: 12N14P
- Dimensions: 18.9*18.6mm
- Weight: 10.5g
- Peak Current : 17A
Rush Tank Ultimate Mini
- Item Name: Rush Tank Mini
- Input Voltage: 7-36V DC
- Output Voltage: 5V 1A
- 12V Input Current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
- Channels: 48CH RaceBand / LowRace
- Power: PIT/25/200/500/800 mW
- Installation Hole: 20*20mm
- Dimensions: 28*28*3.3 mm
- Weight: 4.46g(without dust cover), 5.4g(with dust cover)
- Camera : Runcam Nano 2
- Antenna: Axisflying SMA Antenna (100mm)
In the box
- AXISFLYING MANTA 3.5″ BNF FPV FREESTYLE 4S
