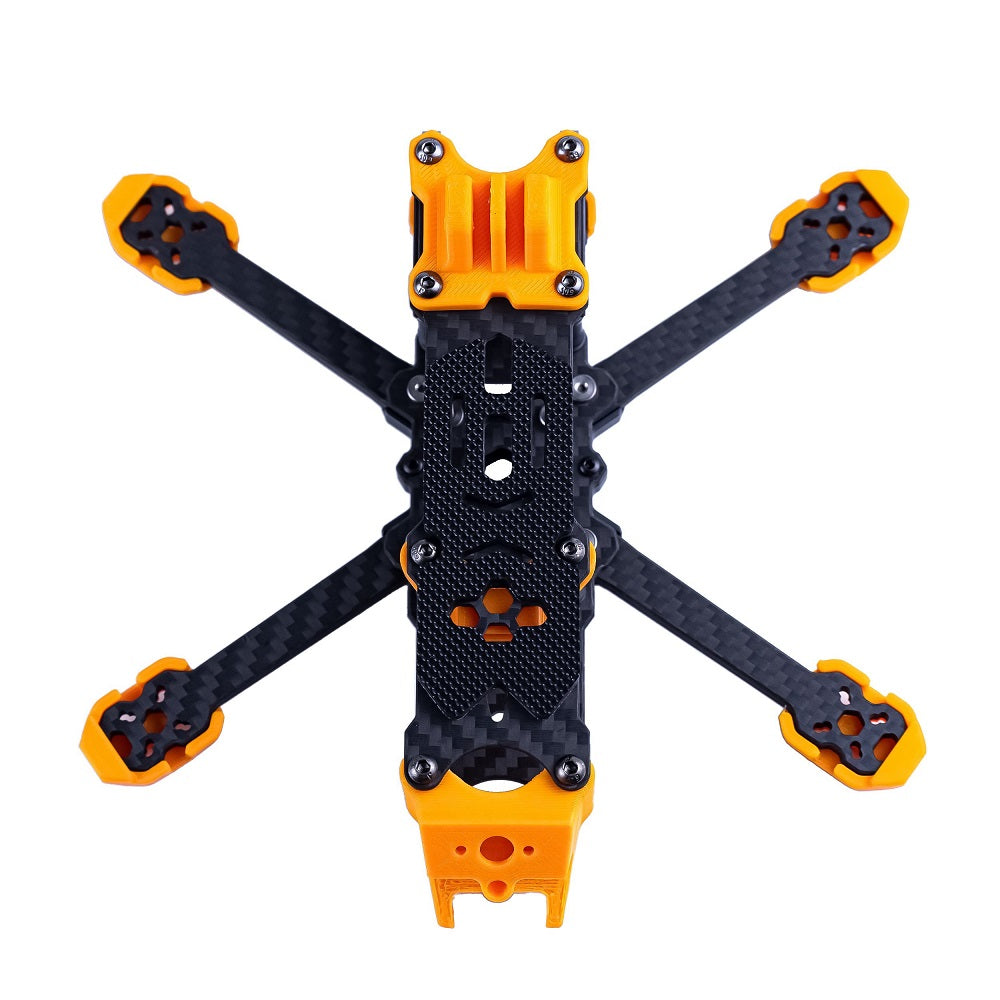

AxisFlying Manta 3.5inch Squashed X Freestyle FPV Drone Frame W- TPU Accessories

Features:

• MANTA 3.5 is the same design as MANTA 5. It mainly for freestyle market.
• The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.
• The stack mounting is compatible with 20*20MM and 30.5*30.5MM (but only M2), which can cover most stacks (we suggest 20*20 stacks) . The VTX mounting is compatible with the movable M2*(20*20MM) that can match with HD VTX Vista / link and analog VTX
• The frame is compatible with 19-20MM wide FPV camera, and the aluminum side plates can effectively protect the camera
• The motor mounting holes are 9*9mm or 12*12mm.
• Recommend AF155 or AF204 motors and mix 'n match with 3.5inch freestyle propellers are recommended.

Specifications:

• Name: Manta 3.5"
• Wheelbase: 162mm
• Type: Squashed X
• Carbon Material: T700
• Prop Max: 3.5"
• Stack Mounting: 20x20(M2), 30.5x30.5(M2)
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 2mm
• Bottom to Top Distance: 25mm
• Motor Mounting: 9x9mm, 12x12mm(M2)
• Arm Thickness: 4mm
• Camera Space: 14-20mm
• VTX Mounting: 20x20mm(M2)
• Weight: 85g (excluding TPU)

Recommended Configuration:

• 4S Motors: AF155-3450KV, AF204-2910KV
• 6S Motors: AF115-2350KV, AF204-1610KV
• Stack: Axisflying F722 + 30A 6S ESC
• Propeller: GF3520

Package Includes:

• 1 x AxisFlying Manta 3.5inch Squashed X Freestyle FPV Drone Frame W/ TPU Accessories
