MANTA 3.5 is the same design as MANTA 5. It mainly for freestyle market.
The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.
The stack mounting is compatible with 20*20MM and 30.5*30.5MM (but only M2), which can cover most stacks (we suggest 20*20 stacks) . The VTX mounting is compatible with the movable M2*(20*20MM) that can match with HD VTX Vista / link and analog VTX
The frame is compatible with 19-20MM wide FPV camera, and the aluminum side plates can effectively protect the camera
The motor mounting holes are 9*9mm or 12*12mm. AF155 ,AF204 motors and max match with 3.5inch freestyle propellers are recommended.
Specifications:
Name: Manta 3.5"
Wheelbase: 162mm
Body Dimension: 165x155mm
Motor: Axisflying AF155
Stack: F7 FC+30AESC
Props: Gemfan 3520 Tri-Blade T-Mount
Camera:Â RunCam MIPI
VTX: RunCam Link
Weight: 233g
Package Includes:

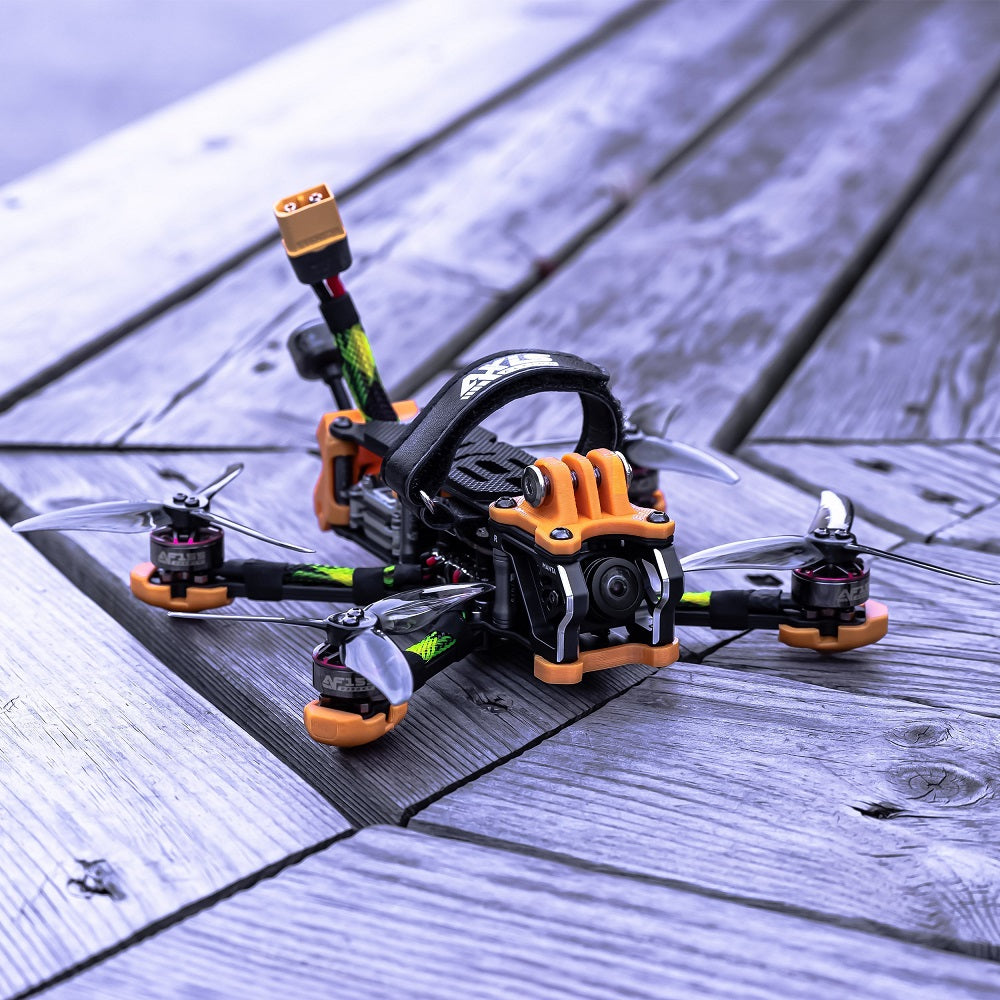

1 x AxisFlying Manta 3.5inch Squashed X Freestyle HD BNF FPV Drone W/ RunCam Link VTX and MIPI Camera
