Description:
Model: BR D700
Built-in core chips: SONY CXD4140GG+ICX673AK CCD
Lens:300W pixel camera {M12-2.8IR(3MP)}
Resolution: 700 TVL, 976(H)*582(V)
Model:PLA system
Video output: 1.0Vp-p750hm
Video transmission: AV
Dimensions: 25*25* MM
Pixel: 60W
Minimal illumination: 0.005LUX/F1.2
Signal to Noise Ratio: ?48dB
VAD: 1.0Vp-p/75?
Automatic Gain Control: Auto
White balance: Auto
Backlight Compensation: Auto
Exposure Mod: Electron exposure
Protective function: Short-current protection, Lighting-protection.
Electronic shutter: 1/50(1/60) - 1/100000 Seconds
Working Voltage: DC8-18V
Working currency: 100mA (Max. 1000mA)
Operating Temp: -10?-50?
Operating Humidity: 0%-96%
Weight: 16g
Included

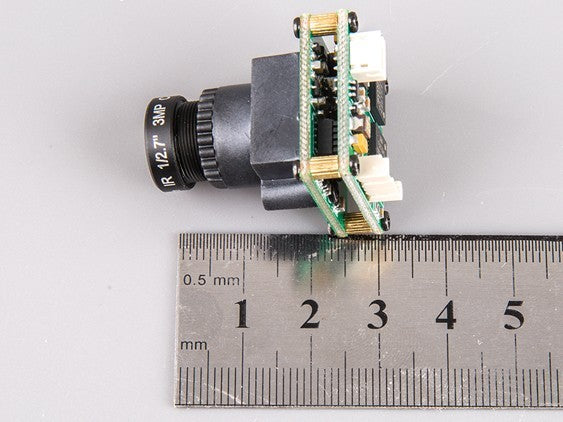

1 x CCD 960H Camera
1 x 3p cable
Use the tilt ring to assist in mounting this camera
