Beta65X HD Whoop Quadcopter (2S)

Beta65X HD - The Lightest and Smallest Brushless Cinewhoop in the world!

This is a thrilling classical brushless cinewhoop-Beta65X HD! Classical size of 65mm and light weight in 30g only. Adopted with the high-definition 1080P@60fps Betafpv Nano HD Camera, lead you to a fairly clear image of every interesting moment with your family and your pet. Stay home and have fun with Beta65X HD. We also provide a Beta65X FPV version for your choice.

Videos of Beta65X HD

Bullet Point

• Beta65X HD is the lightest and smallest brushless cinewhoop at the world! Small size in 65mm and light weight of 30g, gives pilots a good balance of weight and nice punch on 2S battery.
• Installed with the lightest Betafpv Nano HD camera. Ultra definition with 1080P@60fps resolution, super-light weight with 6.8g, complete functions with OSD, audio and record.

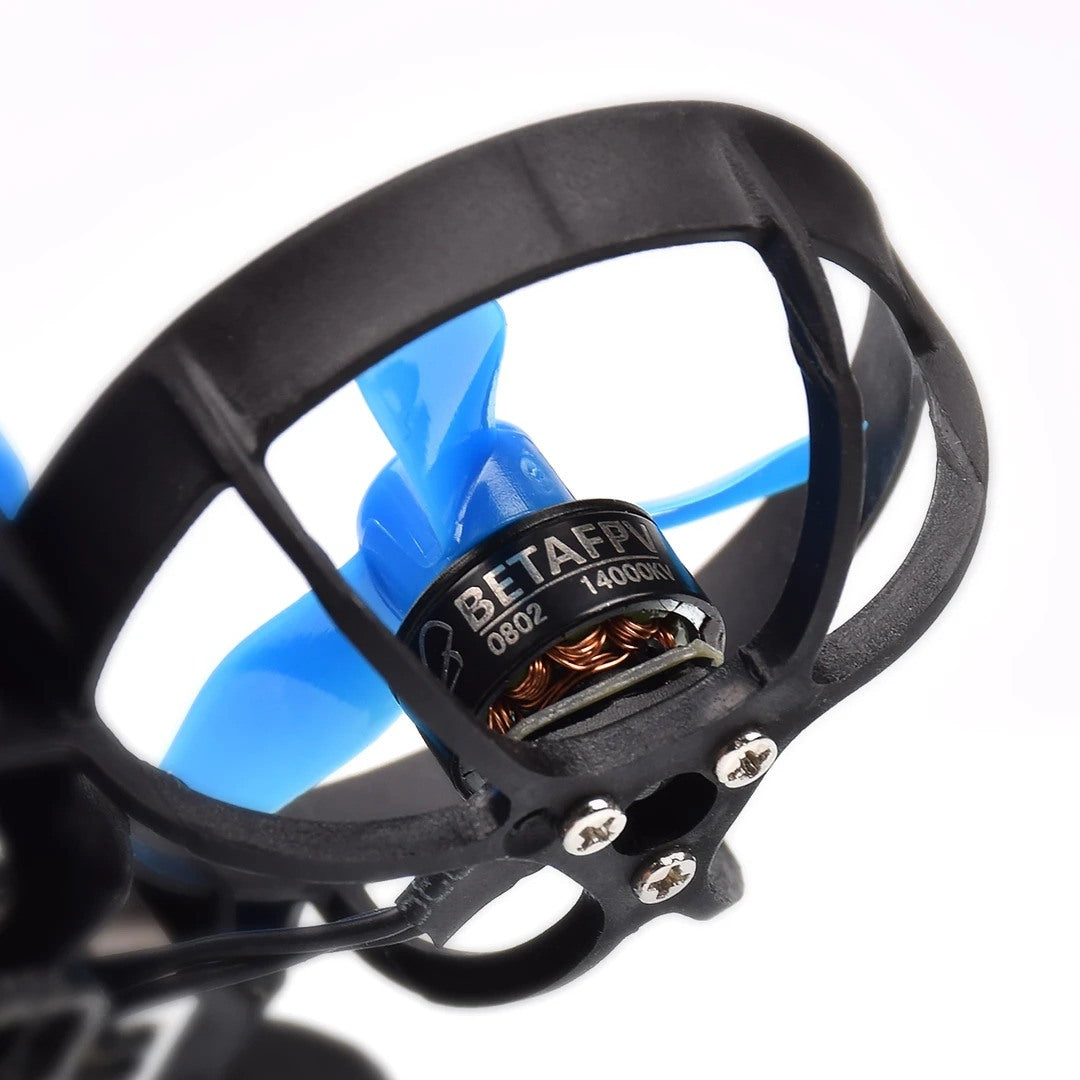

• Customized with the lightest 0802 14000KV motors, give you a extreme power no matter you fly indoor or outdoor.
• Soldered with the BT2.0 connector, which can provide a stable and powerful continuous current so that you can extend the fligth time to 3:00-4:00mins compared to the Beta65 pro 2.
• Used Meteor65 frame and adopted the stackable battery slot to cut down on the wind resistance.
• With the high performance STM32F411 processor FC boards and betaflight_matekf411rx_4.0.0 (Development Version).

Specification

• Item: Beta65X HD

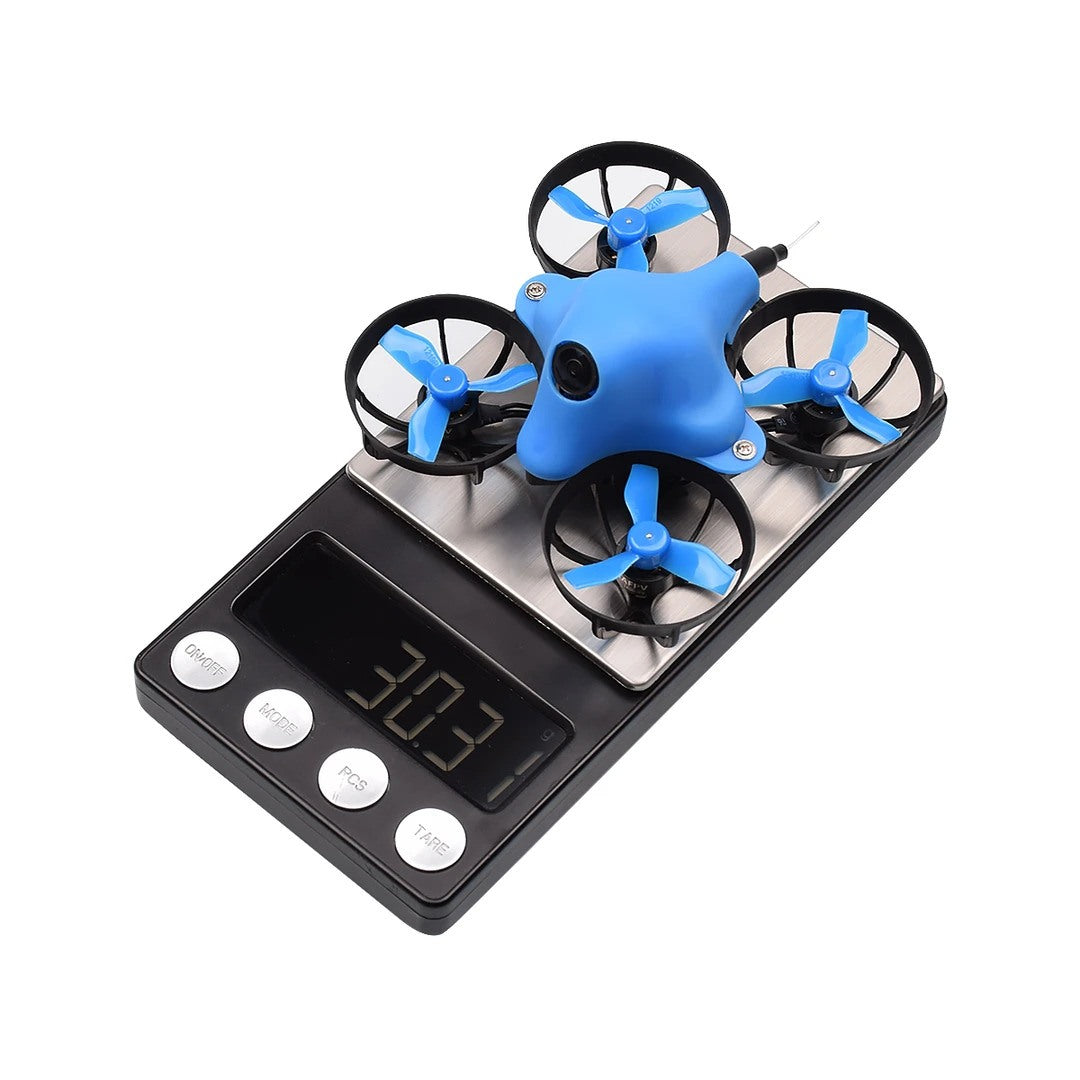

• Weight: 30g (without battery)
• FC: F4 AIO 2S FC
• Frame: Meteor65 Frame
• Motors: 0802 14000KV Motor
• Props: Gemfan 31mm 3-blades props 1.0mm shaft hole
• Camera: Betafpv Nano HD Camera
• VTX: New 25mW VTX
• Canopy: Canopy for Nano HD Camera
• Receiver Option(Internal): Frsky FCC/ Frsky LBT/ Futaba/ PNP
• Receiver Option(External): DSMX/ Flysky/ TBS Crossfire
• Batteries: 2pcs BT2.0 300mah Batteries

Nano HD Camera & VTX

Betafpv Nano HD Camera -This is the Lightest HD camera at the current market! Ultra definition with 1080p resolution, super-light weight with 6.8g, complete functions with OSD, audio and record.  Also, it adopts a 1/2.7" CMOS sensor and a 1.8mm lens for excellent latency. Best choice for all whoop drones like Beta65X / Beta75X / Beta85X. Discover the beauty of the world and record the wonderful life!

The stock VTX on the 65X 2S drone is the M series 25mW VTX.

Note: the 25mW VTX is marked as M02 on the first batch. It will be changed to M01 V2 since the second batch). Compared with the original M01 VTX, the 5V pad change its position.

With the high definition of 1080p resolution, you will have a fairly clear image.

Flight Controller

This F4 AIO 2S FC is suitable for a lighter 1-2S whoop drone perfectly, like Beta65X，Beta65 Pro 2 or Beta75 Pro 2 etc. It integrated with a Betaflight F411 processor FC, Betaflight OSD, SPI Frsky receiver and 1-2S 5A ESC. So the 1-2S drone could save much weight for a faster fly experience.

Meteor65 Frame

Meteor65 frame is the most popular and colorful 65mm frame in this winter.

We only need to add 0.3g 3D printed adapter and change it to a 2S 65mm frame. Still light enough and you could experience the aggressive power of 2S now.

Note: The STL file for this 2S battery adapter is public and you could print it by yourself.

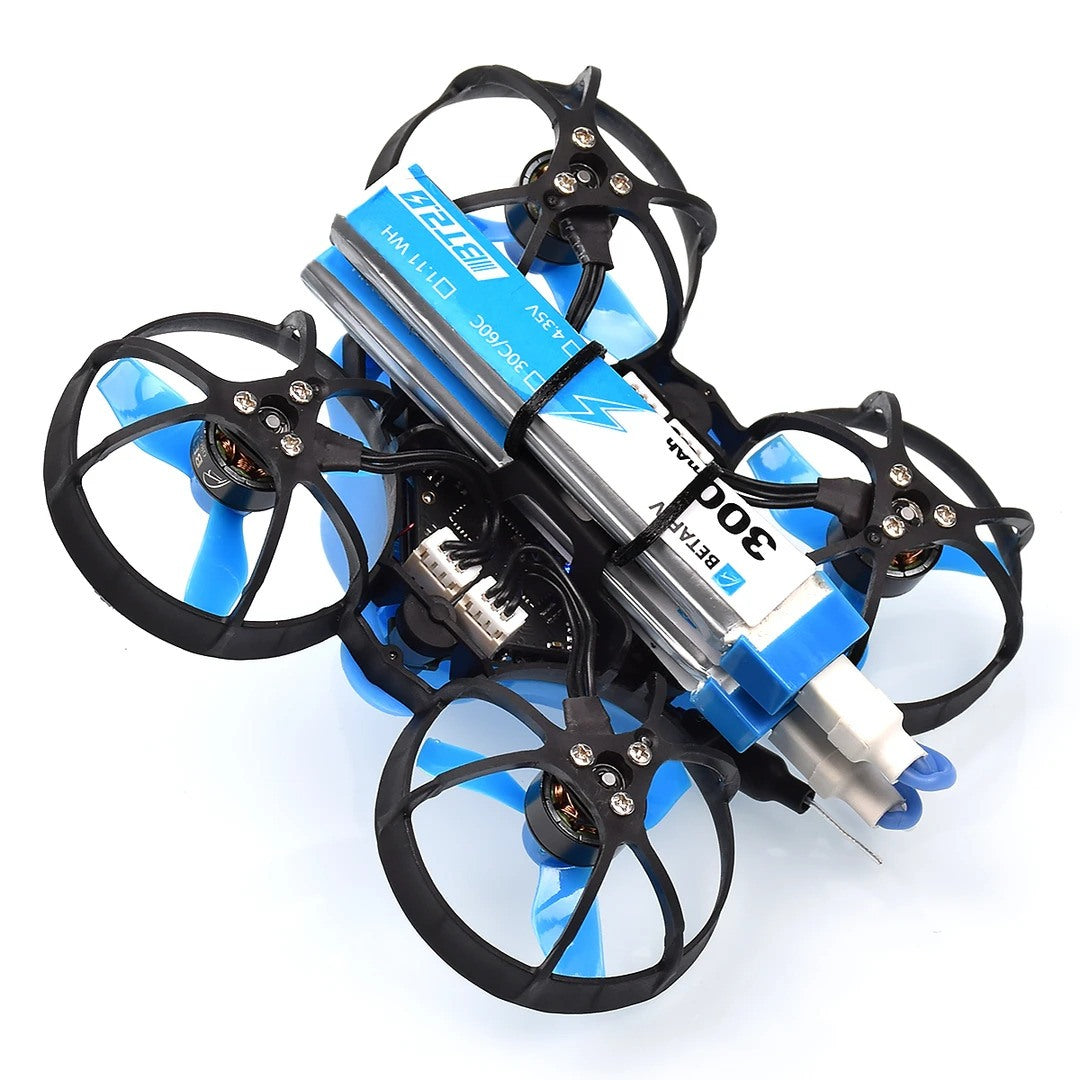

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector has decreased internal resistance of connector effectively allowing more current to be transferred, which means it supports 9A continuous current (15A burst). This means stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A. You can enjoy more flight time without disturb of low voltage warning due to reducing voltage sag. For more instruction, click here.

We know some of pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 connectors for those people who want to convert the PH2.0 connector to BT2.0 connector.

• BT2.0 Connectors (10pcs)
• 2S Whoop Cable Pigtail (BT 2.0)
• BT2.0 1S Whoop Cable Pigtail
• BT2.0-PH2.0 Adapter Cable
• BT2.0 Battery Charger and Voltage Tester
• BT2.0 Connector 1S Lipo Charger Board
• BT2.0 450mAh 1S Battery
• BT2.0 300mAh 1S Battery
• BT2.0 260mAh 1S Battery

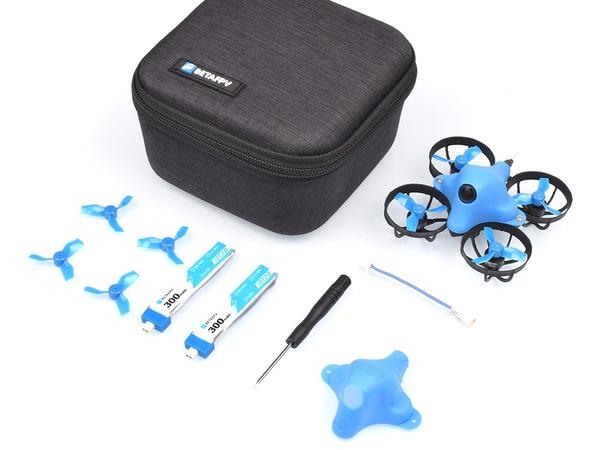

Package

• 1 * Beta65X HD Whoop Quadcopter (2S)
• 1 * Spare 31mm 3-blades props (2CW+2CCW)
• 2 * BT2.0 300mAh 1S Lipo batteries
• 1 * BT2.0-PH2.0 Adapter Cable
• 1 * Spare Canopy
• 1 * Screwdriver
