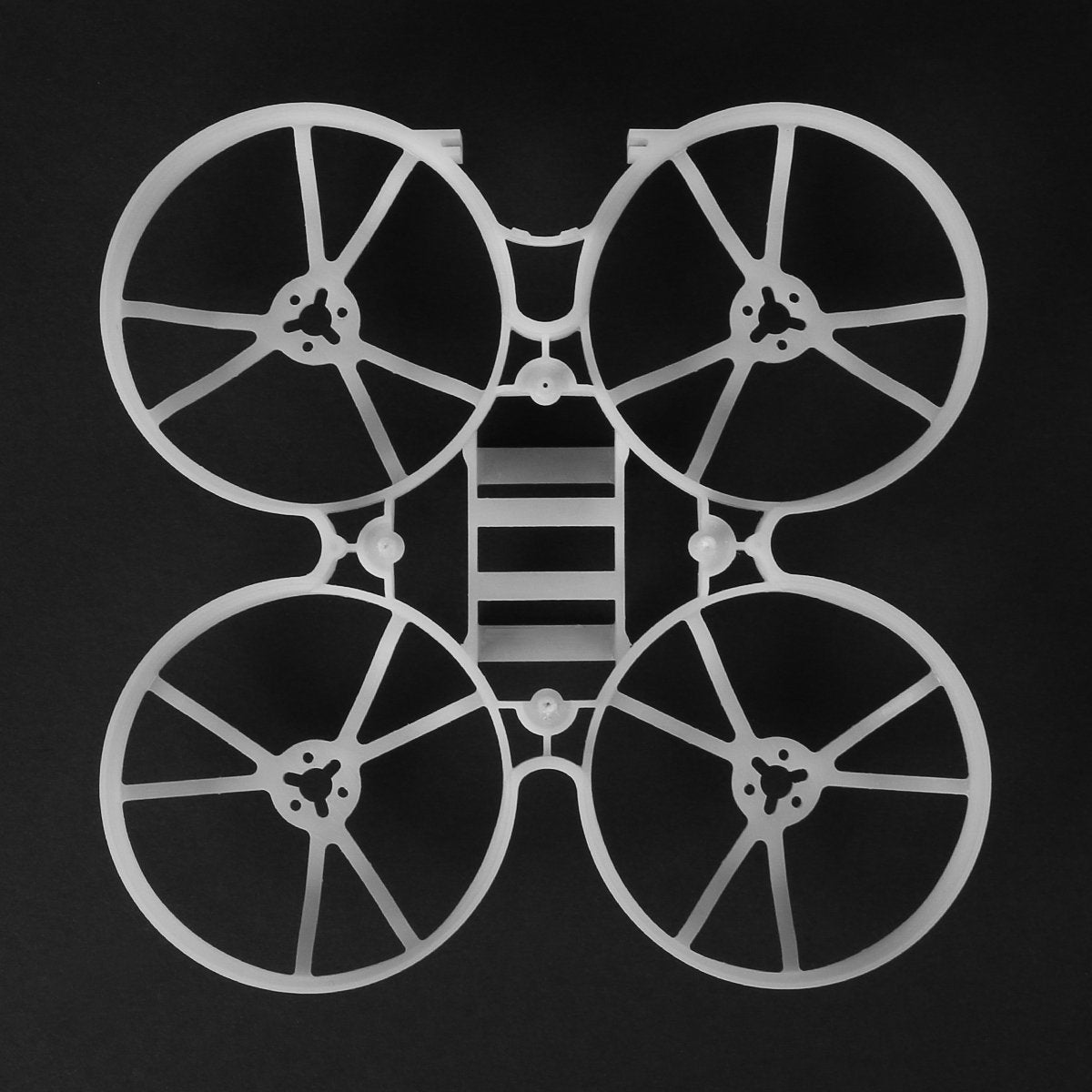

This Beta75 Pro 2 frame is customized for Beta75 Pro 2 whoop drone.
- Light enough: only weighs 5.5g.
- Battery slot is suitable for both 1S & 2S battery.
By default, with the help of foam adaptor, the battery slot is designed for 2pcs 300mAh Lipo HV 1S whoop style battery.
- Motor mounting holes fit multiple types of motors.
The motor mounting holes on the Beta75 Pro 2 frame are suitable for BETAFPV's 0802 / 0703 / 0603 brushless motors. Thus, the frame can be used on Pro2 Series drones and 1S Pro Series (65pro/75pro).
SPECIFICATION
- Material: Clear plastic
- Diagonal motor to motor distance: 75mm
- Motor mounting hole: for 0802 12000KV motors
- FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
- Battery slot size: 11.5x16mm, for BETAFPV 300mAh 1S battery
- Weight: 5.5g
RECOMMENDED PARTS
- Propellers: 40mm 4-blade propeller (1.0mm shaft hole)
- Motors: 0802 12000KV Motors
- Batteries: BETAFPV 300mah 1S battery 2 pcs
- FC & ESC: F4 2S AIO Flight Controller and ESC
PACKAGE
This plastic durable package can protect the package from deformation during the shipping process.
- 1 * Beta75 Pro 2 Whoop frame
