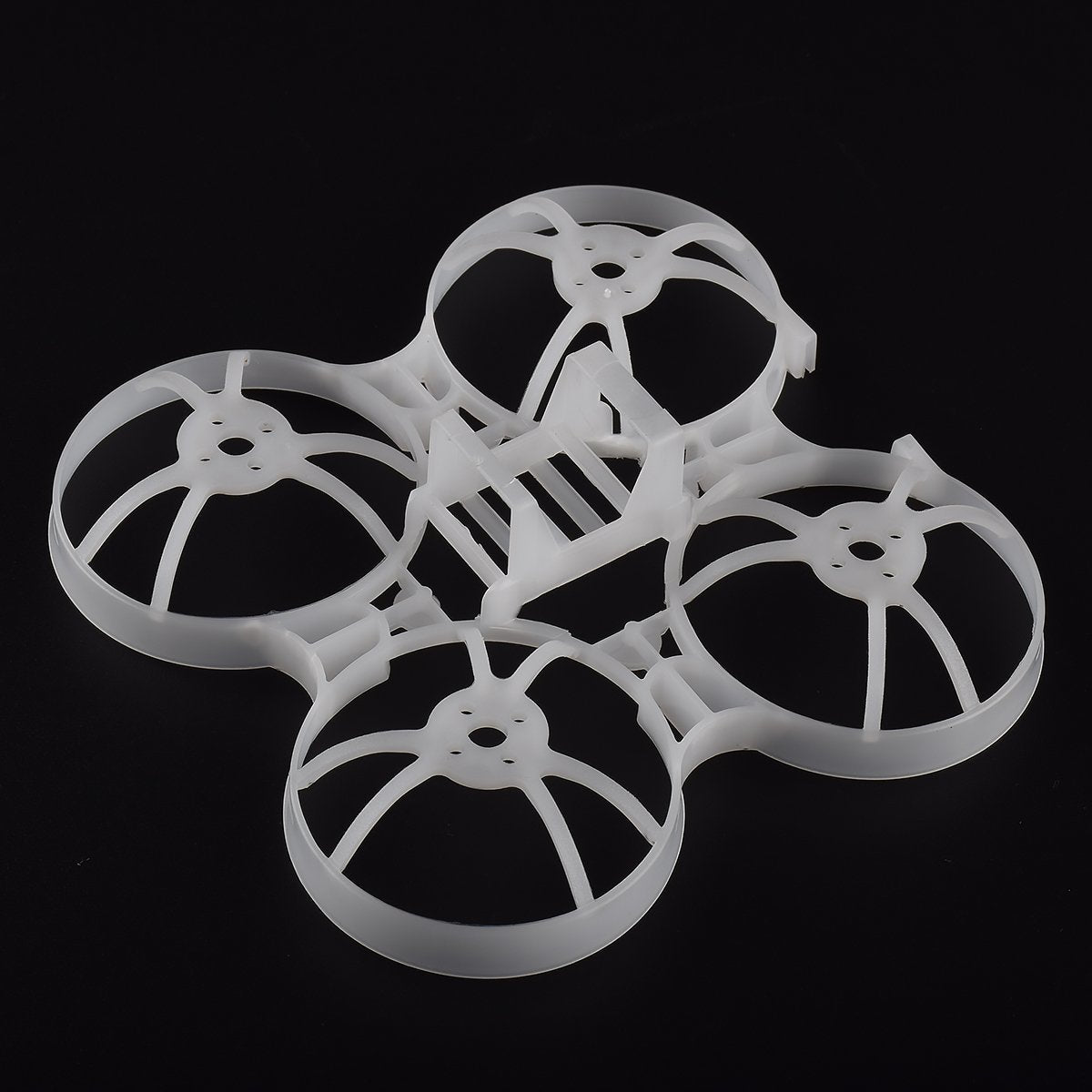

This Beta75X frame is customed for 75mm 2S whoop drone. This frame natively support 110x motors. Also it has a customed battery slot to support 2S battery. The FC mounting columns still match the whoop style FC boards. At the same time, we would like to keep it durable and light enough for a 2S whoop beast.
 SPECIFICATION
- Material: Clear plastic
- Diagonal motor to motor distance: 75mm
- Motor mounting hole: for 110x series motors
- FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
- Battery slot size: 11.5x16mm, for BETAFPV 300mAh battery
- Weight: 7.1g
BATTERY SLOT
In default, the battery slot is designed for 2S 300mAh battery. If already have many 1S whoop style batteries and want to use the them on the this frame, what shall we do? As show below, with the help of form adapter, 2pcs 300mAh Lipo HV 1S whoop style batteries are inserted in the slot suitably.
Don't forget to get a double PH-JST 2.0 connectors power cable here.
RECOMMENDED PARTS
- Propellers:Â 40mm 4-blade props (1.5mm shaft hole)
- Motors: 110x brushless motors, like 1103 11000KV motors
- Batteries:Â 300mAh 2S Lipo HV batteries
- FC & ESC:Â BETAFPV 2S Whoop FC stack

Â
PACKAGE
This plastic durable package can protect the package from deformation during the shipping process.
- 1 * Beta75X 2S Whoop frame
