BetaFPV 2004 3000kv Brushless Motors

BETAFPV 2004 series brushless motor is a smooth-running, powerful, and more controllable ultralight 4-6S motor, It is only 16.6g/pc. 2004 3000KV is specifically designed for the 3” ducted whoop, 4” drone and 5” light blade and low general AUW for 5”, and the 1700KV is the best choice for the 6S power system greatly suit for a 4-5inch quadcopter. We highly recommend pilots using 2004 motors with 35A AIO Brushless FC/ F405+35A ESC and 5025/5125 props to build your drones, It will bring you a strong power to fly more flexible and durable.

Bullet Point

• BETAFPV 2004 brushless motor is a completely new, innovative and unique design that delivers performance sincerely better than what's currently available. The motor delivers power in an entirely new way and will give you some of the SMOOTHEST FLIGHTS and FOOTAGE you've ever experienced!
• 3000KV is an ultralight 4S motor that is specifically designed for the 3” ducted whoop, 4” anything and Light Load 5” Drone, and 1700KV is the best choice to build a 6S drone. Both of them only weight 16.6g/pc.
• This newly designed motor provides more torque while providing it in a much smoother manner! The special design not only makes your motors look like "DUBS" on a car but also gives the drone amazing performance and flight feel.
• 2004 motors are perfectly suitable for the 4-5 inch drone, you will get strong power and stable flight. We highly recommend it for X-Knight5 Digital VTX, X-knight5 and TWIG ET5.

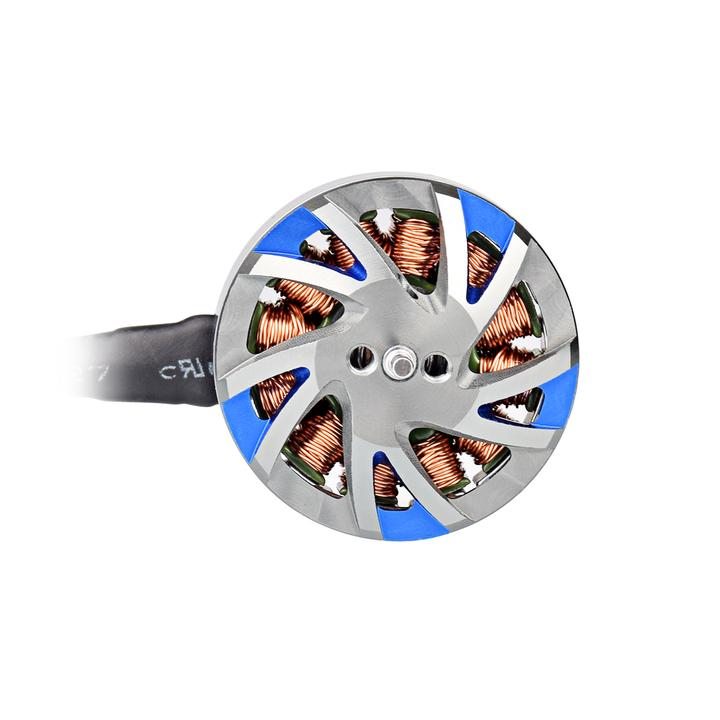

• Attractive appearance design, 2004 brushless motor is like a tire, perfectly matching its powerful characteristics. This unique design allows for great surface area heat dissipation and stays much cooler than other motors.
• 2004 Brushless motor special offered an Anti-drop design, which has a peg in the hole of the shaft, prevents the motor from coming off, brings a better flight experience. Meanwhile, pls noticed that a little loose after hit is a normal phenomenon.

Specification

• Item: 2004 brushless motor
• Motor KV (rpm/V): 3000KV 1700KV

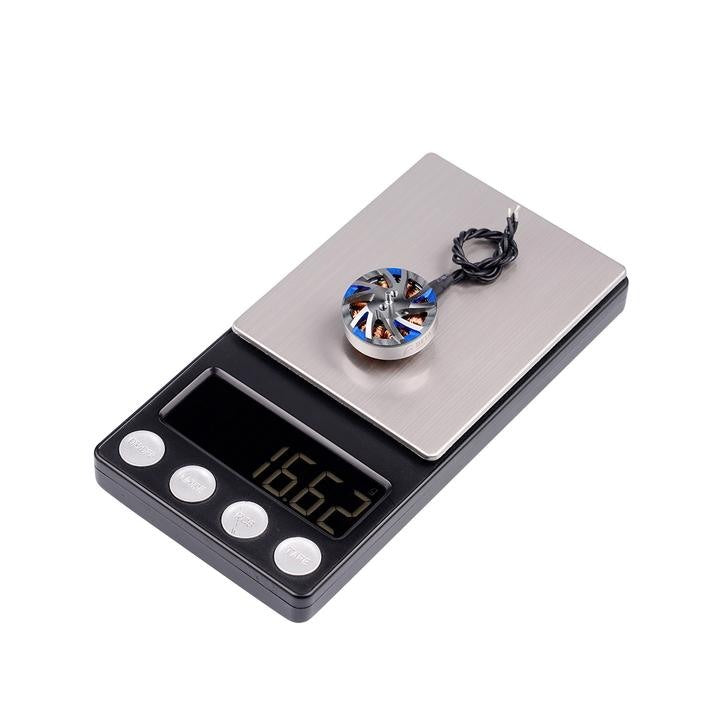

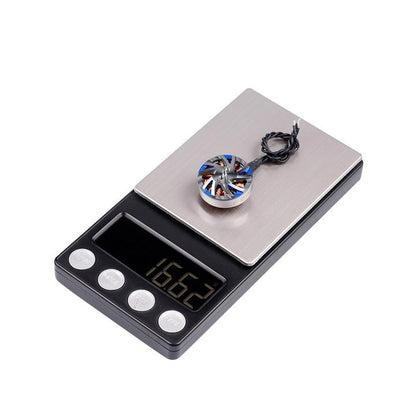

• Weight: 16.6g/1pc
• Color: Blue-Grey
• Shaft: φ1.5mm
• Shaft length: 3.8mm
• Shaft diameter: 1.5mm
• Hole distance: 12mm
• Motor Mount Holes: M2
• Input Voltage: 3000KV for 4S / 1700KV for 6S
• Cables: 100mm long, 24AWG cables
• Dimensions: 24.6*24.6*17.2mm

Recommended Parts for 2004 3000KV Motors

2004 3000KV is specifically designed for following drones.

• 3" Ducted Whoop
• 4" Everything
• 5" Lightweight Toothpick

We highly recommend it for X-Knight 4'' FPV and TWIG Mutant 4''.

• Flight Controller: F405 Flight Controller & 35A BLHeli_32 ESC and 35A AIO Brushless FC
• Compatible Propellers: Gemfan 5125 3-Blade props and Gemfan 5020 props
• Battery: 450mAh 4S battery and 850mAh 4S battery
• Frame: 4-5 inch Frame, highly recommend  TWIG ET5 5'' Toothpick Frame

Recommended Parts for 2004 1700KV Motors

The 1700KV is the best choice for the 6S power system greatly suit for a 4-5inch quadcopter.

• 4” Everything
• 5” Lightweight Toothpick

We highly recommend it for X-Knight5 Digital VTX, X-knight5 and TWIG ET5.

• Flight Controller: F405 Flight Controller & 35A BLHeli_32ESC and 35A AIO Brushless FC.
• Compatible Propellers: Gemfan 5125 3-Blade props and Gemfan 5020 props
• Battery: 550mAh 6S 75C battery
• Frame: 4-5 inch Frame, highly recommend  TWIG ET5 5'' Toothpick Frame

Meanwhile, we are using the 1700KV motor on X-Knight 5'' Digital VTX Toothpick Quad, it brings the drone insane flight power! For more details of 1700KV motor, pls check it here.

Package

• 1 or 4 * 2004 3000KV or 1700KV Brushless Motors
• 1 * Pack of M2 Screws
