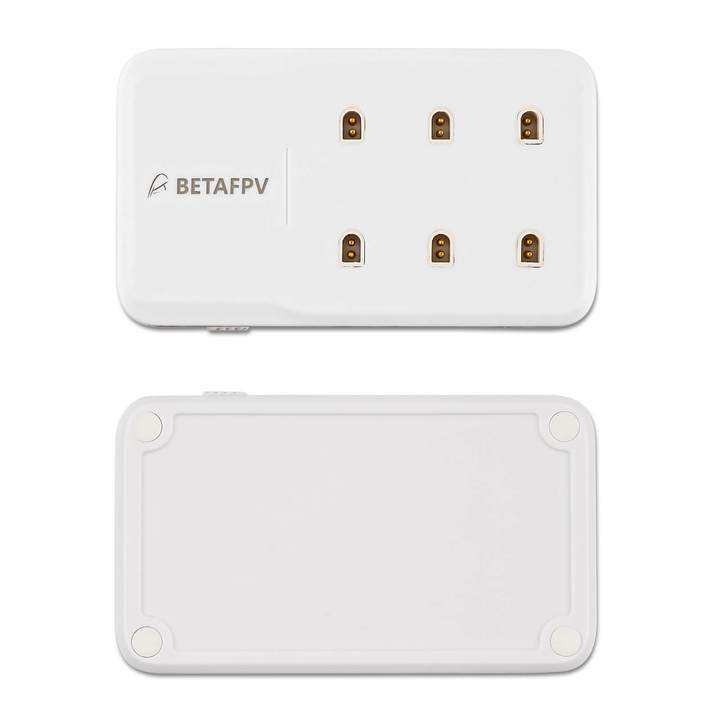

Betafpv 6 Ports 1S Battery Charger

This new 6 ports 1S battery charger supports PH2.0 and BT2.0 at the same time. Moreover, the charging is faster when using 30W adapter. Compact, fast-charging, and portable, choosing a 1S battery charger that best suits your needs will no longer be difficult with this 6 Ports 1S charger & adapter.

Bullet Point

• With BT2.0/PH2.0 two types of battery ports, the charger allows charging BT2.0 and PH2.0 battery at the same time.
• By supporting multi-charging protocols including PD3.0/QC3.0/BC1.2, every port's charging current can reach 1A, which makes charging faster.

SPECIFICATION

• Item: 6 Ports 1S Battery Charger & Adapter
• Input connector: Type-C
• Input voltage range: 5-12V
• Max input power: 30W
• Max input current: 2.5A
• Max charging current: 1A (Single-port)
• Support battery connector: BT2.0&PH2.0
• Charging protocol：PD3.0/QC3.0 (5V/9V/12V) /BC1.2
• Battery Type：LiHV 4.35V
• Dimensions：79*46*19mm

Support Fast Charge

When used with a compatible 30w usb charger fast charging is capable

The charging time would be longer with fast charge adapter with output power below 30W or a non-fast charger adapter (5V@2A) since each port can not reach 1A when 6 ports are charged simultaneously.

Button Function

The function of the button is to switch the charge voltage: 4.35V.

The new batches' switch left side changes the "4.2V" to "OFF". See in the picture above.

Indicator Light Status

Note: If the indicator light is off when there is no battery in the output port, indicating that this line is faulty and cannot be used.

FAQ

PACKAGE

• 1 * 6 Ports 1S Battery Charger
• 1 * User manual
