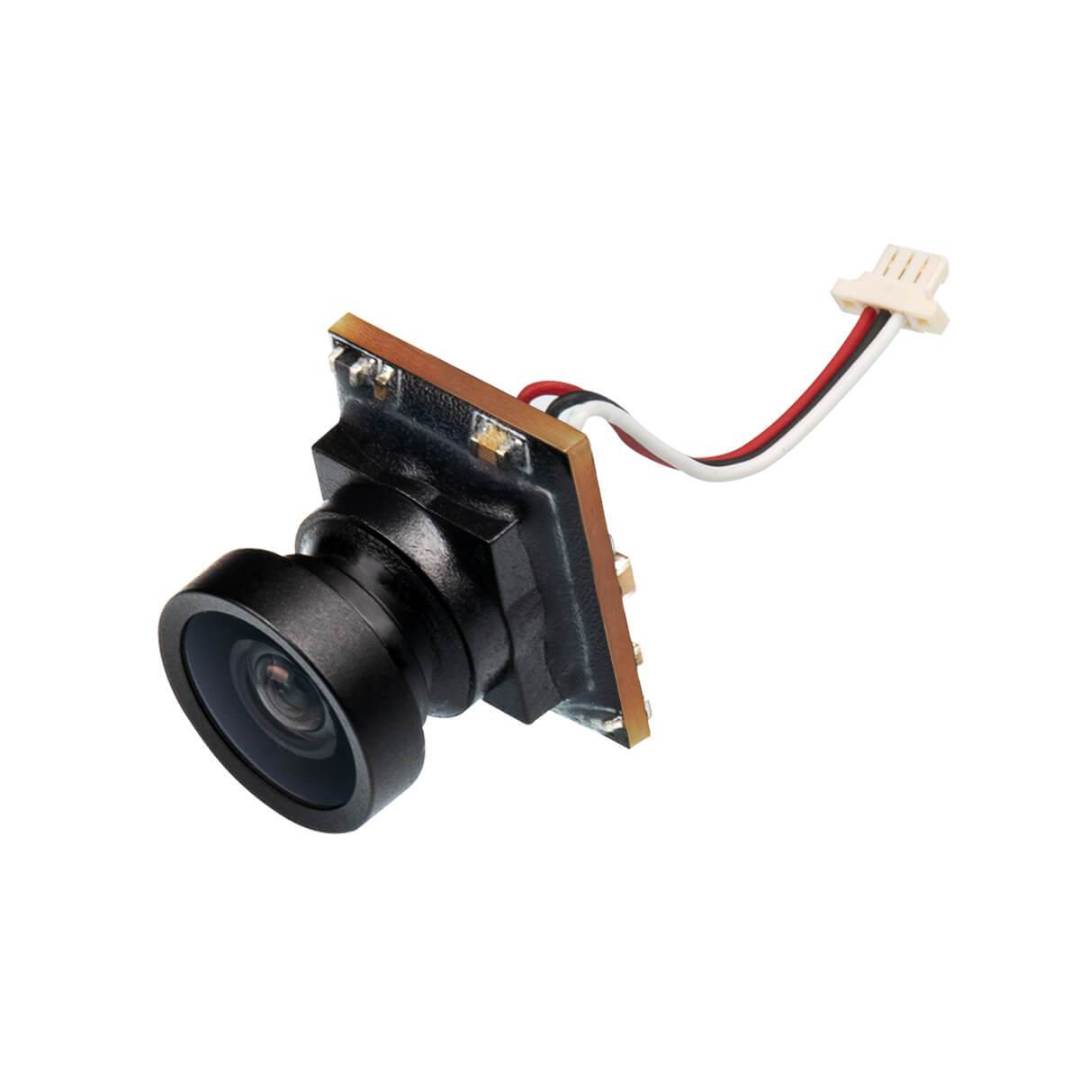

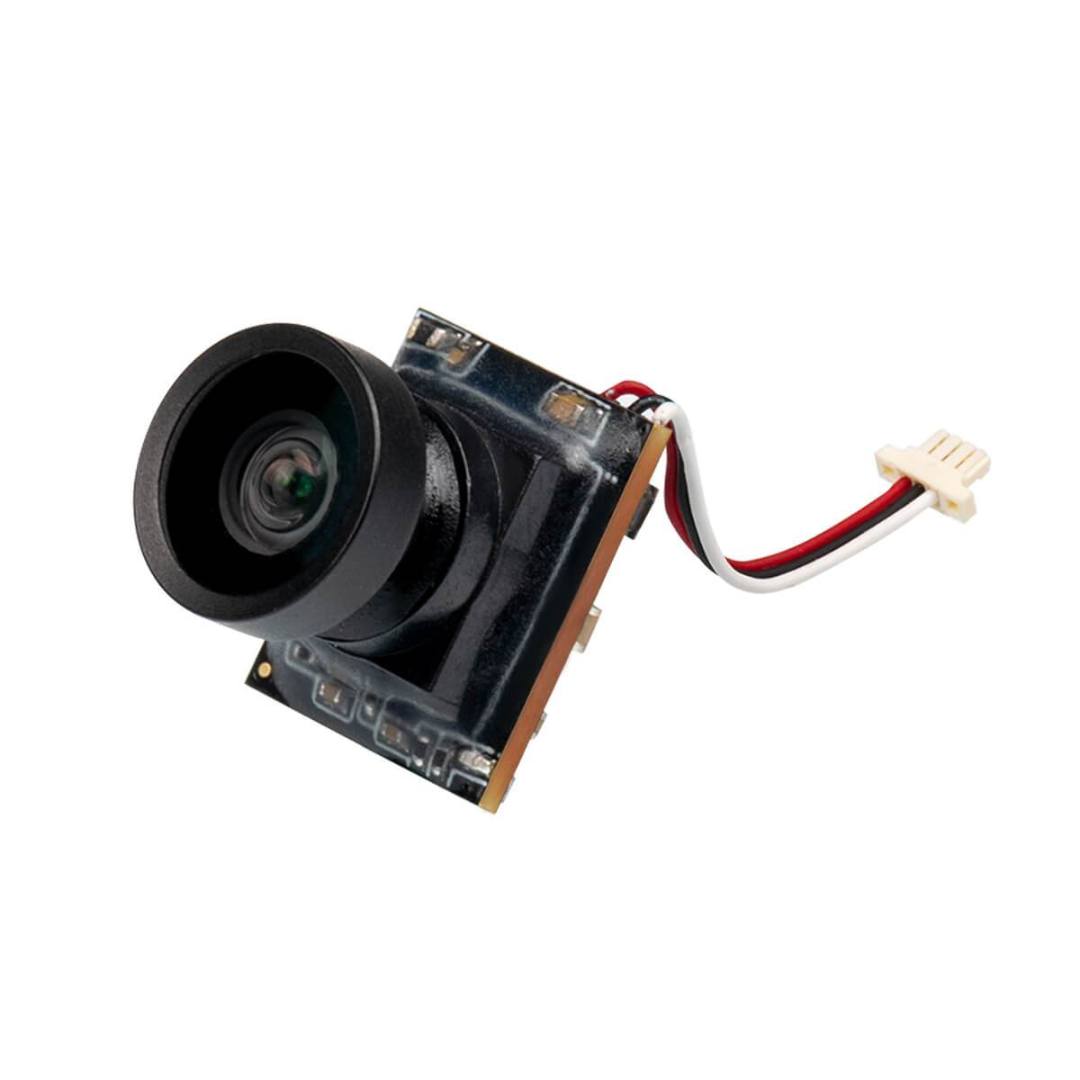

The C01 Pro Micro Camera is a rare FPV camera currently on the market, which adapted a 1/3'' CMOS sensor and a 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.96g. Designed specifically for those weight-sensitive drones, such as Brushed & Brushless Whoop Quad.
With such great design and unbeatable price, what are you waiting for? Bring it home to explore now!Â
Plug-N-PlayÂ
C01 Pro camera features a JST0.8 connector, plug-and-play design makes it easy to install without soldering. Suitable for BeeBrain flight controllers.
Bullet Points

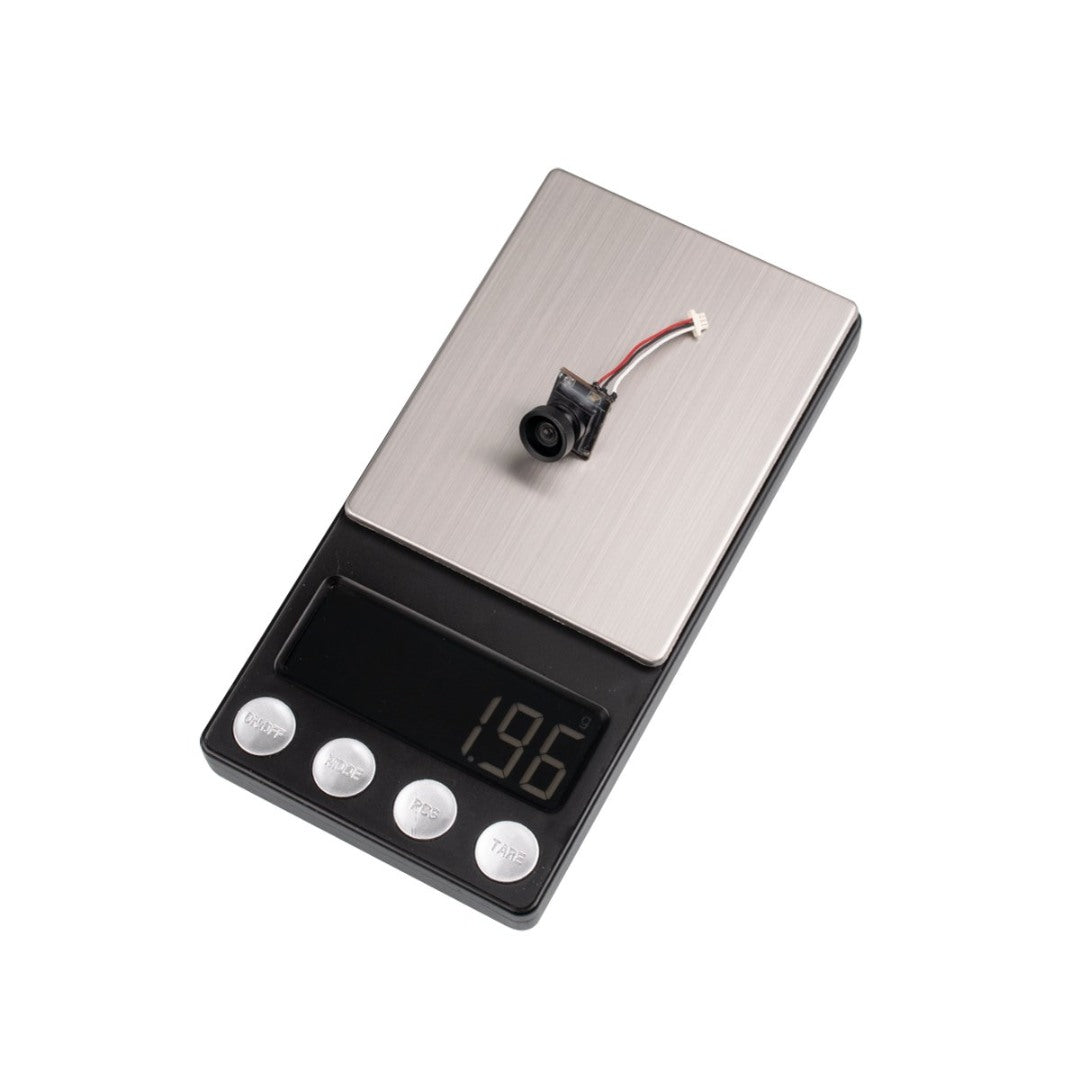

- Miniature, and lightweight design, weight at only 1.96g. Lightweight camera great for weight-sensitive drones, perfect for upgrading your Brushed & 1S Brushless Whoop Quad camera
- 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
- Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
- 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes

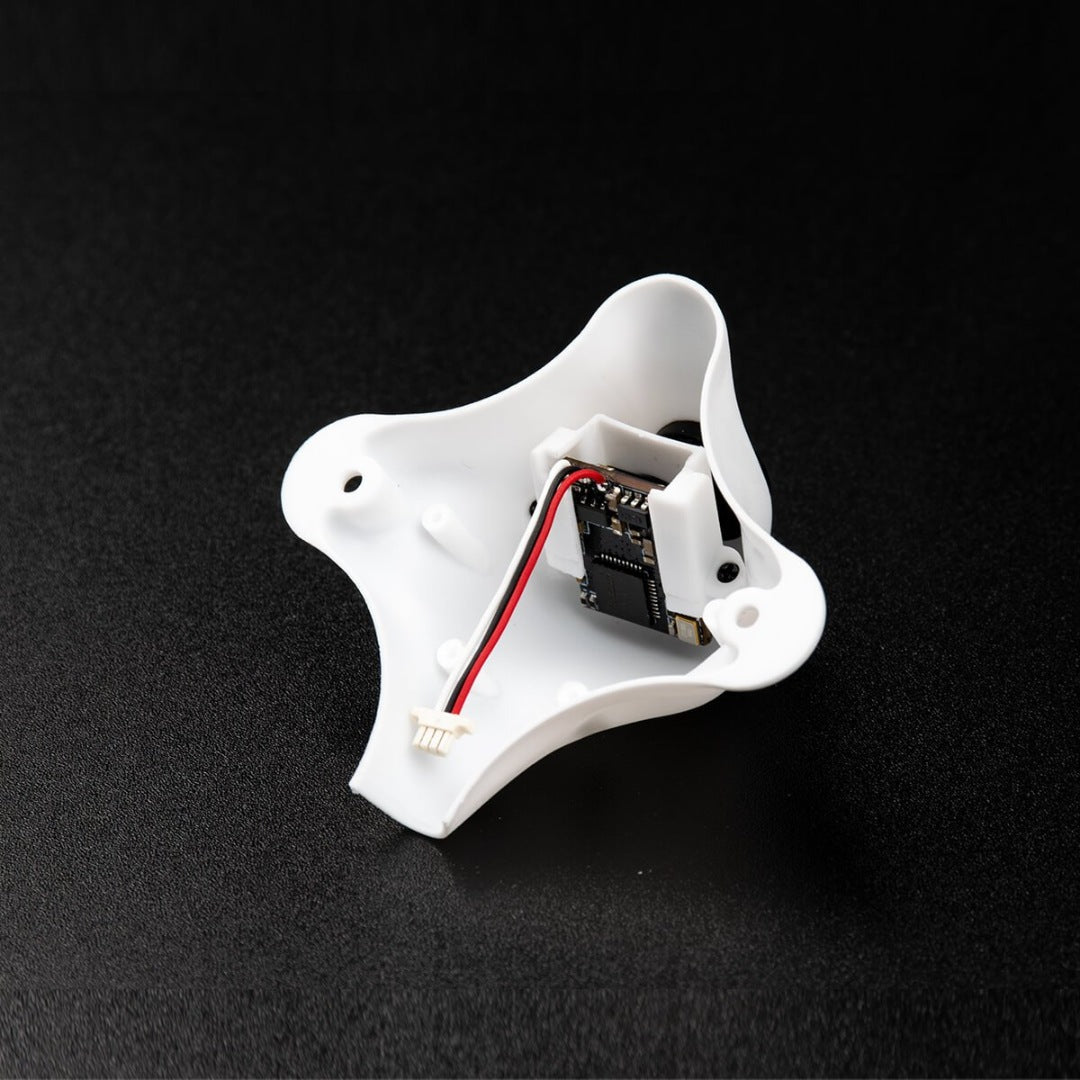

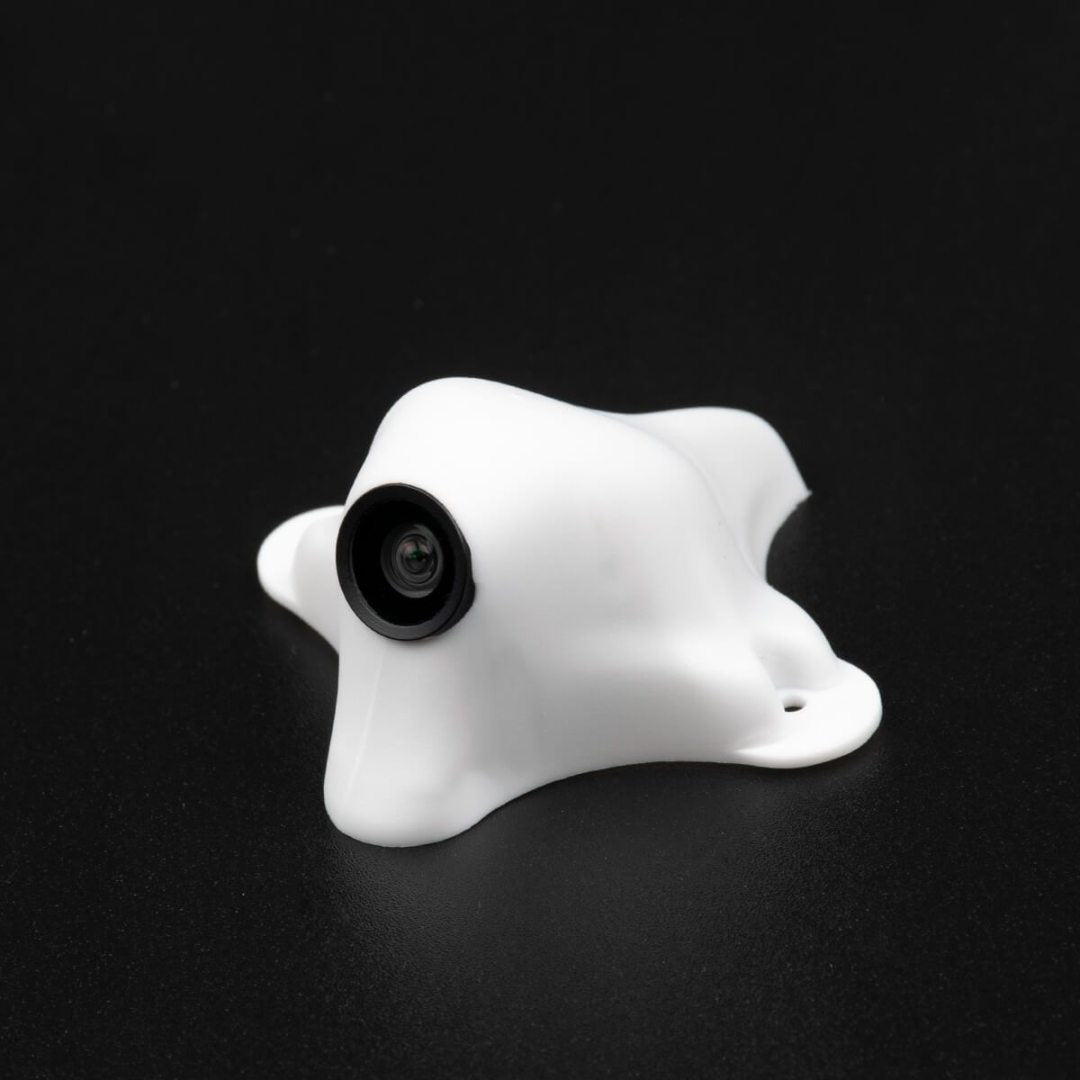

- The package comes with an injection molding canopy, more durable and weighs only 1.5g, which is the best combo with C01 Pro cam
Specification
- Image Sensor: 1/3" CMOS Sensor
- Horizontal: 1200TVL with Global WDR
- Signal System: NTSC
- Lens : 2.1mm(M8) FOV 160°
- S/N Ratio: >50db
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: 0.01Lux@1.2F
- D-WDR: Auto
- Day/Night: Color
- Power: DC 3.3-6V
- Current: 110mA@6V / 120mA@3.3V
- Housing Material: ABS
- Dimension: 12.1*14.5mm
- Net weight: 1.96g
Package
- 1 * C01 Pro FPV Micro Camera
- 1 * Injection Molded Canopy
- 1Â * 1/3'' Camera Mounting hardware
