BetaFPV Pavo20 Pro Brushless Whoop Quadcopter (BYO Video System)

Pavo20 Pro is an ideal choice for 2.2'' DJI O3 Cinewhoop under 150g, exclusively sculpted for Freestyle shooting. The LAVA Series 1104 | 7200KV Brushless Motors for maximum thrust and powered by our pioneering 2.2" Freestyle GF 2218 3-Blade Props co-developed with Gemfan. The aerodynamic frame design adds an 8-11% thrust boost, while the LAVA 3S 550mAh 75C Battery extends flight time to 6'40''. With new 2 camera fixed holes for DJI O3 camera wide-angle mode shooting, and the Pavo Series Classic Rubber Damper Design, ensure enough creative space for cinewhoop to explore and capture the most imaginative aerial feats, perfecting your freestyle shooting in the sky.

Features

• As a 2.2'' DJI O3 Cinewhoop under 150g, the pocket-size Pavo20 Pro is an ideal choice for DJI pilots to enter FPV.
• Harness the power of our specialised freestyle propulsion system, the GF 2218 3-Blade Props co-developed with Gemfan, coupled with the LAVA Series 1104 | 7200KV Brushless Motors, offer unparalleled max thrust for freestyle.
• Employing the principles of aerodynamics, the frame boosts an extra 8~11% thrust compared with without the whoop duct, coupled with LAVA 3S 550mAh 75C Battery, enabling up to 6'40'' flight time.
• Featured the Pavo Series' Classic Rubber Damper Design and enhanced antenna holder for stability. It now includes 2 new cam fixed holes for wide-angle mode shooting and required just 8 screws to set up the O3 Air Unit.
• The F4 2-3S 20A AIO FC V1 weighs only 5.92 grams and is optimised for HD digital VTX. Its improved computing power, high response speed, and stable flight make it an ideal choice for Freestyle.

HD Digital VTX System

Pavo20 Pro supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability. The Caddx Vista supports up to 720P with low latency and superior image quality performance. The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots. The customised HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

Propulsion System

It owns a propulsion system specially for Freestyle. Co-development with the Gemfan, the pioneering 2.2'' lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft). Featuring LAVA Series 1104 | 7200KV Brushless Motors and the LAVA 3S 550mAh 75C Battery we recommended, ensuring delivers a high PRM, max thrust, stable linear power like cheetah reflexes propulsion system. It achieves a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle up to 6'40'' flight time experience. All set on the exclusively sculpted for freestyle shooting Pavo20 Pro frame, which employs the principles of aerodynamics.

Pavo20 Pro Frame Kit

Pavo20 Pro Frame Kit, with a wheelbase of 93.7mm, is constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance, ensuring durability in demanding flight conditions. It employs the principles of aerodynamics, boosting an extra 8~11% thrust compared with without the whoop duct, and synergises flawlessly with an enhanced powerful propulsion system to deliver unparalleled thrust. An open-ended battery strap slot that accommodates 3S batteries while keeping side-limitation slots ensures stability.

Exclusively Sculpted for HD VTX

6 camera fixed holes, including 2 new cam fixed holes for the wide-angle mode shooting, minimising the cam side panel shadows for the wide-angle view. The cam side panel protects the lens from harm while allowing for easy vertical installation of ND filters. No more worries about angle deviations post-thrilling flights. The antenna Holder is tailored to the contours of the antenna's form and installation for a more convenient installation and stable holding. Experience the Pavo Series' Classic Rubber Damper Design, bidding farewell to "jello" in your footage and delivering a consistently smooth, HD image. The anti-vibration tips of the Pavo20 Pro are consistent with the Pavo Pico.

Moreover, the integrated injection moulding HD VTX mounting bracket boasts the utilisation of an insert copper nut, getting the frame together hassle-free in a snap with just only 8 screws, equipped with half-thread screws for eliminating the trouble of adjusting the tightness of the screws, which also enhances anti-vibration and ensuring stable and smooth HD images.

Flight Controller

Our F4 2-3S 20A AIO FC V1 features an ESC with a peak current of 25A, ensuring stable operation of the FC even in the event of motor stalling. The addition of a 9V 2A BEC power supply ensures the stable operation of the DJI O3 HD VTX when the battery voltage is low. It also includes a DJI O3 6-pin PMU allowing for connection to HD VTX without soldering. It integrates features such as a 16MB black box, with support for GPS, external receivers, and other devices. The redesigned solder pad layout and USB connector make installation and maintenance easier and more convenient.

Pavo Series COB LED Strip

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. It provides increased visibility and facilitates easy observation of the drone's flight by the pilots during nighttime or poorly lit conditions, which also enhances operational safety, It can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance. Choose from a single colour option of ice blue, white, green, or red, or even mix multiple colours to personalize and elevate your flying experience while ensuring safety.

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera is specifically designed for the Pavo20 Pro, Pavo25 V2, Pavo20 , Pavo35, and Pavo Pico Brushless Whoop Quadcopter. These ND filters only vertically install on the Pavo20 Pro. These ND filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.

Recommended parts

• FC&ESC: F4 2-3S 20A AIO FC V1
• Motor: LAVA Series 1104 | 7200KV Brushless Motors
• Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• Frame: Pavo20 Pro Brushless Whoop Frame
• Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery
• Filter: BETAFPV ND filter
• VTX: DJI O3, Caddx Vista, RunCam Link

Specifications

• Items:  Pavo20 Pro Brushless Whoop Quadcopter
• Wheelbase: 93.7mm

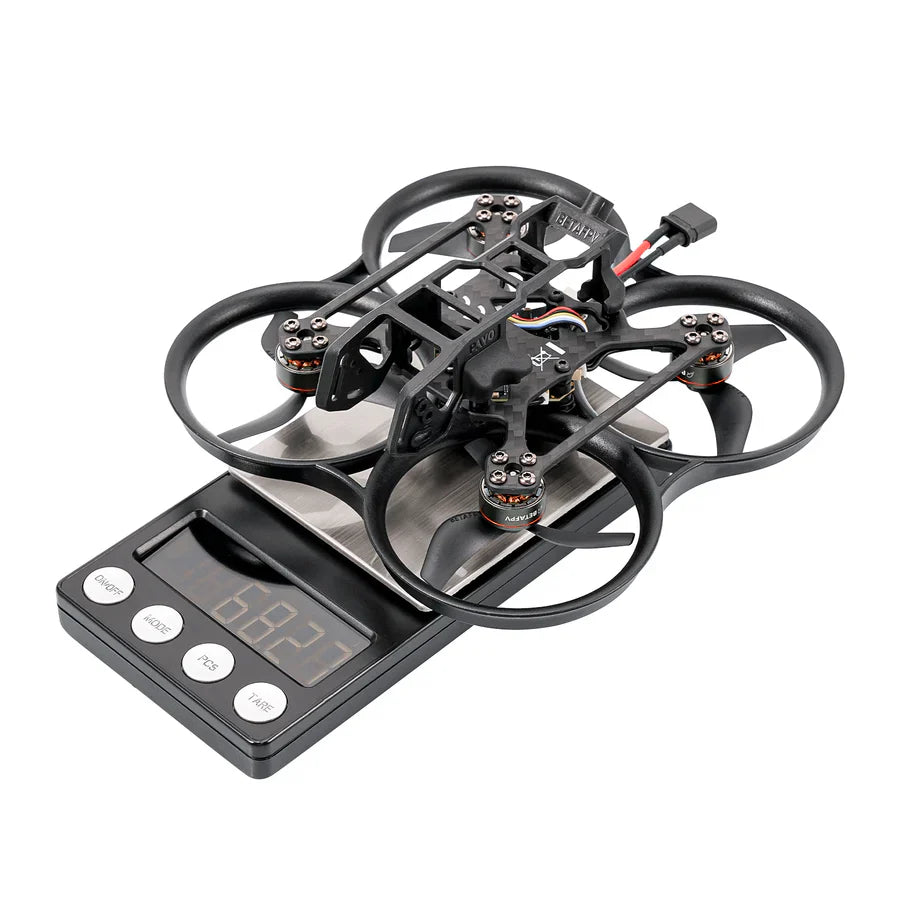

• Weight(Without Battery, Air Unit): 66.3g
• Support VTX: DJI O3 Air Unit, Caddx Vista Kit, RunCam Link
• Support Cam: DJI O3 Cam, Caddx Series, RunCam Series 19mm/20mm
• Camera Filter Installation: Vertical
• Battery Connector: XT30
• Battery Slot: 20mm*Unlimited Height
• Recommend Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery, 3S 650mAh Battery
• FC: F4 2-3S 20A AIO FC V1
• Motor: LAVA Series 1104 | 7200KV Brushless Motors
• Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• Flight Time: 6'40'' (LAVA Series 3S 550mAh Battery)
• RX Version: ELRS, TBS

Includes

• 1 x Pavo20 Pro Brushless Whoop Quadcopter
• 1 x Pavo20 Pro HD VTX Bracket
• 1 x HD VTX Bracket Screw Package
• 1 x Pavo Series COB LED Strip Accessory Kit (Ice Blue)
• 4 x Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• 1 x PCBA | Type-C Adapter Board
• 1 x 4Pin Adapter Cable
